10192-62-8

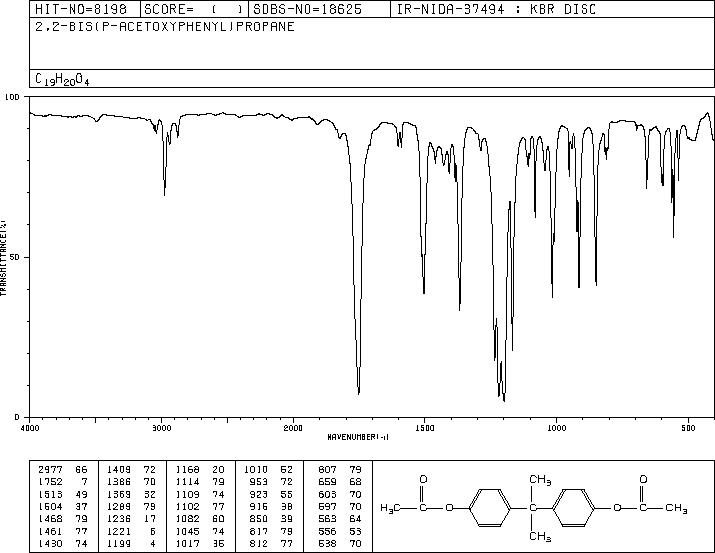

BISPHENOL A DIACETATE(10192-62-8) IR1

Product NameBISPHENOL A DIACETATE

CAS 10192-62-8

Molecular FormulaC19H20O4

Molecular Weight312.36

InChIInChI=1S/C19H20O4/c1-13(20)22-17-9-5-15(6-10-17)19(3,4)16-7-11-18(12-8-16)23-14(2)21/h5-12H,1-4H3

InChIKey NSNHONPMCQYMNT-UHFFFAOYSA-N

SmilesC(C1=CC=C(OC(=O)C)C=C1)(C1=CC=C(OC(=O)C)C=C1)(C)C

Request For Quotation

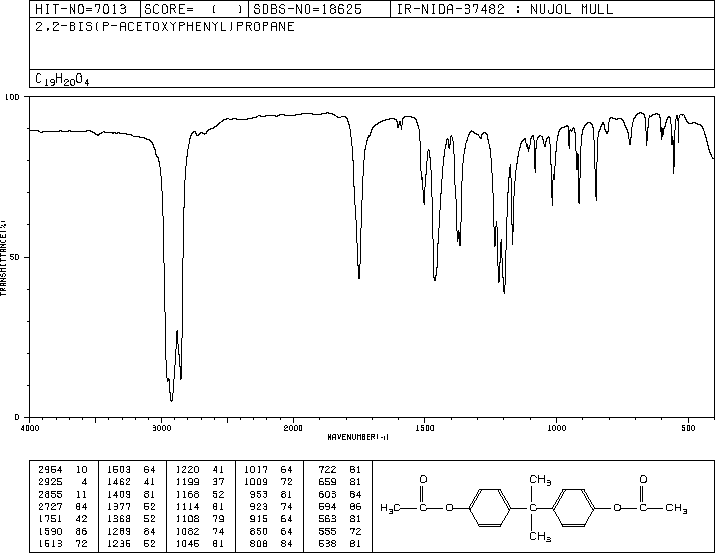

BISPHENOL A DIACETATE(10192-62-8) IR1

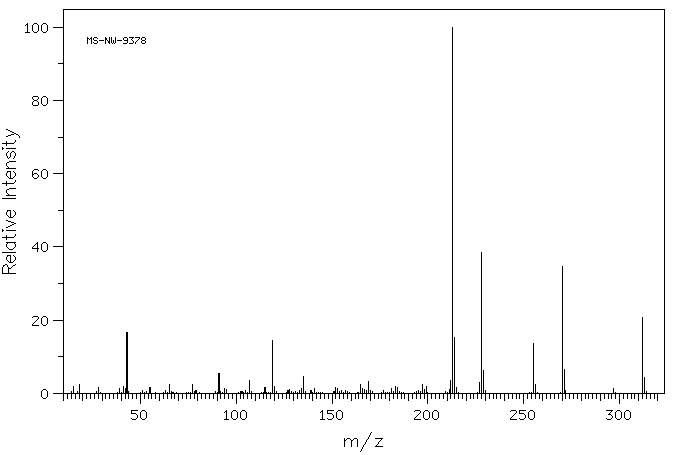

Mass

MS-NW-9378
2,2-bis(p-acetoxyphenyl)propane
C19H20O4            (Mass of molecular ion:    312)

   Source Temperature: 210 °C
   Sample Temperature: 120 °C
   Direct, 75 eV

      15.0       1.8
      18.0       2.4
      28.0       1.5
      39.0       1.4
      41.0       1.9
      42.0       1.2
      43.0      16.5
      55.0       1.6
      65.0       2.4
      77.0       2.3
      91.0       5.5
      94.0       1.2
      95.0       1.0
     107.0       3.4
     115.0       1.7
     119.0      14.4
     120.0       2.0
     128.0       1.1
     134.0       1.3
     135.0       4.5
     141.0       1.3
     152.0       1.5
     153.0       1.3
     165.0       2.4
     166.0       1.3
     167.0       1.0
     169.0       3.3
     181.0       1.2
     183.0       2.0
     184.0       1.7
     197.0       2.3
     198.0       1.1
     199.0       1.9
     211.0       1.1
     212.0       3.6
     213.0     100.0
     214.0      15.3
     215.0       1.5
     227.0       2.9
     228.0      38.6
     229.0       6.3
     255.0      13.7
     256.0       2.5
     270.0      34.7
     271.0       6.4
     297.0       1.3
     312.0      20.8
     313.0       4.4

400 MHz in CDCl3

BISPHENOL A DIACETATE(10192-62-8) IR1

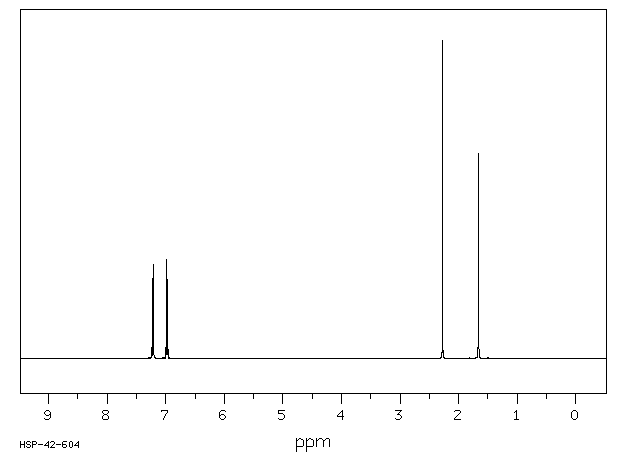

¹H NMR	399.65 MHz
C₁₉ H₂₀ O₄	0.038 g : 0.5 ml CDCl₃
2,2-bis(p-acetoxyphenyl)propane

    Assign.     Shift(ppm)

      A             7.220
      B             6.980
      C             2.273
      D             1.660

     Hz     ppm     Int.

   2893.31   7.240     27
   2890.38   7.233    250
   2888.18   7.227     82
   2883.67   7.216     90
   2881.59   7.211    295
   2878.66   7.203     37
   2796.39   6.998     36
   2793.46   6.990    311
   2791.38   6.985     90
   2786.87   6.974     82
   2784.79   6.969    249
   2781.74   6.961     29
    911.62   2.282     30
    908.45   2.274   1000
    904.91   2.265     25
    663.45   1.661    646

in CDCl3
