1,1,3,3-Tetramethoxypropane(102-52-3) 1H NMR
Product Name1,1,3,3-Tetramethoxypropane
CAS102-52-3
Molecular FormulaC7H16O4
Molecular Weight164.2
InChIInChI=1S/C7H16O4/c1-8-6(9-2)5-7(10-3)11-4/h6-7H,5H2,1-4H3
InChIKey XHTYQFMRBQUCPX-UHFFFAOYSA-N
SmilesC(OC)(OC)CC(OC)OC
-

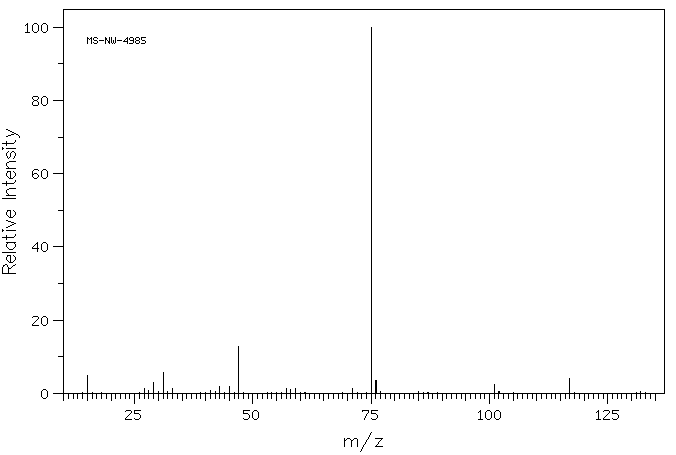

MassMS-NW-4985 1,1,3,3-tetramethoxypropane C7H16O4 (Mass of molecular ion: 164)
Source Temperature: 250 °C Sample Temperature: 180 °C Reservoir, 75 eV
15.0 4.9 27.0 1.4 29.0 3.0 31.0 5.7 33.0 1.2 43.0 1.8 45.0 1.8 47.0 12.7 57.0 1.2 58.0 1.1 59.0 1.4 71.0 1.2 75.0 100.0 76.0 3.5 101.0 2.3 117.0 4.0
90 MHz in CDCl3
-

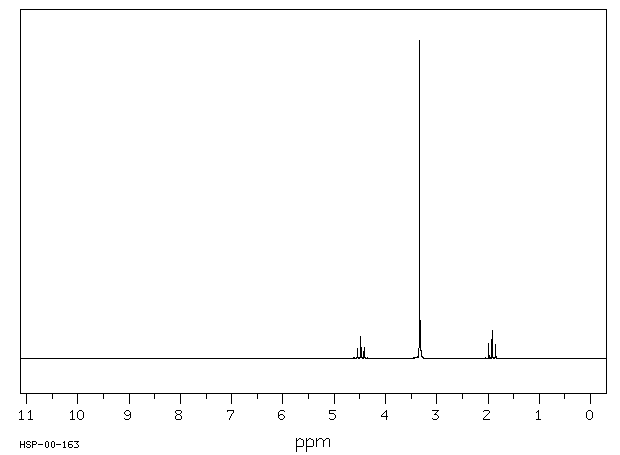

1H NMR 89.56 MHz C7 H16 O4 0.04 ml : 0.5 ml CDCl3 1,1,3,3-tetramethoxypropane
Assign. Shift(ppm)
A 1.919 B 3.335 C 4.481
Hz ppm Int.407.25 4.548 31 401.38 4.482 69 395.50 4.417 34 298.69 3.336 1000 296.50 3.311 34 177.88 1.987 47 172.00 1.921 89 166.06 1.855 44
in CDCl3

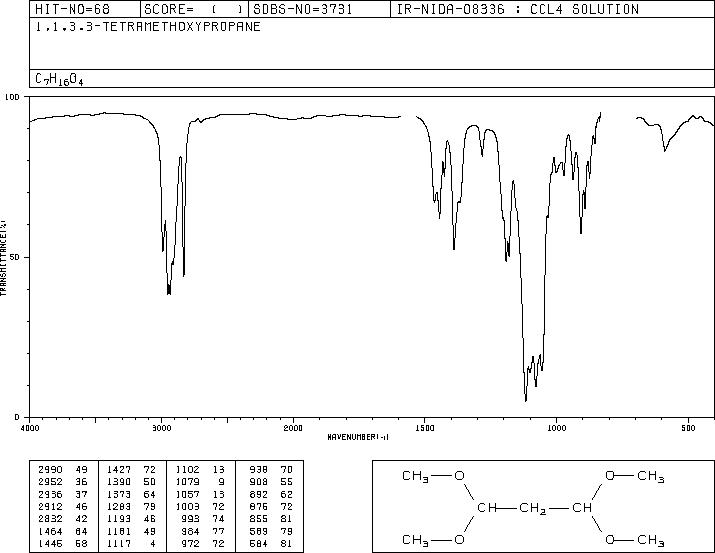

CCl4 solution
liquid film

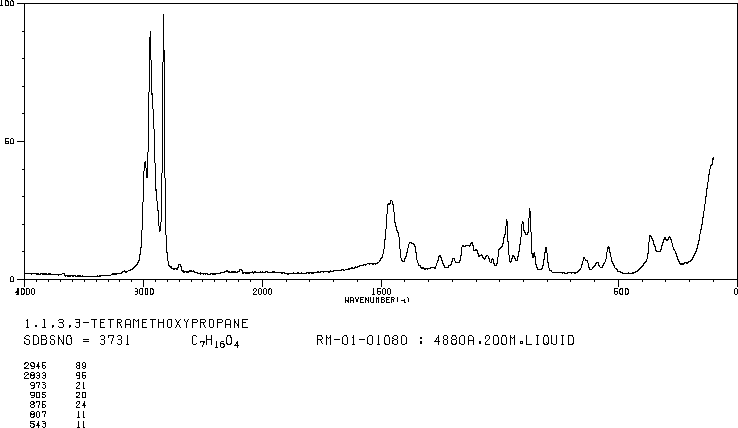

4880 A,200 M,liquid
