102-71-6

Triethanolamine(102-71-6) Raman

Product NameTriethanolamine

CAS 102-71-6

Molecular FormulaC6H15NO3

Molecular Weight149.19

InChIInChI=1S/C6H15NO3/c8-4-1-7(2-5-9)3-6-10/h8-10H,1-6H2

InChIKey GSEJCLTVZPLZKY-UHFFFAOYSA-N

SmilesN(CCO)(CCO)CCO

Request For Quotation

Triethanolamine(102-71-6) Raman

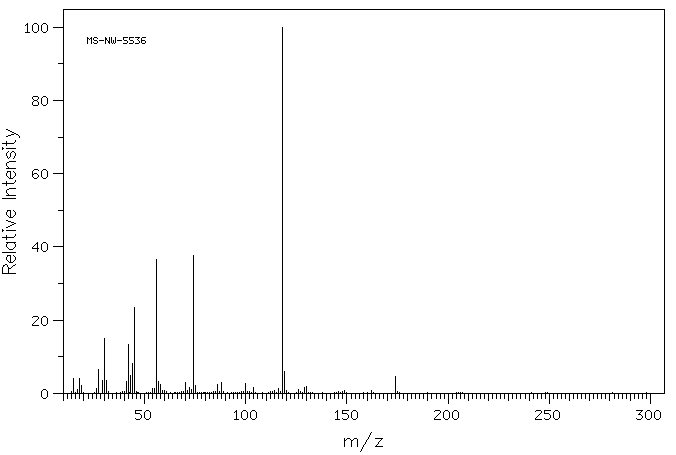

Mass

MS-NW-5536
2,2',2''-nitrilotriethanol
C6H15NO3            (Mass of molecular ion:    149)

   Source Temperature: 260 °C
   Sample Temperature: 190 °C
   Reservoir, 75 eV

      15.0       4.0
      17.0       1.0
      18.0       4.0
      19.0       2.2
      26.0       1.2
      27.0       6.4
      29.0       3.4
      30.0      15.0
      31.0       3.5
      41.0       3.3
      42.0      13.4
      43.0       4.9
      44.0       8.2
      45.0      23.4
      54.0       1.3
      55.0       1.4
      56.0      36.5
      57.0       3.2
      58.0       2.5
      70.0       2.9
      72.0       1.5
      73.0       1.1
      74.0      37.6
      75.0       2.2
      86.0       2.4
      88.0       2.9
     100.0       2.8
     104.0       1.5
     116.0       1.4
     118.0     100.0
     119.0       6.1
     126.0       1.0
     129.0       1.6
     130.0       2.0
     174.0       4.6

90 MHz in CDCl3

in CDCl3

Triethanolamine(102-71-6) Raman

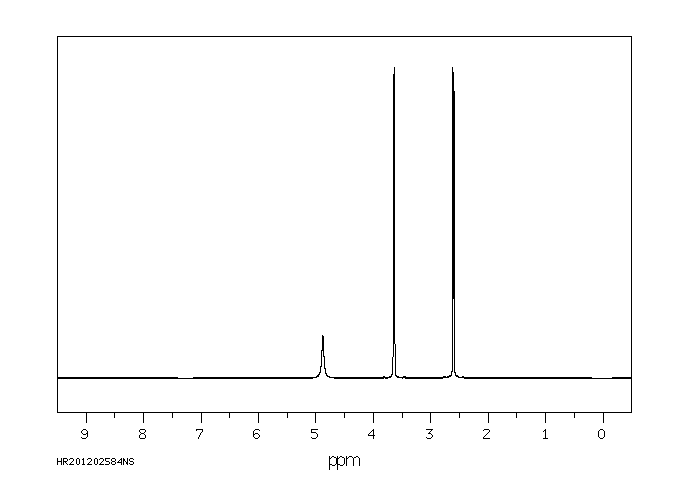

¹H NMR	89.56 MHz
C₆ H₁₅ N O₃	0.04 ml : 0.5 ml CDCl₃
2,2',2''-nitrilotriethanol

    Assign.     Shift(ppm)

      A             4.6
      B             3.617
      C             2.603

     Hz     ppm     Int.

    410.56   4.585    122
    329.38   3.678    759
    327.38   3.656    337
    324.69   3.626    984
    323.44   3.612    744
    321.38   3.589    400
    319.63   3.569   1000
    312.63   3.491     46
    310.81   3.471     35
    249.13   2.782     38
    248.75   2.778     38
    248.19   2.772     36
    247.31   2.762     35
    245.88   2.746     40
    243.88   2.724     57
    242.44   2.708     60
    237.75   2.655    936
    235.94   2.635    387
    233.94   2.613    660
    232.69   2.599    951
    230.06   2.569    348
    228.00   2.546    752
