Product Name3-Diethylaminopropylamine
CAS104-78-9
Molecular FormulaC7H18N2
Molecular Weight130.23
InChIInChI=1S/C7H18N2/c1-3-9(4-2)7-5-6-8/h3-8H2,1-2H3
InChIKey QOHMWDJIBGVPIF-UHFFFAOYSA-N
SmilesC(N(CC)CC)CCN

Mass

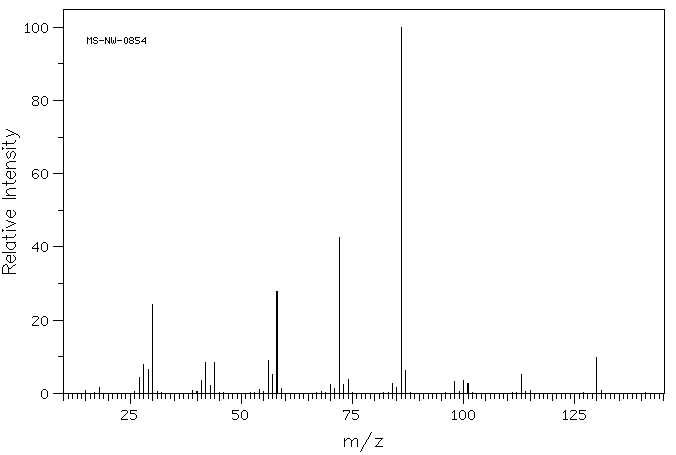

MS-NW-0854 N,N-diethyltrimethylenediamine C7H18N2 (Mass of molecular ion: 130)
Source Temperature: 280 °C Sample Temperature: 150 °C Reservoir, 75 eV
18.0 1.5
27.0 4.4
28.0 7.9
29.0 6.6
30.0 24.4
41.0 3.5
42.0 8.4
43.0 2.2
44.0 8.5
54.0 1.0
56.0 8.9
57.0 5.2
58.0 27.7
59.0 1.3
70.0 2.3
71.0 1.3
72.0 42.6
73.0 2.4
74.0 3.9
84.0 2.8
85.0 1.5
86.0 100.0
87.0 6.3
98.0 3.3
100.0 3.5
101.0 2.6
113.0 5.2
130.0 9.8
90 MHz in CDCl3

| 1H NMR | 89.56 MHz |
| C7 H18 N2 | 0.04 ml : 0.5 ml CDCl3 |
| N,N-diethyltrimethylenediamine | |
![]() |
Assign. Shift(ppm) |
Hz ppm Int.
251.31 2.807 98
244.50 2.731 231
237.69 2.654 140
236.38 2.640 131
235.88 2.634 116
228.88 2.556 516
221.69 2.476 616
220.19 2.459 88
219.31 2.449 91
214.44 2.395 278
157.06 1.754 35
156.06 1.743 35
150.88 1.685 35
150.00 1.675 78
149.06 1.665 80
144.44 1.613 41
142.25 1.589 103
135.75 1.516 64
134.94 1.507 81
132.06 1.475 258
129.00 1.441 39
128.00 1.430 31
98.19 1.097 489
91.19 1.019 1000
83.94 0.938 380
in CDCl3

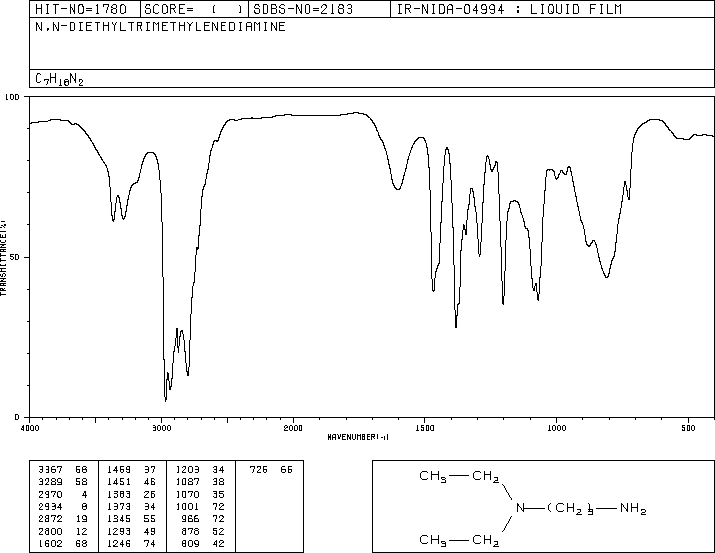

liquid film

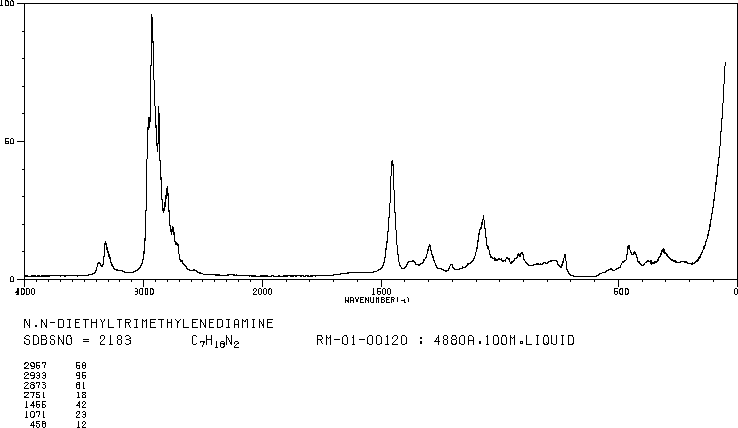

4880 A,100M,liquid

3-Diethylaminopropylamine(104-78-9) 1H NMR Atlas of Related Products
