N,N'-BIS(3-AMINOPROPYL)ETHYLENEDIAMINE(10563-26-5) Raman
Product NameN,N'-BIS(3-AMINOPROPYL)ETHYLENEDIAMINE
CAS10563-26-5
Molecular FormulaC8H22N4
Molecular Weight174.29
InChIInChI=1S/C8H22N4/c9-3-1-6-12(8-5-11)7-2-4-10/h1-11H2
InChIKey XBVKJTPKQHUYHI-UHFFFAOYSA-N
SmilesC(N(CCCN)CCCN)CN
-
MassMS-NW-8368 N,N'-bis(3-aminopropyl)ethylenediamine C8H22N4 (Mass of molecular ion: 174)
Source Temperature: 250 °C Sample Temperature: 130 °C Reservoir, 75 eV
17.0 2.5 18.0 10.6 27.0 1.3 28.0 5.9 29.0 2.0 30.0 22.3 31.0 1.1 41.0 5.3 42.0 6.8 43.0 4.7 44.0 100.0 45.0 4.3 55.0 1.3 56.0 6.6 57.0 7.6 58.0 9.0 68.0 1.0 69.0 1.0 70.0 5.5 71.0 7.4 72.0 1.2 75.0 1.5 77.0 3.1 81.0 2.0 84.0 2.2 85.0 2.0 87.0 30.6 88.0 2.8 98.0 1.1 99.0 1.5 100.0 3.1 111.0 1.0 112.0 1.4 113.0 1.2
in CDCl3

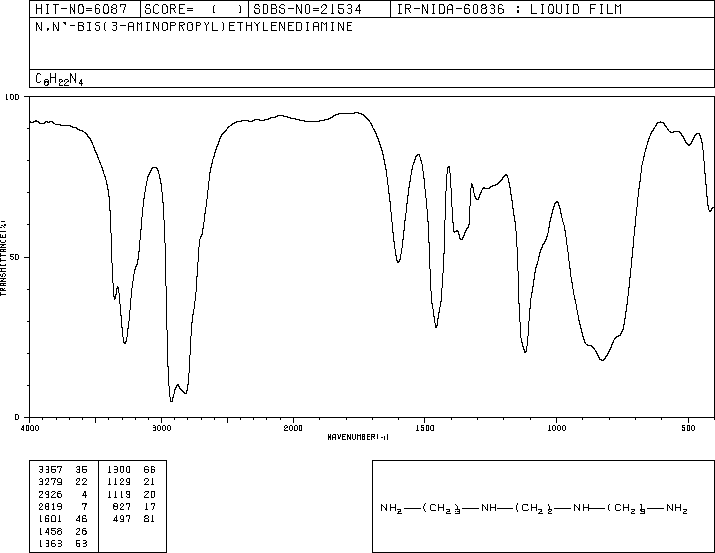

liquid film

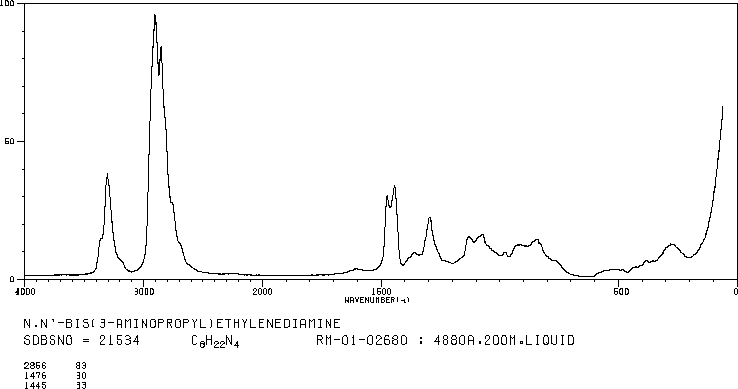

4880 A,200 M,liquid
