Dimethyl succinate(106-65-0) Raman
Product NameDimethyl succinate
CAS106-65-0
Molecular FormulaC6H10O4
Molecular Weight146.14
InChIInChI=1S/C6H10O4/c1-9-5(7)3-4-6(8)10-2/h3-4H2,1-2H3
InChIKey MUXOBHXGJLMRAB-UHFFFAOYSA-N
SmilesC(OC)(=O)CCC(OC)=O
-

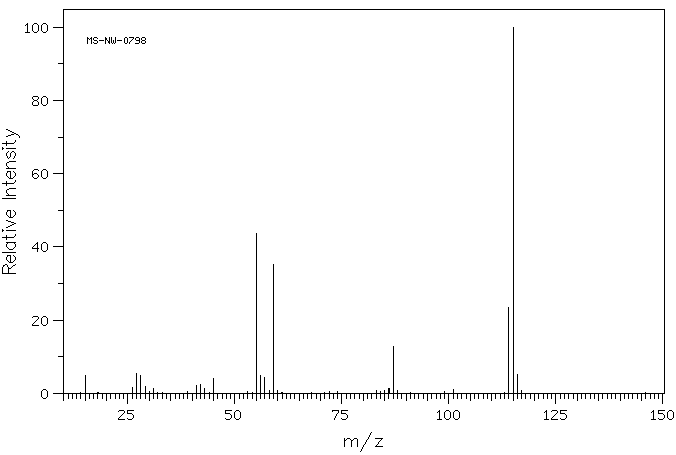

MassMS-NW-0798 dimethyl succinate C6H10O4 (Mass of molecular ion: 146)
Source Temperature: 220 °C Sample Temperature: 150 °C Reservoir, 75 eV
15.0 4.9 26.0 1.5 27.0 5.5 28.0 4.9 29.0 2.0 31.0 1.3 41.0 2.2 42.0 2.3 43.0 1.2 45.0 4.1 55.0 43.8 56.0 5.0 57.0 4.4 59.0 35.2 86.0 1.2 87.0 12.7 101.0 1.0 114.0 23.4 115.0 100.0 116.0 5.1
parameter in CDCl3
-

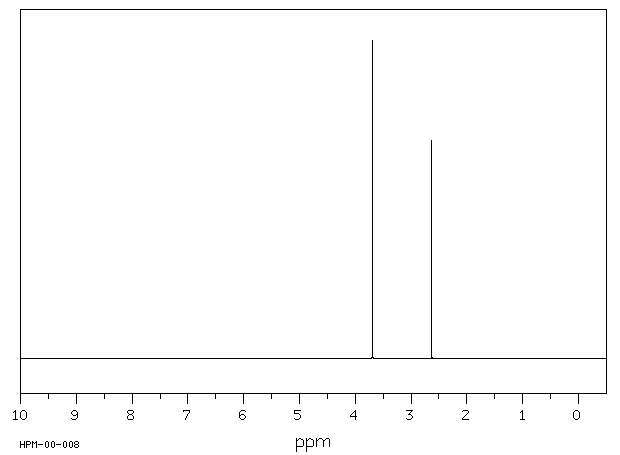

1H NMR 300 MHz C6 H10 O4 9.9 mol% in CDCl3 dimethyl succinate
Parameter ppm Hz
D(A) 3.694 D(B) 2.635
Hz ppm Int.1108.20 3.694 1000 790.50 2.635 667

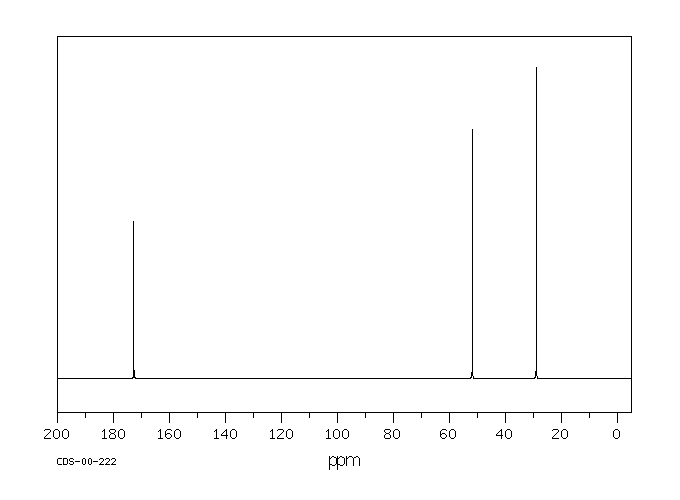

in CDCl3

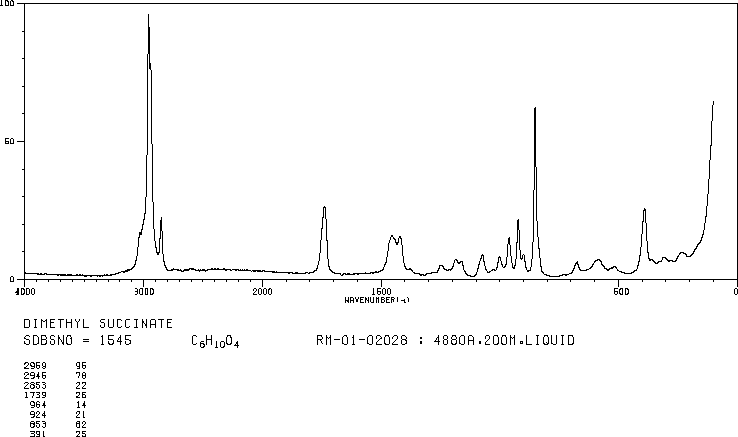

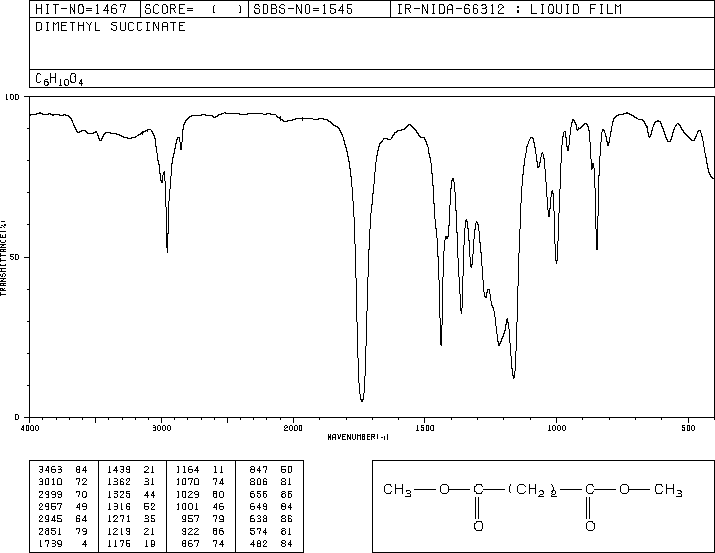

liquid film
4880 A,200 M,liquid
