Vinyl acetate(108-05-4) Raman
Product NameVinyl acetate
CAS108-05-4
Molecular FormulaC4H6O2
Molecular Weight86.09
InChIInChI=1S/C4H6O2/c1-3-6-4(2)5/h3H,1H2,2H3
InChIKey XTXRWKRVRITETP-UHFFFAOYSA-N
SmilesC(OC=C)(=O)C
-

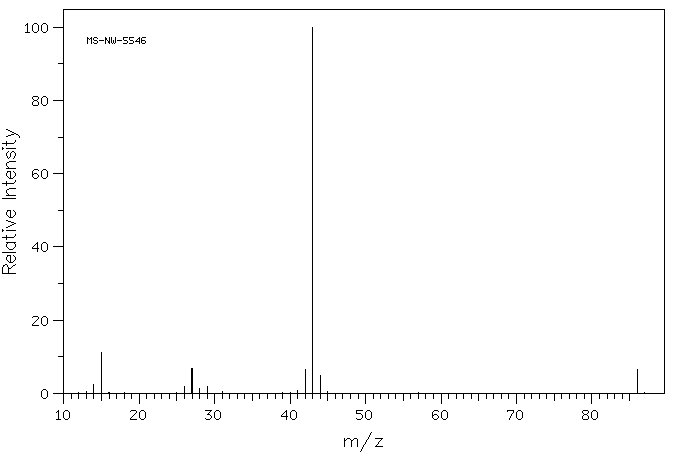

MassMS-NW-5546 vinyl acetate C4H6O2 (Mass of molecular ion: 86)
Source Temperature: 240 °C Sample Temperature: 190 °C Reservoir, 75 eV
14.0 2.5 15.0 11.1 26.0 2.0 27.0 6.8 28.0 1.2 29.0 2.0 42.0 6.4 43.0 100.0 44.0 4.9 86.0 6.6
parameter in CDCl3
-

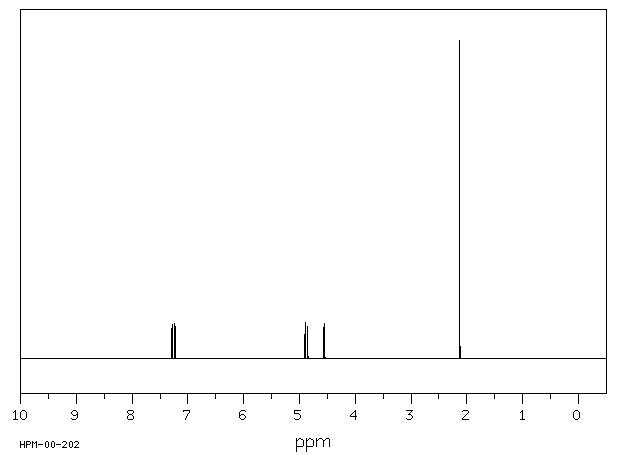

1H NMR 300 MHz C4 H6 O2 20 wt% in CDCl3 vinyl acetate
Parameter ppm Hz
D(A) 4.56 D(B) 4.88 D(C) 7.28 J(A,B) -1.57 J(A,C) 6.33 J(B,C) 14.12 D(D) 2.13 BRUEGEL,W. HANDBOOK OF NMR SPECTRAL PARAMETERS 40.2.3.1
Hz ppm Int.2194.29 7.314 81 2188.01 7.293 83 2180.19 7.267 85 2173.92 7.246 86 1471.80 4.906 88 1470.25 4.901 91 1457.65 4.859 85 1456.15 4.854 88 1371.91 4.573 91 1370.41 4.568 88 1365.58 4.552 90 1364.09 4.547 87 638.99 2.130 1000
in CDCl3

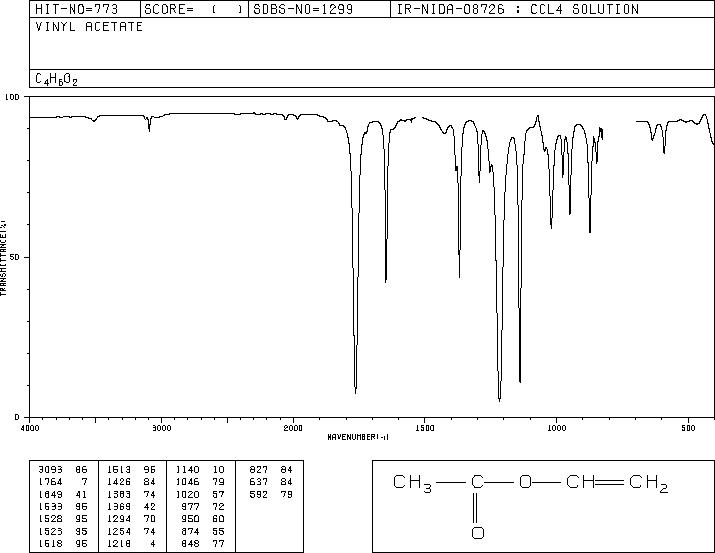

CCl4 solution
liquid film

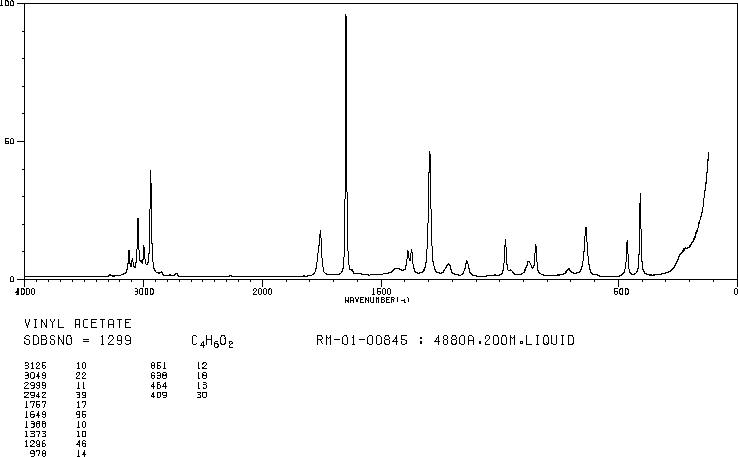

4880 A,200 M,liquid
