Butylamine(109-73-9) Raman
Product NameButylamine
CAS109-73-9
Molecular FormulaC4H11N
Molecular Weight73.14
InChIInChI=1S/C4H11N/c1-2-3-4-5/h2-5H2,1H3
InChIKey HQABUPZFAYXKJW-UHFFFAOYSA-N
SmilesC(N)CCC
-

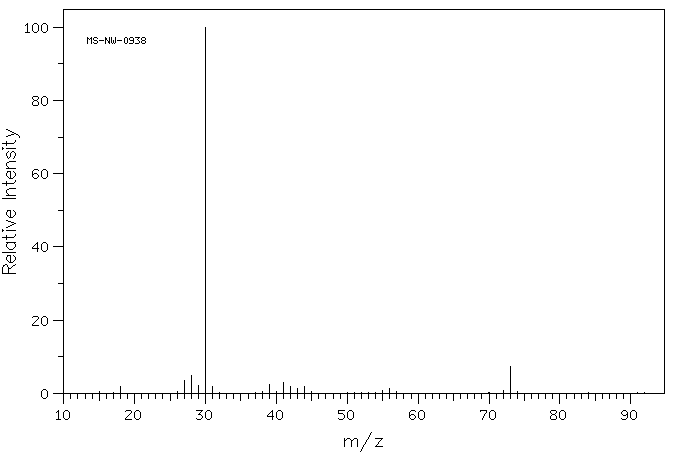

MassMS-NW-0938 butylamine C4H11N (Mass of molecular ion: 73)
Source Temperature: 280 °C Sample Temperature: 150 °C Reservoir, 75 eV
18.0 1.9 27.0 3.5 28.0 4.8 29.0 2.1 30.0 100.0 31.0 1.8 39.0 2.3 41.0 3.1 42.0 1.9 43.0 1.2 44.0 1.9 56.0 1.2 73.0 7.3
90 MHz in CDCl3
-

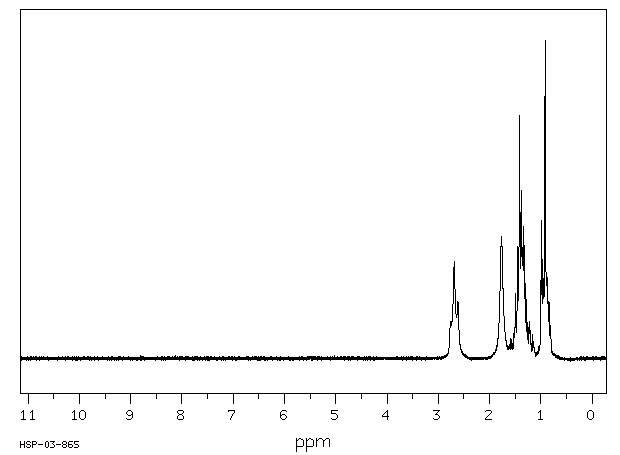

1H NMR 89.56 MHz C4 H11 N 0.04 ml : 0.5 ml CDCl3 butylamine
Assign. Shift(ppm)
A 2.680 B 1.77 C 1.43 D 1.33 E 0.92
Hz ppm Int.247.44 2.763 117 247.31 2.762 117 246.00 2.747 109 245.50 2.742 111 240.88 2.690 305 236.75 2.644 131 234.44 2.618 179 158.38 1.769 385 141.75 1.583 64 136.56 1.525 80 135.19 1.510 89 133.50 1.491 206 130.19 1.454 353 128.25 1.433 298 127.38 1.423 403 126.31 1.411 764 122.94 1.373 529 121.81 1.361 340 120.75 1.349 349 119.38 1.333 414 117.25 1.310 241 115.06 1.285 186 112.50 1.257 112 110.31 1.232 98 109.38 1.222 118 108.38 1.211 88 103.56 1.157 75 89.50 1.000 246 88.44 0.988 433 87.81 0.981 378 86.44 0.966 199 85.25 0.952 252 83.94 0.938 241 82.13 0.918 1000 79.06 0.883 266 77.50 0.866 186 76.13 0.851 180 74.69 0.834 177 72.69 0.812 103 72.13 0.806 99
in CDCl3
CCl4 solution
liquid film

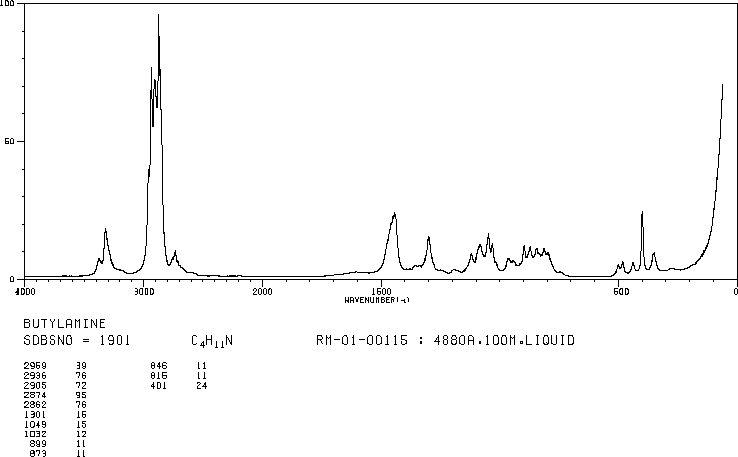

4880 A,100M,liquid
