Tetramethyl-1,3-diaminopropane(110-95-2) 1H NMR
Product NameTetramethyl-1,3-diaminopropane
CAS110-95-2
Molecular FormulaC7H18N2
Molecular Weight130.23
InChIInChI=1S/C7H18N2/c1-8(2)6-5-7-9(3)4/h5-7H2,1-4H3
InChIKey DMQSHEKGGUOYJS-UHFFFAOYSA-N
SmilesC(N(C)C)CCN(C)C
-

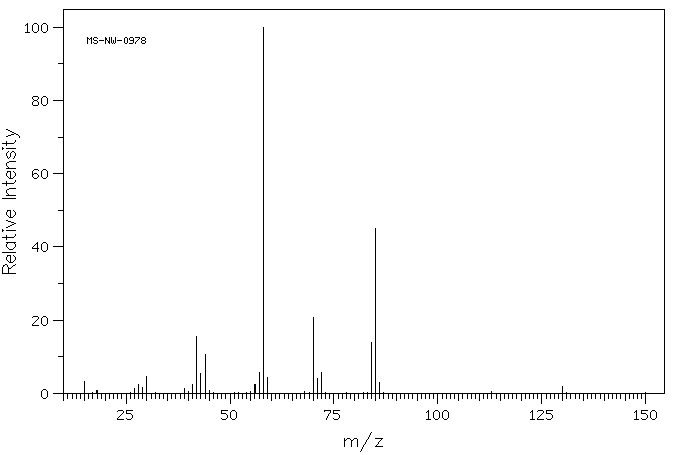

MassMS-NW-0978 N,N,N',N'-tetramethyltrimethylenediamine C7H18N2 (Mass of molecular ion: 130)
Source Temperature: 280 °C Sample Temperature: 150 °C Reservoir, 75 eV
15.0 3.2 27.0 1.3 28.0 2.3 29.0 1.5 30.0 4.7 39.0 1.2 41.0 2.5 42.0 15.4 43.0 5.4 44.0 10.6 56.0 2.5 57.0 5.6 58.0 100.0 59.0 4.4 70.0 20.6 71.0 4.1 72.0 5.8 84.0 13.8 85.0 45.1 86.0 3.0 130.0 1.8

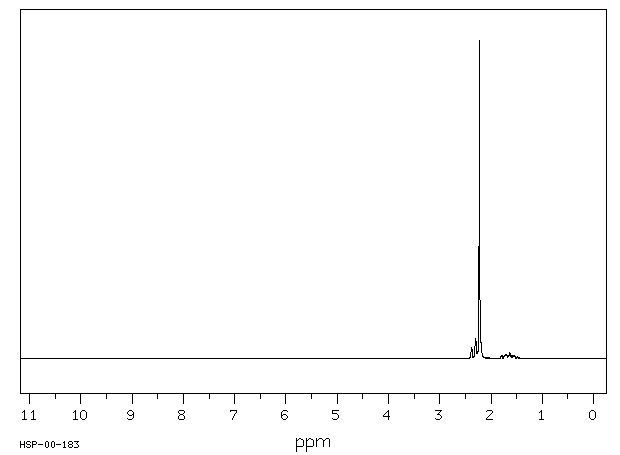

90 MHz in CDCl3
-
1H NMR 89.56 MHz C7 H18 N2 0.04 ml : 0.5 ml CDCl3 N,N,N',N'-tetramethyltrimethylenediamine
Assign. Shift(ppm)
A 2.30 B 2.222 C 1.64
Hz ppm Int.213.19 2.381 35 212.19 2.370 31 205.81 2.299 63 202.75 2.264 22 201.50 2.250 23 199.00 2.222 1000
in CDCl3
liquid film

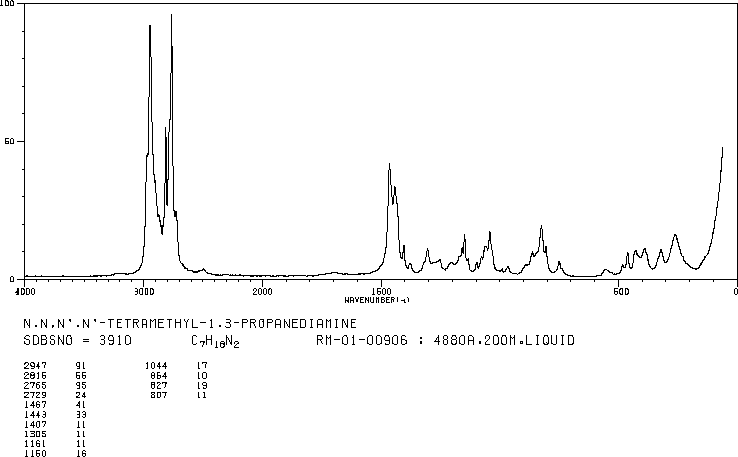

4880 A,200 M,liquid
