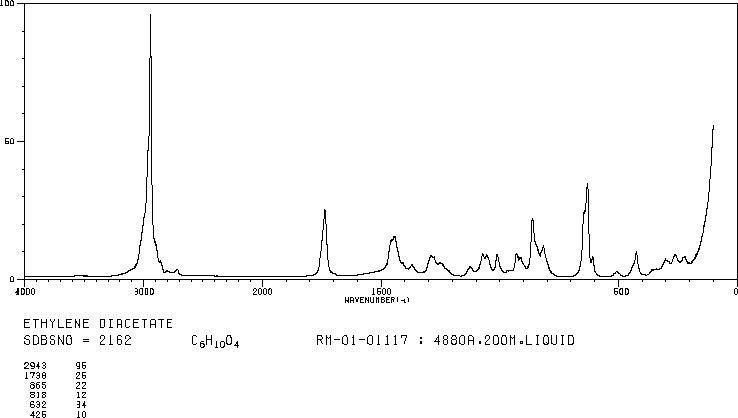

Ethylene glycol diacetate(111-55-7) Raman
Product NameEthylene glycol diacetate
CAS111-55-7
Molecular FormulaC6H10O4
Molecular Weight146.14
InChIInChI=1S/C6H10O4/c1-5(7)9-3-4-10-6(2)8/h3-4H2,1-2H3
InChIKey JTXMVXSTHSMVQF-UHFFFAOYSA-N
SmilesC(OC(=O)C)COC(=O)C
-

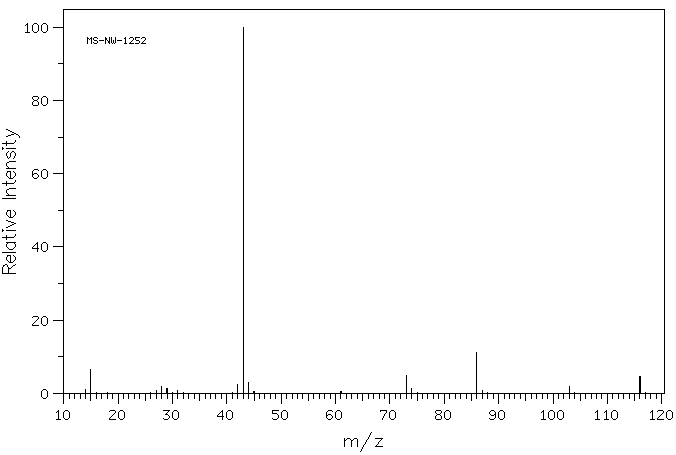

MassMS-NW-1252 ethylene diacetate C6H10O4 (Mass of molecular ion: 146)
Source Temperature: 260 °C Sample Temperature: 180 °C Reservoir, 75 eV
14.0 1.0 15.0 6.6 28.0 1.8 29.0 1.2 42.0 2.4 43.0 100.0 44.0 3.0 73.0 4.8 74.0 1.4 86.0 11.1 103.0 2.0 116.0 4.7
parameter in CDCl3
-

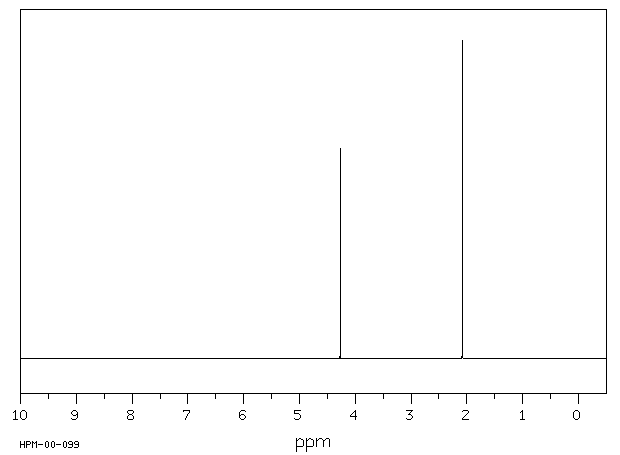

1H NMR 300 MHz C6 H10 O4 0.04 ml : 0.5 ml CDCl3 ethylene diacetate
Parameter ppm Hz
D(A) 4.273 D(B) 2.087
Hz ppm Int.1281.90 4.273 667 626.11 2.087 1000
in CDCl3

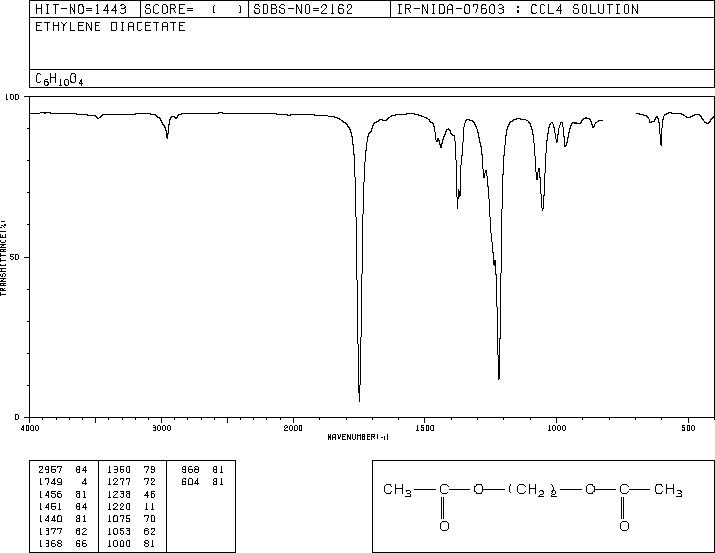

CCl4 solution
liquid film
4880 A,200 M,liquid
