2,2'-Dithiobis(benzothiazole)(120-78-5) IR1
Product Name2,2'-Dithiobis(benzothiazole)
CAS120-78-5
Molecular FormulaC14H8N2S4
Molecular Weight332.49
InChIInChI=1S/C14H8N2S4/c1-3-7-11-9(5-1)15-13(17-11)19-20-14-16-10-6-2-4-8-12(10)18-14/h1-8H
InChIKey AFZSMODLJJCVPP-UHFFFAOYSA-N
SmilesS(C1=NC2=CC=CC=C2S1)SC1=NC2=CC=CC=C2S1
-
MassMS-NW-0404 2,2'-dithiodibenzothiazole C14H8N2S4 (Mass of molecular ion: 332)
Source Temperature: 200 °C Sample Temperature: 150 °C Direct, 75 eV
38.0 1.9 39.0 5.3 44.0 1.1 45.0 6.6 50.0 2.7 51.0 3.6 52.0 1.3 57.0 1.1 58.0 3.2 62.0 1.9 63.0 8.3 64.0 3.2 65.0 1.5 69.0 15.8 70.0 3.4 71.0 1.4 74.0 1.3 75.0 2.8 76.0 2.0 77.0 1.6 78.0 2.9 81.0 2.1 82.0 7.1 83.0 1.6 83.5 2.5 84.0 1.4 90.0 4.9 91.0 3.6 93.0 1.4 94.0 1.1 95.0 4.2 96.0 5.2 102.0 13.5 103.0 3.1 105.0 1.6 107.0 2.1 108.0 53.7 109.0 9.2 110.0 2.9 121.0 1.7 122.0 24.9 122.5 1.7 123.0 5.2 124.0 1.4 133.0 4.7 134.0 3.6 135.0 3.8 139.0 4.8 140.0 5.7 141.0 1.0 165.0 2.0 166.0 96.7 167.0 64.2 168.0 13.6 169.0 6.0 198.0 2.0 224.0 18.2 225.0 2.8 226.0 1.0 242.0 4.9 256.0 11.1 257.0 1.8 258.0 1.1 267.0 6.6 268.0 33.5 269.0 6.5 270.0 3.5 274.0 6.2 275.0 1.1 299.0 5.0 300.0 3.0 301.0 1.1 331.0 1.2 332.0 100.0 333.0 19.4 334.0 18.9 335.0 3.3 336.0 1.4
KBr disc

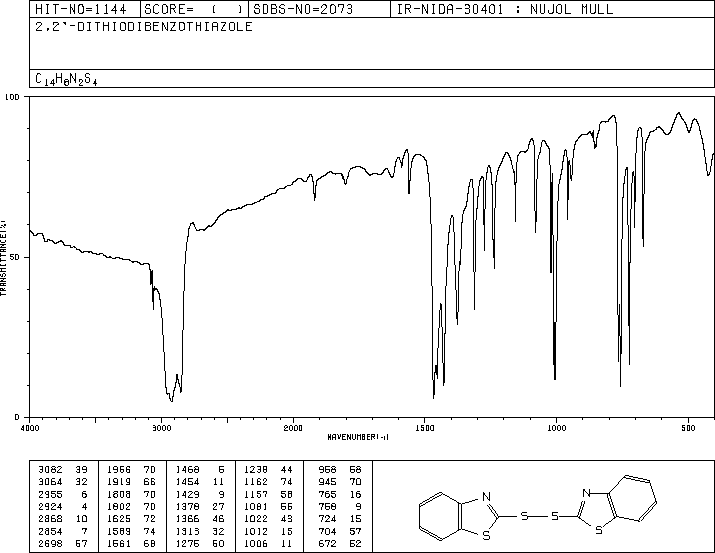

nujol mull
