2-Aminoethyldiisopropylamine(121-05-1) IR1
Product Name2-Aminoethyldiisopropylamine
CAS121-05-1
Molecular FormulaC8H20N2
Molecular Weight144.26
InChIInChI=1S/C8H20N2/c1-7(2)10(6-5-9)8(3)4/h7-8H,5-6,9H2,1-4H3
InChIKey CURJNMSGPBXOGK-UHFFFAOYSA-N
SmilesC(N(C(C)C)C(C)C)CN
-

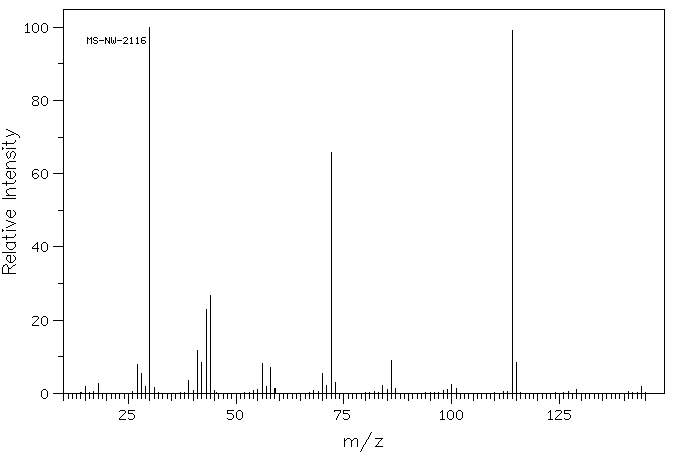

MassMS-NW-2116 N,N-diisopropylethylenediamine C8H20N2 (Mass of molecular ion: 144)
Source Temperature: 250 °C Sample Temperature: 170 °C Reservoir, 75 eV
15.0 1.8 18.0 2.8 27.0 7.9 28.0 5.3 29.0 1.8 30.0 100.0 31.0 1.5 39.0 3.4 41.0 11.6 42.0 8.5 43.0 22.9 44.0 26.7 55.0 1.1 56.0 8.2 57.0 1.8 58.0 7.1 59.0 1.2 70.0 5.5 71.0 2.1 72.0 65.8 73.0 3.0 84.0 2.2 85.0 1.1 86.0 8.9 87.0 1.2 99.0 1.0 100.0 2.5 101.0 1.3 114.0 99.2 115.0 8.3 129.0 1.1 144.0 2.0

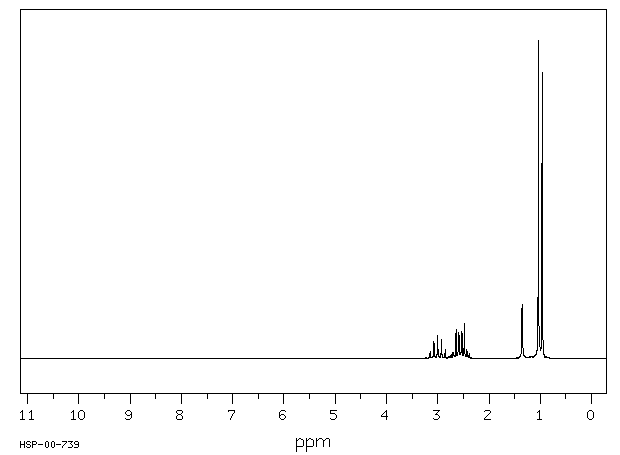

90 MHz in CDCl3
-
1H NMR 89.56 MHz C8 H20 N2 0.04 ml : 0.5 ml CDCl3 N,N-diisopropylethylenediamine
Assign. Shift(ppm)
A 2.991 B 2.63 C 2.49 D 1.36 E 1.002
Hz ppm Int.281.88 3.148 22 275.19 3.073 53 268.63 3.000 71 262.00 2.926 60 255.50 2.853 29 236.50 2.641 92 232.56 2.597 69 231.63 2.587 83 227.13 2.537 86 226.19 2.526 79 222.25 2.482 109 217.88 2.433 29 216.50 2.418 23 121.25 1.354 171 92.81 1.037 1000 86.25 0.964 900

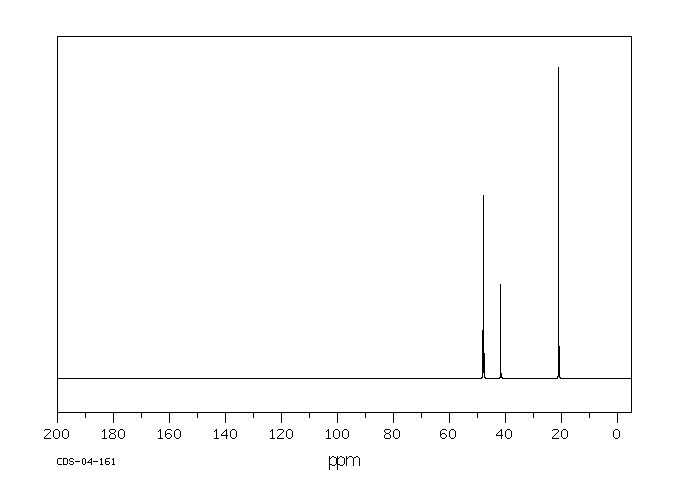

in CDCl3

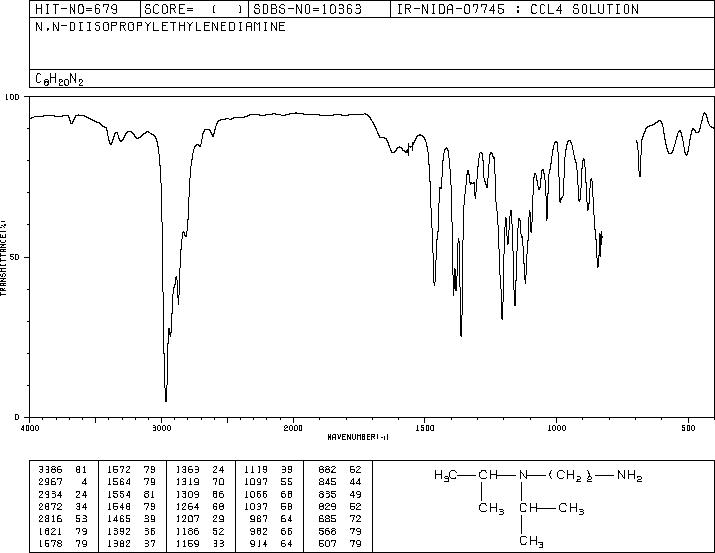

CCl4 solution

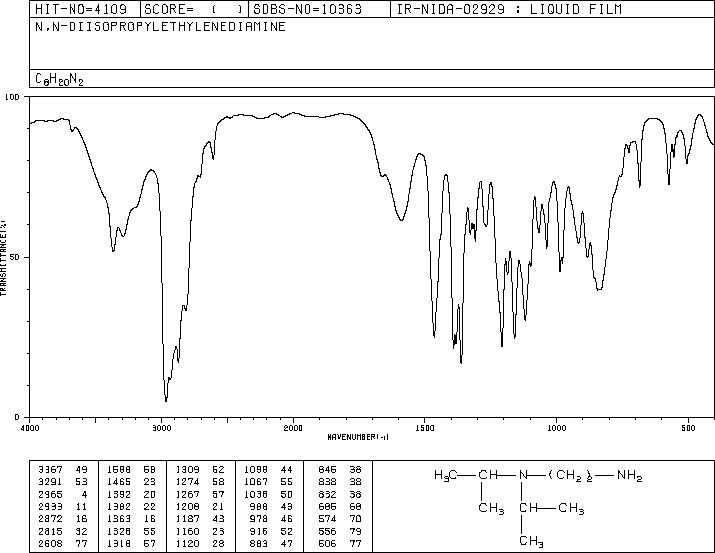

liquid film
