1-NONENE(124-11-8) Raman
Molecular FormulaC9H18
Molecular Weight126.24
InChIInChI=1S/C9H18/c1-3-5-7-9-8-6-4-2/h3H,1,4-9H2,2H3
InChIKey JRZJOMJEPLMPRA-UHFFFAOYSA-N
SmilesC=CCCCCCCC
-

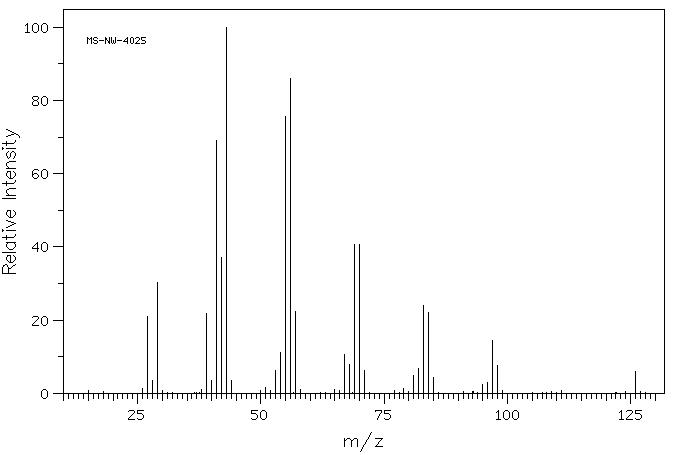

MassMS-NW-4025 1-nonene C9H18 (Mass of molecular ion: 126)
Source Temperature: 280 °C Sample Temperature: 180 °C Reservoir, 75 eV
26.0 1.2 27.0 21.1 28.0 3.4 29.0 30.2 38.0 1.0 39.0 21.8 40.0 3.6 41.0 69.0 42.0 37.1 43.0 100.0 44.0 3.4 51.0 1.5 53.0 6.2 54.0 11.1 55.0 75.6 56.0 86.1 57.0 22.5 58.0 1.0 65.0 1.0 67.0 10.5 68.0 7.9 69.0 40.8 70.0 40.7 71.0 6.2 79.0 1.2 81.0 4.8 82.0 6.8 83.0 24.1 84.0 22.2 85.0 4.3 95.0 2.4 96.0 3.1 97.0 14.4 98.0 7.5 126.0 5.9
90 MHz in CDCl3
-
1H NMR 89.56 MHz C9 H18 0.04 ml : 0.5 ml CDCl3 1-nonene
Assign. Shift(ppm)
A 5.79 B 4.98 C 4.92 D 2.02 E 1.45 F 1.28 G 0.89
Hz ppm Int.541.50 6.047 32 535.06 5.975 65 531.56 5.936 39 528.63 5.903 37 525.13 5.864 81 524.50 5.857 66 518.69 5.792 49 517.88 5.783 111 514.44 5.745 61 511.31 5.710 59 508.00 5.673 129 501.50 5.600 72 457.13 5.105 52 455.63 5.088 102 454.69 5.077 108 454.13 5.071 88 453.25 5.061 197 451.81 5.045 104 447.56 4.998 89 446.38 4.985 172 445.19 4.971 136 444.00 4.958 99 442.81 4.945 56 439.88 4.912 36 438.44 4.896 61 437.50 4.885 119 436.13 4.870 217 435.25 4.860 140 434.69 4.854 124 434.13 4.848 92 432.88 4.834 37 185.81 2.075 97 179.25 2.002 122 172.44 1.926 62 115.00 1.285 1000 98.00 1.095 33 84.06 0.939 141 78.94 0.882 424 72.81 0.813 93
in CDCl3

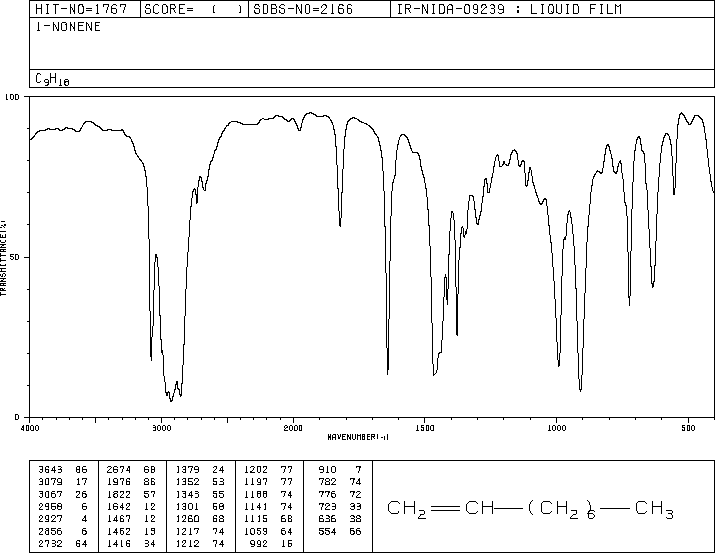

liquid film
