Pentacene(135-48-8) MS
Molecular FormulaC22H14
Molecular Weight278.35
InChIInChI=1S/C22H14/c1-2-6-16-10-20-14-22-12-18-8-4-3-7-17(18)11-21(22)13-19(20)9-15(16)5-1/h1-14H
InChIKey SLIUAWYAILUBJU-UHFFFAOYSA-N
SmilesC1=CC2=CC3=CC4=CC5=CC=CC=C5C=C4C=C3C=C2C=C1
-
MassMS-IW-3109 pentacene C22H14 (Mass of molecular ion: 278)
Source Temperature: 170 °C Sample Temperature: 180 °C Direct, 75 eV
112.0 1.8 113.0 2.3 124.0 1.9 124.5 1.1 125.0 4.4 125.5 1.1 126.0 3.5 137.0 4.4 137.5 1.6 138.0 9.3 138.5 3.0 139.0 22.8 139.5 5.6 250.0 1.9 252.0 1.3 274.0 4.8 275.0 2.1 276.0 14.9 277.0 5.4 278.0 100.0 279.0 24.9 280.0 4.5 294.0 1.3

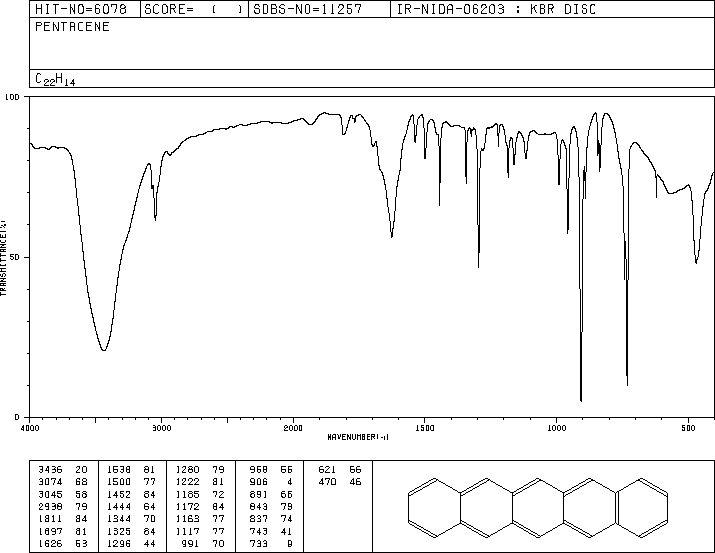

KBr disc
