1,3-Dimethoxybenzene(151-10-0) MS
Product Name1,3-Dimethoxybenzene
CAS151-10-0
Molecular FormulaC8H10O2
Molecular Weight138.16
InChIInChI=1S/C8H10O2/c1-9-7-4-3-5-8(6-7)10-2/h3-6H,1-2H3
InChIKey DPZNOMCNRMUKPS-UHFFFAOYSA-N
SmilesC1(OC)=CC=CC(OC)=C1
-

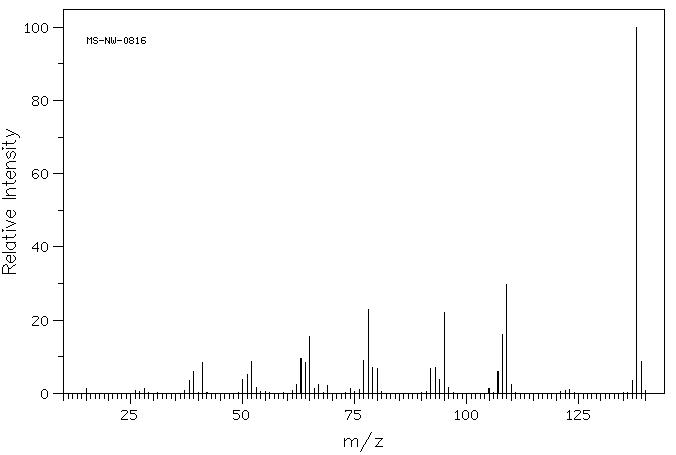

MassMS-NW-0816 m-dimethoxybenzene C8H10O2 (Mass of molecular ion: 138)
Source Temperature: 220 °C Sample Temperature: 150 °C Reservoir, 75 eV
15.0 1.3 28.0 1.2 38.0 3.5 39.0 6.1 41.0 8.3 50.0 3.9 51.0 5.2 52.0 8.6 53.0 1.5 62.0 2.5 63.0 9.4 64.0 8.3 65.0 15.6 66.0 1.4 67.0 2.4 69.0 2.2 74.0 1.3 76.0 1.0 77.0 9.1 78.0 22.8 79.0 7.1 80.0 6.9 92.0 6.9 93.0 7.2 94.0 3.7 95.0 22.1 96.0 1.5 105.0 1.2 107.0 6.0 108.0 16.0 109.0 29.7 110.0 2.4 123.0 1.1 137.0 3.6 138.0 100.0 139.0 8.7
90 MHz in CDCl3
in CDCl3
-

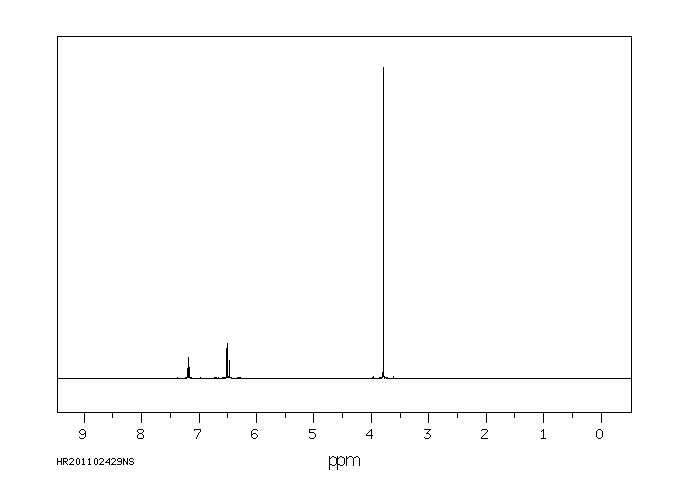

1H NMR 89.56 MHz C8 H10 O2 0.05 ml : 0.5 ml CDCl3 m-dimethoxybenzene
Assign. Shift(ppm)
A 7.15 B 6.50 C 6.44 D 3.741
Hz ppm Int.643.19 7.182 21 640.50 7.152 57 634.69 7.087 22 632.81 7.066 33 586.00 6.544 73 583.94 6.521 89 583.44 6.515 90 579.94 6.476 55 576.88 6.442 198 335.13 3.742 1000
-
in CDCl3

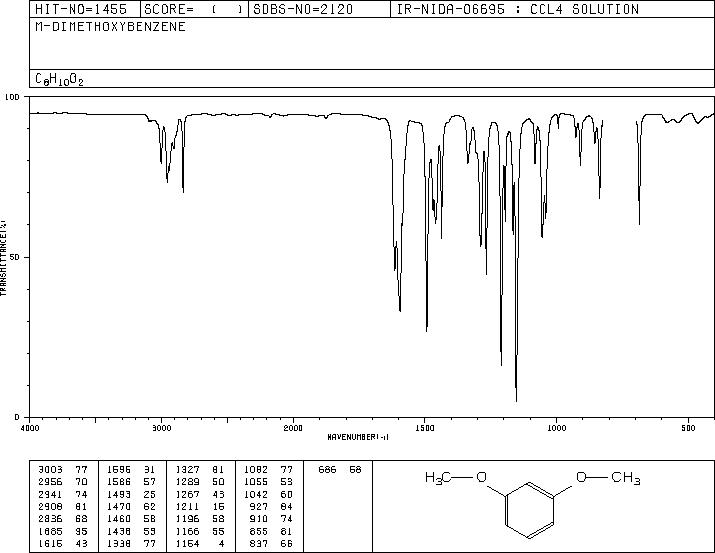

CCl4 solution

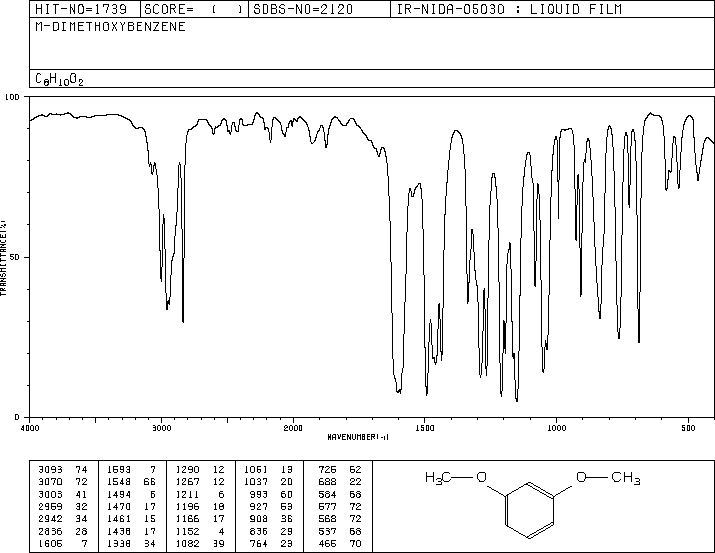

liquid film

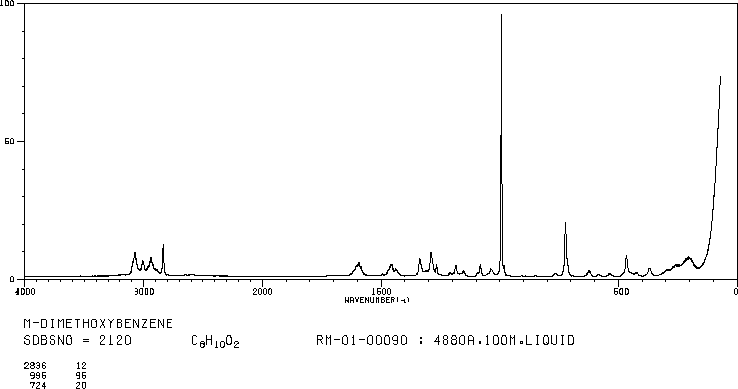

4880 A,100M,liquid
