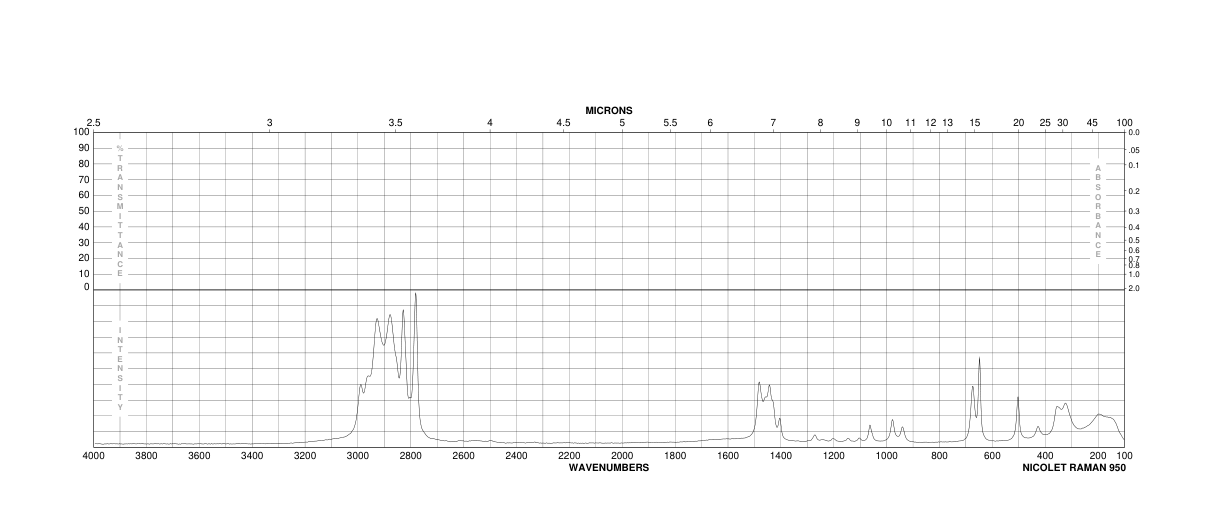

Hexamethylphosphorous triamide(1608-26-0) Raman
Product NameHexamethylphosphorous triamide
CAS1608-26-0
Molecular FormulaC6H18N3P
Molecular Weight163.2
InChIInChI=1S/C6H18N3P/c1-7(2)10(8(3)4)9(5)6/h1-6H3
InChIKey XVDBWWRIXBMVJV-UHFFFAOYSA-N
SmilesP(N(C)C)(N(C)C)N(C)C
-

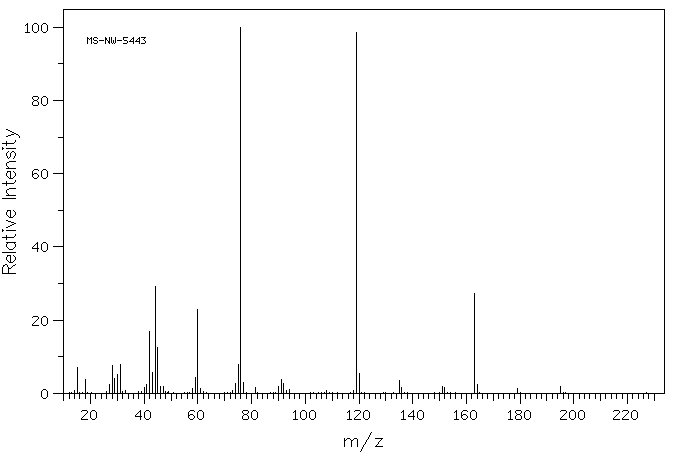

MassMS-NW-5443 hexamethylphosphorous triamide C6H18N3P (Mass of molecular ion: 163)
Source Temperature: 250 °C Sample Temperature: 190 °C Reservoir, 75 eV
15.0 7.2 18.0 3.8 27.0 2.5 28.0 7.6 29.0 4.1 30.0 5.2 31.0 8.0 40.0 1.6 41.0 2.4 42.0 16.9 43.0 5.6 44.0 29.1 45.0 12.5 46.0 1.8 47.0 2.0 58.0 1.2 59.0 4.2 60.0 23.0 61.0 1.3 74.0 2.6 75.0 7.8 76.0 100.0 77.0 3.0 81.5 1.6 90.0 1.9 91.0 3.7 92.0 2.6 94.0 1.0 119.0 98.7 120.0 5.5 135.0 3.5 136.0 1.7 151.0 1.8 152.0 1.5 163.0 27.4 164.0 2.3 179.0 1.2 195.0 1.9
parameter in CDCl3
-

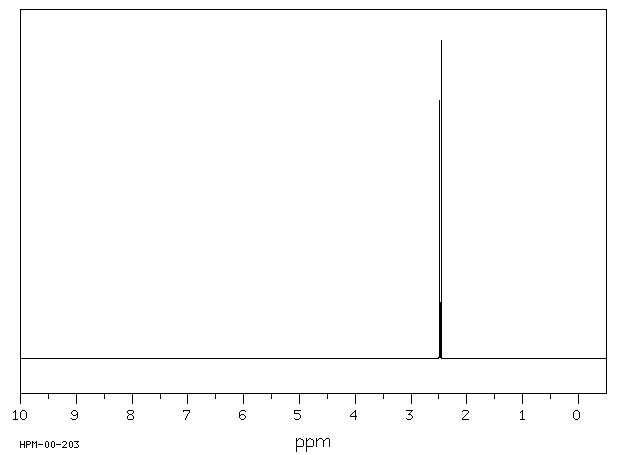

1H NMR 300 MHz C6 H18 N3 P 0.04 ml : 0.5 ml CDCl3 hexamethylphosphorous triamide
Parameter ppm Hz
D(A) 2.483 J(A,P-31) 9.12
Hz ppm Int.749.46 2.498 1000 740.34 2.468 1000
in CDCl3

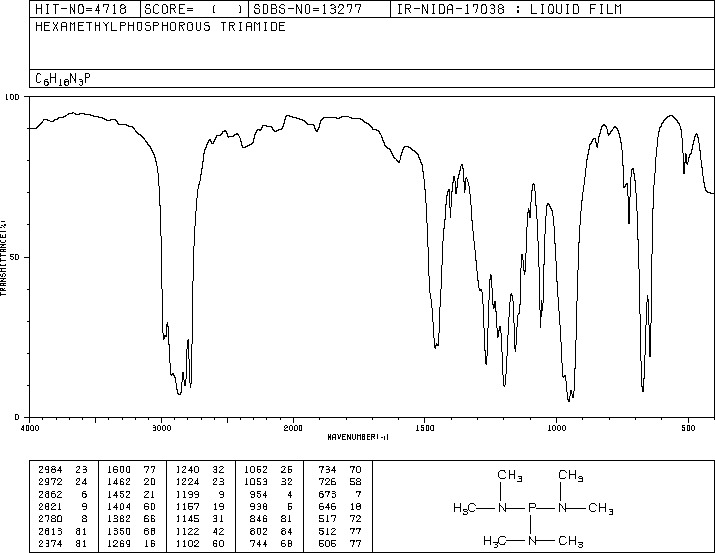

liquid film
