1658-08-8

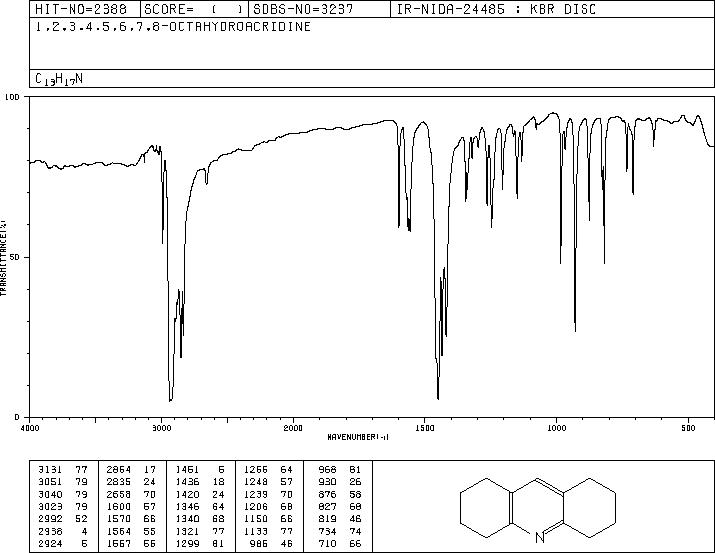

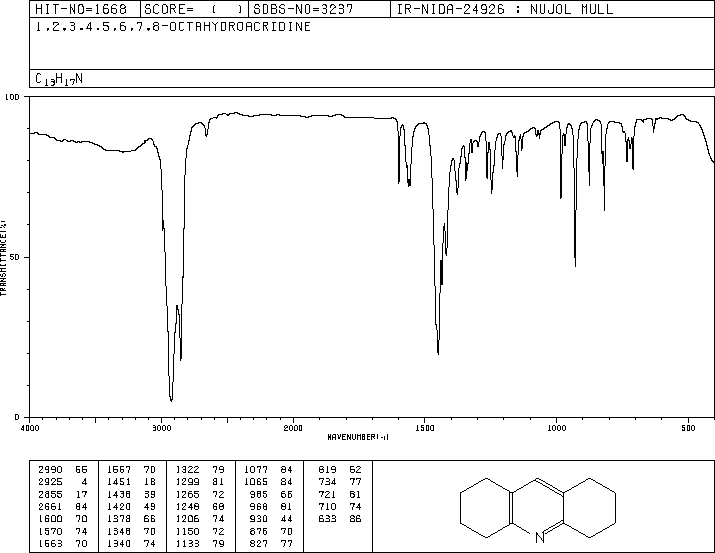

1,2,3,4,5,6,7,8-OCTAHYDROACRIDINE(1658-08-8) IR1

Product Name1,2,3,4,5,6,7,8-OCTAHYDROACRIDINE

CAS 1658-08-8

Molecular FormulaC13H17N

Molecular Weight187.28

InChIInChI=1S/C13H17N/c1-3-7-12-10(5-1)9-11-6-2-4-8-13(11)14-12/h9H,1-8H2

InChIKey LLCXJIQXTXEQID-UHFFFAOYSA-N

SmilesC1C2C(=NC3=C(C=2)CCCC3)CCC1

Request For Quotation

1,2,3,4,5,6,7,8-OCTAHYDROACRIDINE(1658-08-8) IR1

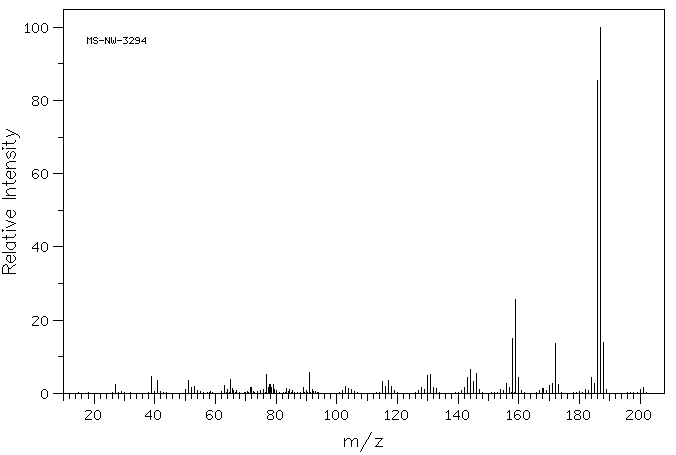

Mass

MS-NW-3294
1,2,3,4,5,6,7,8-octahydroacridine
C13H17N             (Mass of molecular ion:    187)

   Source Temperature: 290 °C
   Sample Temperature: 180 °C
   Reservoir, 75 eV

      27.0       2.3
      39.0       4.7
      41.0       3.5
      50.0       1.1
      51.0       3.4
      52.0       1.6
      53.0       2.0
      63.0       2.2
      64.0       1.0
      65.0       3.8
      65.5       1.2
      71.5       1.6
      72.0       1.6
      76.0       1.0
      77.0       5.2
      77.5       1.5
      78.0       2.4
      78.5       1.7
      79.0       2.3
      79.5       1.0
      83.5       1.3
      84.5       1.0
      89.0       1.6
      91.0       5.8
      92.0       1.0
     103.0       2.0
     104.0       1.3
     105.0       1.1
     115.0       3.3
     116.0       2.0
     117.0       3.4
     118.0       1.8
     128.0       1.6
     129.0       1.1
     130.0       4.8
     131.0       5.2
     132.0       1.7
     133.0       1.3
     142.0       1.5
     143.0       4.2
     144.0       6.6
     145.0       3.3
     146.0       5.3
     147.0       1.0
     154.0       1.1
     156.0       2.7
     157.0       1.7
     158.0      15.1
     159.0      25.6
     160.0       4.4
     168.0       1.3
     170.0       2.1
     171.0       2.6
     172.0      13.6
     173.0       2.4
     182.0       1.1
     184.0       4.3
     185.0       2.8
     186.0      85.6
     187.0     100.0
     188.0      14.0
     189.0       1.0
     200.0       1.1
     201.0       1.5

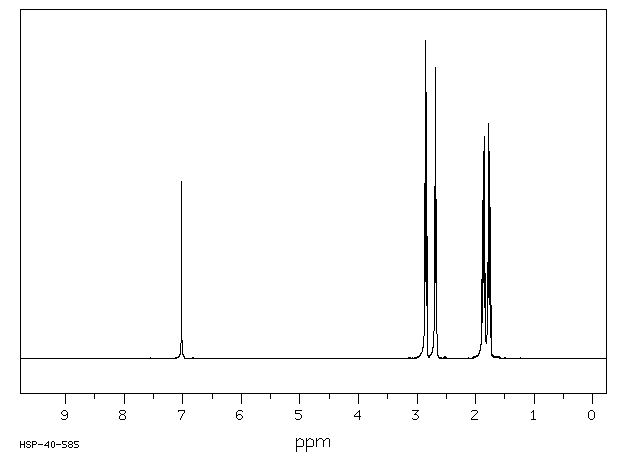

400 MHz in CDCl3

1,2,3,4,5,6,7,8-OCTAHYDROACRIDINE(1658-08-8) IR1

¹H NMR	399.65 MHz
C₁₃ H₁₇ N	0.047 g : 0.5 ml CDCl₃
1,2,3,4,5,6,7,8-octahydroacridine

    Assign.     Shift(ppm)

      A             7.019
      B             2.848
      C             2.683
      D             1.859
      E             1.769

     Hz     ppm     Int.

   2805.30   7.020    558
   1157.47   2.897     36
   1156.74   2.895     37
   1144.65   2.865    550
   1138.43   2.849   1000
   1131.84   2.833    562
   1091.67   2.732     32
   1078.61   2.699    543
   1072.02   2.683    917
   1065.92   2.668    499
    756.47   1.893    250
    753.17   1.885    240
    750.12   1.877    497
    746.70   1.869    472
    745.00   1.865    653
    741.21   1.855    460
    740.72   1.854    451
    738.89   1.849    698
    735.84   1.842    173
    734.38   1.838    230
    732.30   1.833    266
    729.37   1.826    108
    724.85   1.814     73
    720.34   1.803    133
    717.04   1.795    303
    714.97   1.789    300
    713.62   1.786    212
    710.69   1.779    740
    708.62   1.774    508
    704.59   1.764    650
    702.39   1.758    413
    699.58   1.751    475
    696.29   1.743    190
    693.48   1.736    165

in CDCl3
