N-(Trimethylsilyl)imidazole(18156-74-6) 1H NMR
Product NameN-(Trimethylsilyl)imidazole
CAS18156-74-6
Molecular FormulaC6H12N2Si
Molecular Weight140.26
InChIInChI=1S/C6H12N2Si/c1-9(2,3)8-5-4-7-6-8/h4-6H,1-3H3
InChIKey YKFRUJSEPGHZFJ-UHFFFAOYSA-N
SmilesC1N([Si](C)(C)C)C=CN=1
-

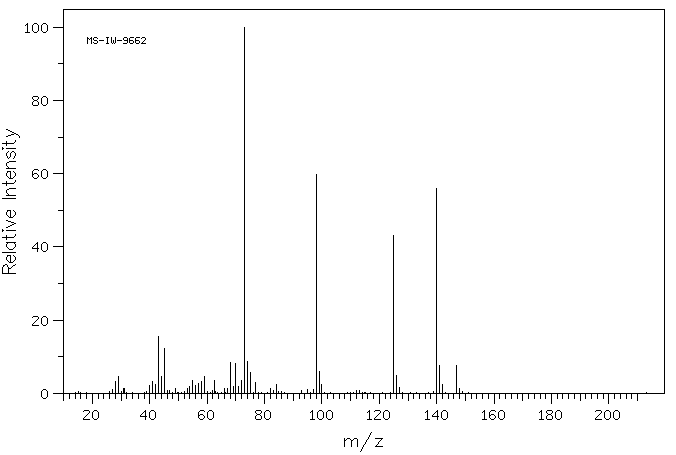

MassMS-IW-9662 1-(trimethylsilyl)imidazole C6H12N2Si (Mass of molecular ion: 140)
Source Temperature: 230 °C Sample Temperature: 150 °C Reservoir, 75 eV
27.0 1.0 28.0 3.2 29.0 4.5 31.0 1.3 40.0 2.1 41.0 3.2 42.0 2.4 43.0 15.5 44.0 4.5 45.0 12.2 49.0 1.3 53.0 1.4 54.0 2.0 55.0 3.5 56.0 2.2 57.0 2.8 58.0 3.3 59.0 4.7 62.5 3.6 66.0 1.2 67.0 1.3 68.0 8.3 69.0 1.9 70.0 8.2 71.0 1.9 72.0 3.5 73.0 100.0 74.0 8.6 75.0 5.6 77.0 3.1 82.0 1.4 84.0 2.4 95.0 1.1 97.0 1.1 98.0 59.9 99.0 6.1 100.0 2.4 125.0 43.1 126.0 5.0 127.0 1.7 140.0 55.9 141.0 7.5 142.0 2.3 147.0 7.5 148.0 1.2
400 MHz in CDCl3
-
1H NMR 399.65 MHz C6 H12 N2 Si 0.05 ml : 0.5 ml CDCl3 1-(trimethylsilyl)imidazole
Assign. Shift(ppm)
A 7.583 B 7.171 C 6.965 D 0.454
Hz ppm Int.3030.76 7.584 73 2865.84 7.171 102 2783.69 6.966 86 184.69 0.463 284 181.52 0.455 1000 177.86 0.446 182
in CDCl3
