1,12-BENZOPERYLENE(191-24-2) 1H NMR
Product Name1,12-BENZOPERYLENE
CAS191-24-2
Molecular FormulaC22H12
Molecular Weight276.33
InChIInChI=1S/C22H12/c1-3-13-7-9-15-11-12-16-10-8-14-4-2-6-18-17(5-1)19(13)21(15)22(16)20(14)18/h1-12H
InChIKey GYFAGKUZYNFMBN-UHFFFAOYSA-N
SmilesC1=C2C3=C4C5C6=C(C=CC=C62)C=CC=5C=CC4=CC=C3C=C1
-

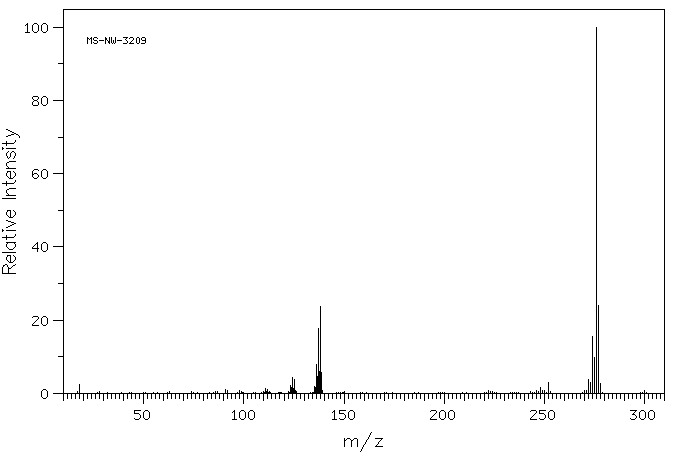

MassMS-NW-3209 benzo(ghi)perylene C22H12 (Mass of molecular ion: 276)
Source Temperature: 260 °C Sample Temperature: 180 °C Direct, 75 eV
18.0 2.5 91.0 1.0 111.0 1.4 112.0 1.1 123.0 2.1 123.5 1.7 124.0 4.2 124.5 1.4 125.0 3.8 135.0 2.0 135.5 1.7 136.0 7.8 136.5 4.6 137.0 17.6 137.5 5.9 138.0 23.7 138.5 5.7 248.0 1.5 252.0 2.9 272.0 3.8 273.0 3.1 274.0 15.6 275.0 9.9 276.0 100.0 277.0 24.0 278.0 2.8

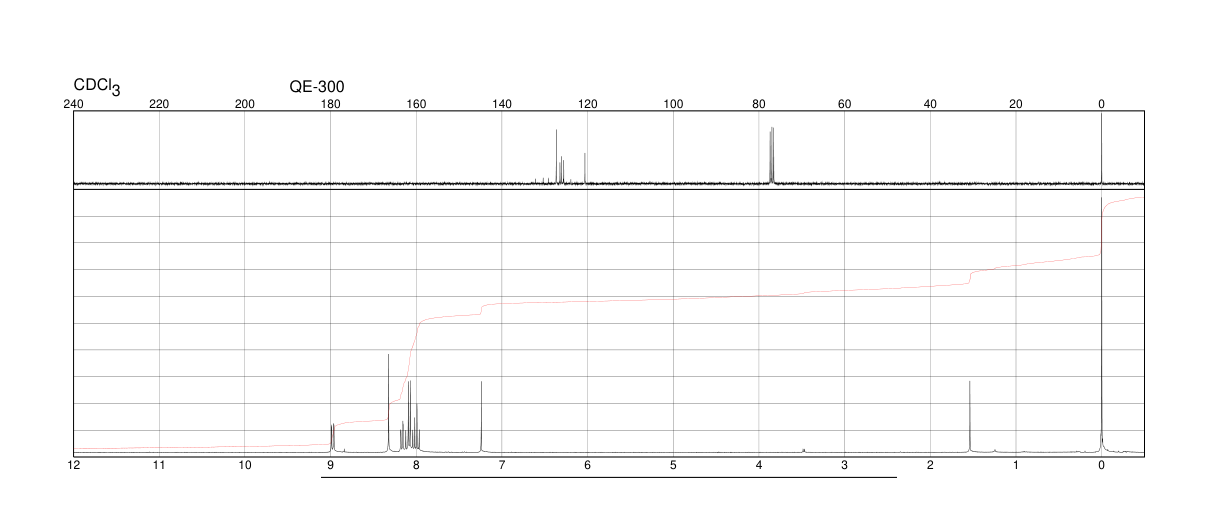

in CDCl3

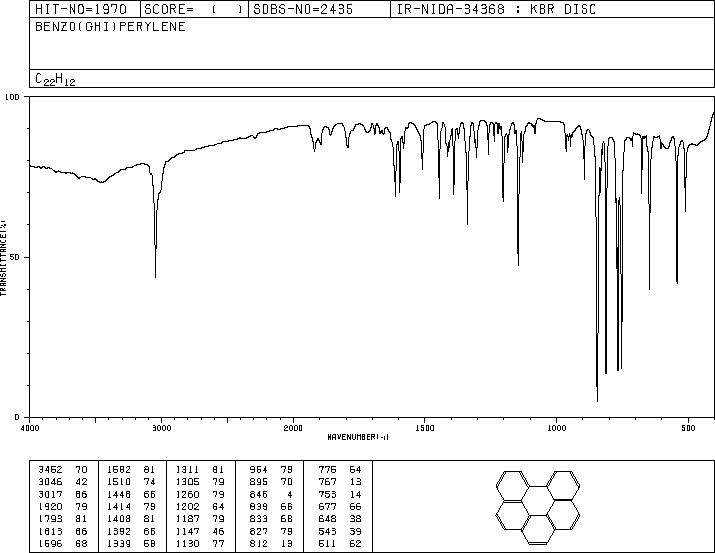

KBr disc

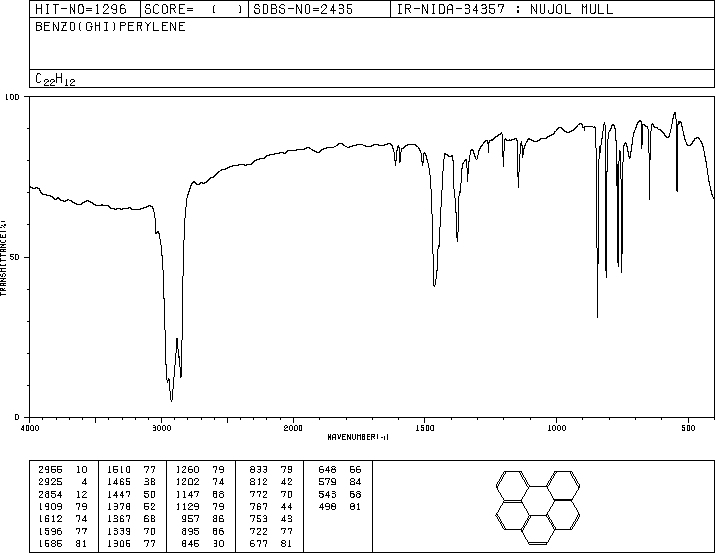

nujol mull
