1,1,2-Trimethoxyethane(24332-20-5) IR1
Product Name1,1,2-Trimethoxyethane
CAS24332-20-5
Molecular FormulaC5H12O3
Molecular Weight120.15
InChIInChI=1S/C5H12O3/c1-6-4-5(7-2)8-3/h5H,4H2,1-3H3
InChIKey DYOZNCVZPFIXLU-UHFFFAOYSA-N
SmilesC(OC)(OC)COC
-

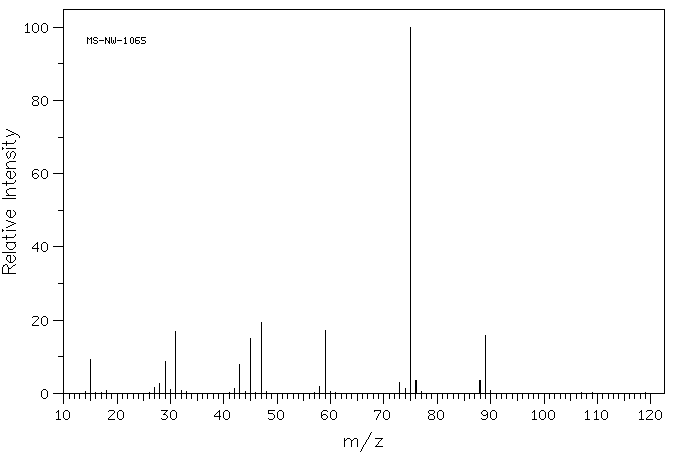

MassMS-NW-1065 1,1,2-trimethoxyethane C5H12O3 (Mass of molecular ion: 120)
Source Temperature: 240 °C Sample Temperature: 170 °C Reservoir, 75 eV
15.0 9.3 27.0 1.6 28.0 2.7 29.0 8.8 30.0 1.0 31.0 16.8 42.0 1.4 43.0 7.9 45.0 15.1 47.0 19.4 58.0 2.0 59.0 17.2 73.0 2.9 74.0 1.4 75.0 100.0 76.0 3.4 88.0 3.4 89.0 15.8

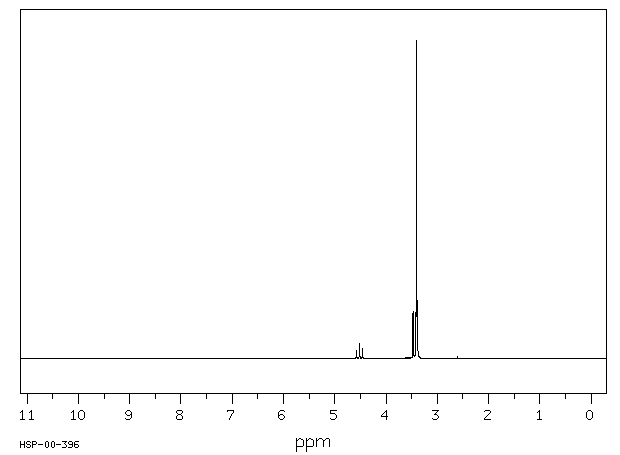

90 MHz in CDCl3
-
1H NMR 89.56 MHz C5 H12 O3 0.04 ml : 0.5 ml CDCl3 1,1,2-trimethoxyethane
Assign. Shift(ppm)
A 4.513 B 3.442 C 3.40
Hz ppm Int.409.56 4.574 25 404.38 4.516 48 399.19 4.458 30 310.94 3.472 147 305.69 3.414 155 304.69 3.403 1000
in CDCl3

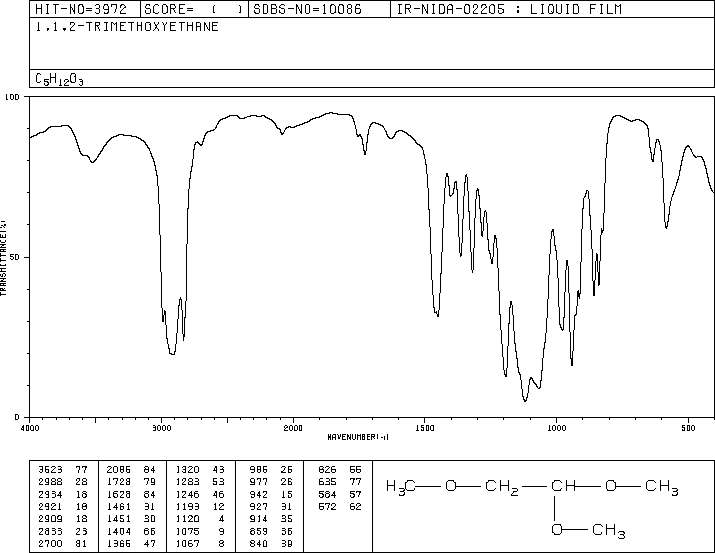

liquid film

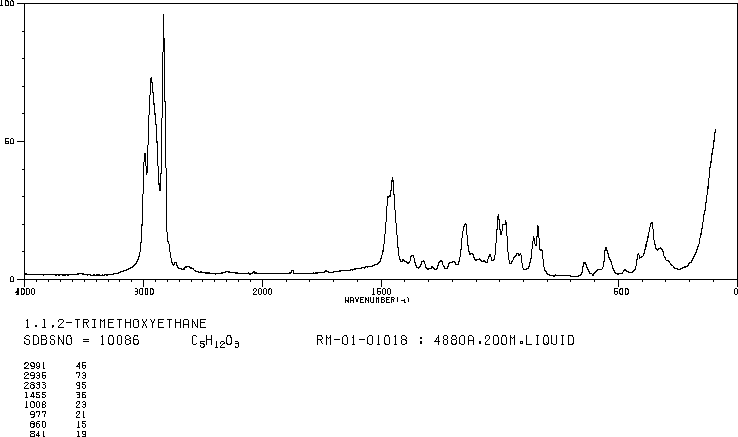

4880 A,200 M,liquid
