Ethyl L-serinate hydrochloride(26348-61-8) 13C NMR
Product NameEthyl L-serinate hydrochloride
CAS26348-61-8
Molecular FormulaC5H12ClNO3
Molecular Weight169.61
InChIInChI=1/C5H11NO3.ClH/c1-2-9-5(8)4(6)3-7;/h4,7H,2-3,6H2,1H3;1H/t4-;/s3
InChIKey JZJQCLZQSHLSFB-NDILARRWNA-N
SmilesC(=O)(OCC)[C@@H](N)CO.Cl |&1:5,r|
-

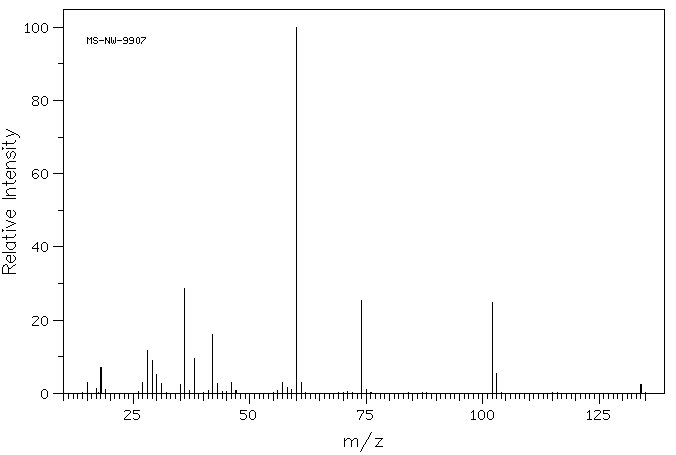

MassMS-NW-9907 L-serine ethyl ester hydrochloride C5H11NO3 HCl (Mass of molecular ion: 133)
Source Temperature: 190 °C Sample Temperature: 120 °C Direct, 75 eV
15.0 3.0 17.0 1.3 18.0 7.0 19.0 1.0 27.0 2.9 28.0 11.6 29.0 9.1 30.0 5.2 31.0 2.7 35.0 2.3 36.0 28.7 38.0 9.4 42.0 16.1 43.0 2.6 46.0 3.0 57.0 2.9 58.0 1.5 59.0 1.1 60.0 100.0 61.0 2.9 74.0 25.4 75.0 1.1 102.0 24.9 103.0 5.5 134.0 2.3
400 MHz in DMSO-d6
-

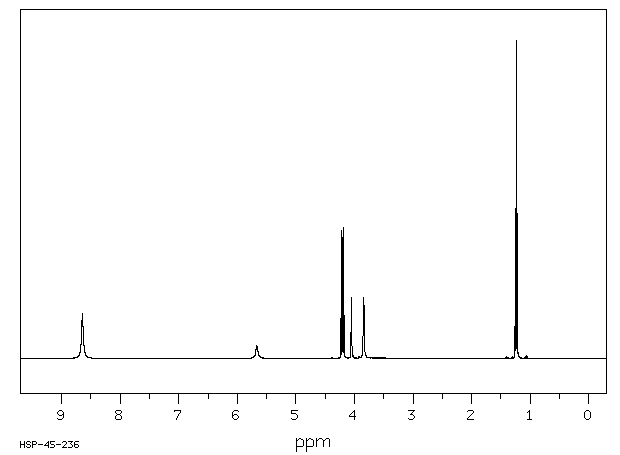

1H NMR 399.65 MHz C5 H11 N O3 0.037 g : 0.5 ml DMSO-d6 L-serine ethyl ester hydrochloride
Assign. Shift(ppm)
A 8.64 B 5.7 C 4.202 D 4.052 E 3.84 F 1.238
Hz ppm Int.3454.59 8.645 140 2263.92 5.665 40 1690.43 4.230 126 1683.35 4.213 402 1676.15 4.195 414 1669.07 4.177 134 1623.29 4.062 83 1619.63 4.053 193 1616.21 4.045 99 1536.25 3.844 193 1534.91 3.841 191 501.83 1.256 473 494.75 1.238 1000 487.55 1.220 456
in DMSO-d6

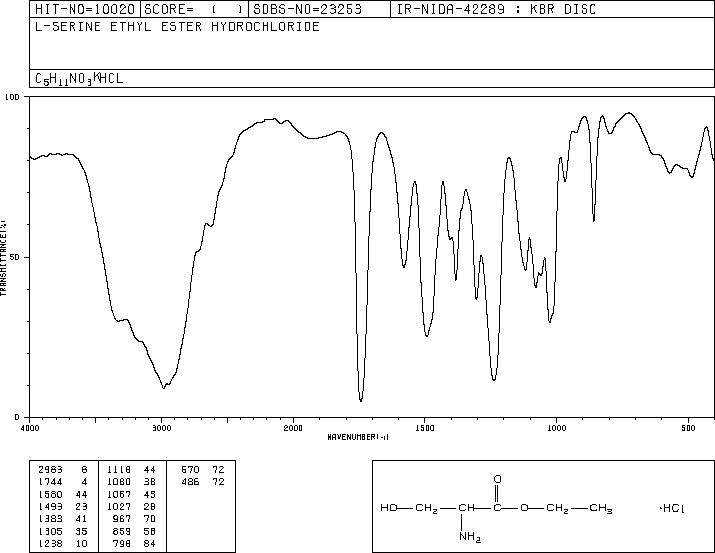

KBr disc

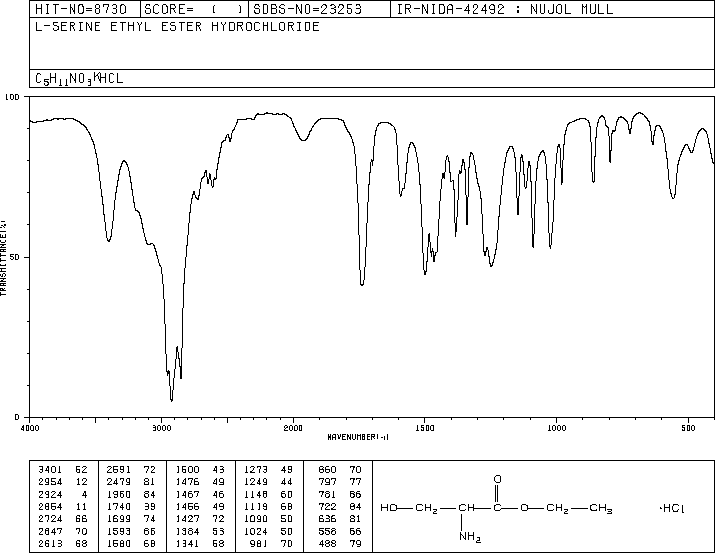

nujol mull
