2,2-DIMETHYL-1,3-DIOXOLANE(2916-31-6) Raman
Product Name2,2-DIMETHYL-1,3-DIOXOLANE
CAS2916-31-6
Molecular FormulaC5H10O2
Molecular Weight102.13
InChIInChI=1S/C5H10O2/c1-5(2)6-3-4-7-5/h3-4H2,1-2H3
InChIKey SIJBDWPVNAYVGY-UHFFFAOYSA-N
SmilesO1CCOC1(C)C
-

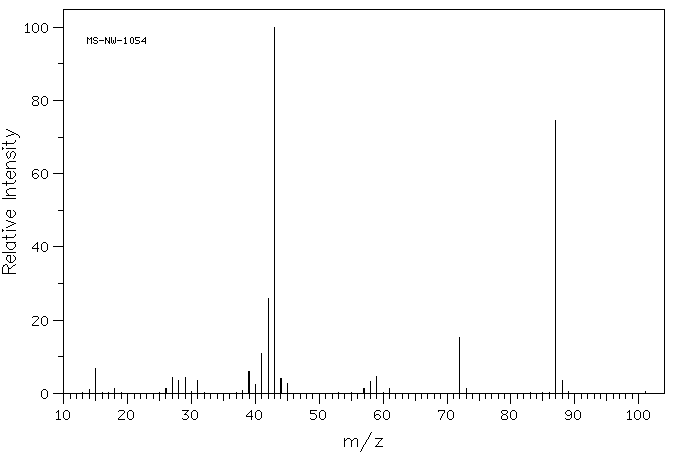

MassMS-NW-1054 2,2-dimethyl-1,3-dioxolane C5H10O2 (Mass of molecular ion: 102)
Source Temperature: 250 °C Sample Temperature: 170 °C Reservoir, 75 eV
14.0 1.1 15.0 6.8 18.0 1.2 26.0 1.2 27.0 4.3 28.0 3.6 29.0 4.3 31.0 3.5 39.0 5.9 40.0 2.3 41.0 11.0 42.0 25.9 43.0 100.0 44.0 4.0 45.0 2.8 57.0 1.2 58.0 3.2 59.0 4.5 61.0 1.4 72.0 15.2 73.0 1.2 87.0 74.5 88.0 3.4
parameter in CDCl3
-

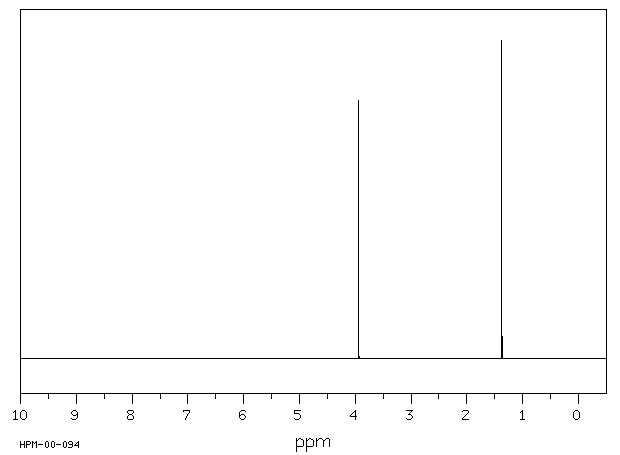

1H NMR 300 MHz C5 H10 O2 0.04 ml : 0.5 ml CDCl3 2,2-dimethyl-1,3-dioxolane
Parameter ppm Hz
D(A) 3.943 D(B) 1.378
Hz ppm Int.1182.90 3.943 667 413.41 1.378 1000
in CDCl3

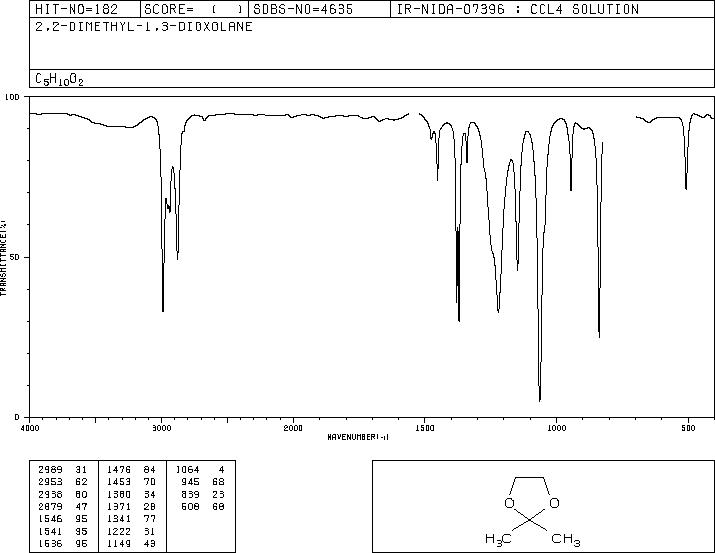

CCl4 solution

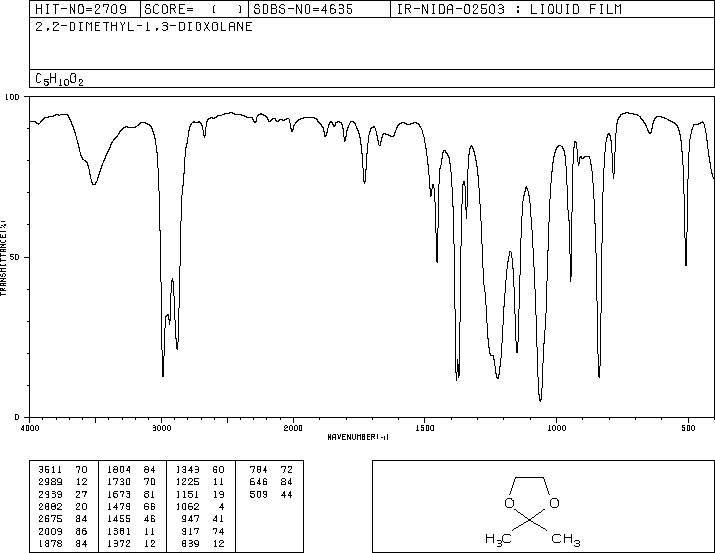

liquid film

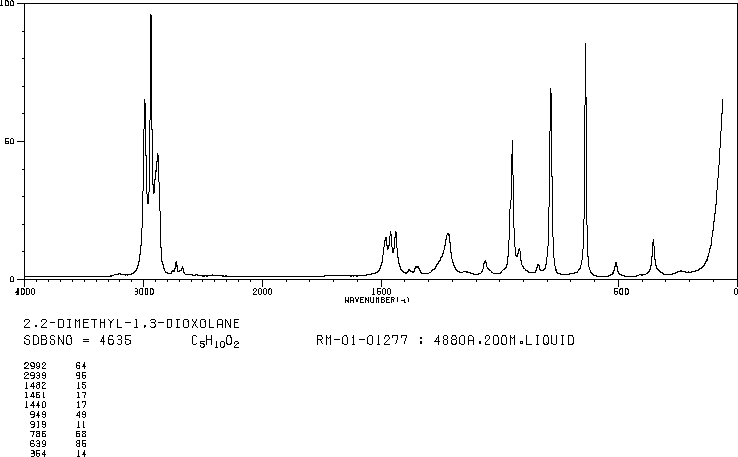

4880 A,200 M,liquid
