2997-01-5

ETHYLENE GLYCOL BIS(3-AMINOPROPYL) ETHER(2997-01-5) IR1

Product NameETHYLENE GLYCOL BIS(3-AMINOPROPYL) ETHER

CAS 2997-01-5

Molecular FormulaC8H20N2O2

Molecular Weight176.26

InChIInChI=1S/C8H20N2O2/c9-3-1-5-11-7-8-12-6-2-4-10/h1-10H2

InChIKey POTQBGGWSWSMCX-UHFFFAOYSA-N

SmilesC(OCCCN)COCCCN

Request For Quotation

ETHYLENE GLYCOL BIS(3-AMINOPROPYL) ETHER(2997-01-5) IR1

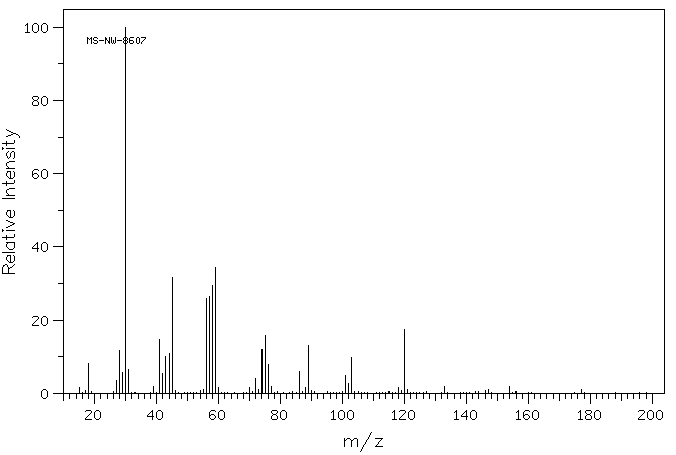

Mass

MS-NW-8607
3,3'-(ethylenedioxy)dipropylamine
C8H20N2O2           (Mass of molecular ion:    176)

   Source Temperature: 250 °C
   Sample Temperature: 130 °C
   Reservoir, 75 eV

      15.0       1.5
      18.0       8.1
      27.0       3.4
      28.0      11.8
      29.0       5.6
      30.0     100.0
      31.0       6.4
      39.0       1.8
      41.0      14.6
      42.0       5.5
      43.0      10.0
      44.0      10.9
      45.0      31.7
      55.0       1.1
      56.0      25.9
      57.0      26.4
      58.0      29.4
      59.0      34.4
      60.0       1.5
      70.0       1.5
      72.0       4.0
      73.0       1.1
      74.0      12.1
      75.0      15.8
      76.0       7.9
      77.0       1.9
      86.0       6.1
      88.0       1.6
      89.0      13.2
     101.0       5.0
     102.0       2.6
     103.0       9.7
     118.0       1.6
     120.0      17.5
     121.0       1.1
     133.0       1.9
     147.0       1.0
     154.0       2.0
     177.0       1.1

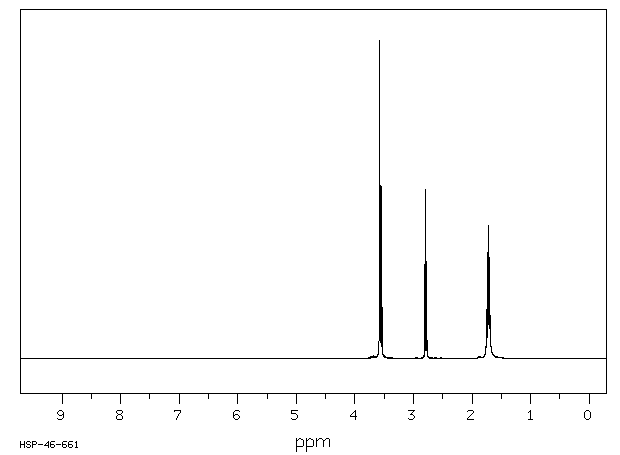

400 MHz in CDCl3

ETHYLENE GLYCOL BIS(3-AMINOPROPYL) ETHER(2997-01-5) IR1

¹H NMR	399.65 MHz
C₈ H₂₀ N₂ O₂	0.05 ml : 0.5 ml CDCl₃
3,3'-(ethylenedioxy)dipropylamine

    Assign.     Shift(ppm)

      A             3.577
      B             3.553
      C             2.788
      D             1.725
      E             1.71

     Hz     ppm     Int.

   1429.57   3.578   1000
   1426.15   3.569    337
   1420.04   3.554    543
   1413.70   3.538    313
   1121.09   2.806    297
   1114.38   2.789    531
   1107.54   2.772    304
    702.39   1.758    110
    696.04   1.742    285
    689.45   1.726    417
    683.11   1.710    317
    676.39   1.693    147

in CDCl3
