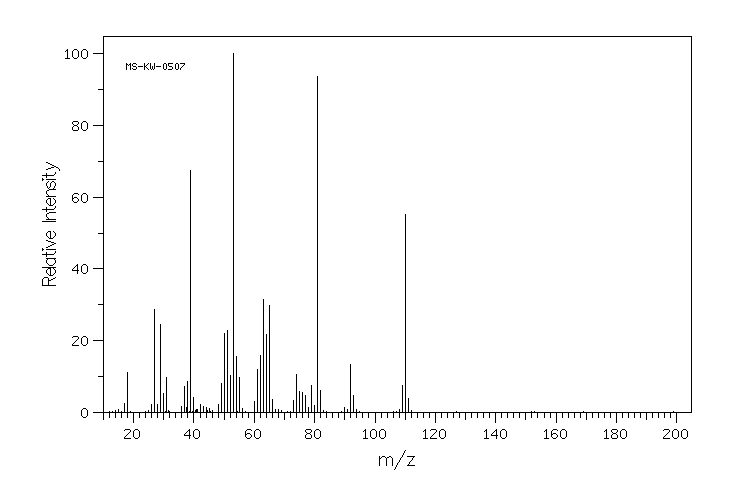

Mass

MS-KW-0507
2,4-hexadiyne-1,6-diol
C6H6O2              (Mass of molecular ion:    110)

   Source Temperature: 240 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      17.0       2.4
      18.0      11.2
      26.0       2.1
      27.0      28.7
      28.0       2.1
      29.0      24.5
      30.0       5.3
      31.0       9.7
      36.0       1.6
      37.0       7.2
      37.5       1.2
      38.0       8.5
      39.0      67.4
      40.0       4.1
      42.0       2.3
      43.0       1.6
      44.0       1.2
      45.0       1.0
      48.0       2.1
      49.0       8.0
      50.0      21.9
      51.0      22.9
      52.0      10.3
      53.0     100.0
      54.0      15.5
      55.0       9.8
      56.0       1.1
      60.0       3.0
      61.0      11.9
      62.0      15.9
      63.0      31.4
      64.0      21.6
      65.0      29.9
      66.0       3.5
      73.0       3.2
      74.0      10.6
      75.0       5.9
      76.0       5.6
      77.0       4.8
      78.0       1.3
      79.0       7.4
      80.0       2.0
      81.0      93.6
      82.0       6.0
      90.0       1.4
      92.0      13.2
      93.0       4.6
     109.0       7.6
     110.0      55.2
     111.0       3.9

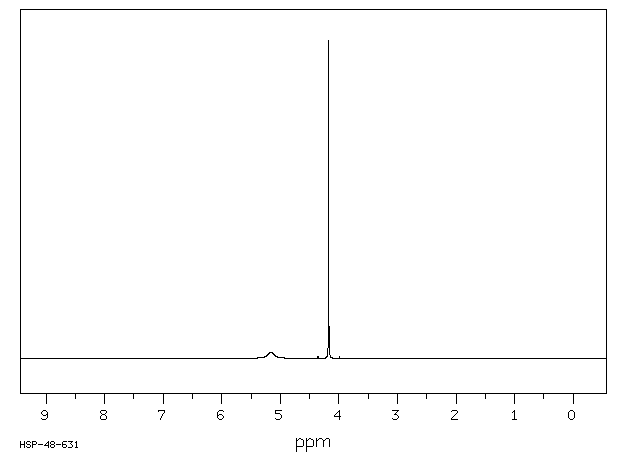

Assign. Shift(ppm) A 5.16 B 4.173

     Hz     ppm     Int.

   1667.97   4.174   1000
