306-67-2

SPERMINE TETRAHYDROCHLORIDE(306-67-2) ¹³C NMR

Product NameSPERMINE TETRAHYDROCHLORIDE

CAS 306-67-2

Molecular FormulaC10H30Cl4N4

Molecular Weight348.18

InChIInChI=1S/C10H26N4.4ClH/c11-5-3-9-13-7-1-2-8-14-10-4-6-12;;;;/h13-14H,1-12H2;4*1H

InChIKey XLDKUDAXZWHPFH-UHFFFAOYSA-N

SmilesC(CNCCCN)CCNCCCN.Cl.Cl.Cl.Cl

Request For Quotation

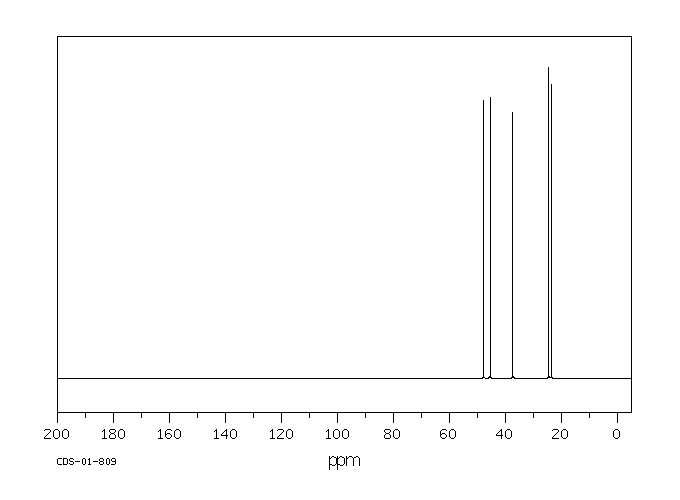

SPERMINE TETRAHYDROCHLORIDE(306-67-2) <sup>13</sup>C NMR

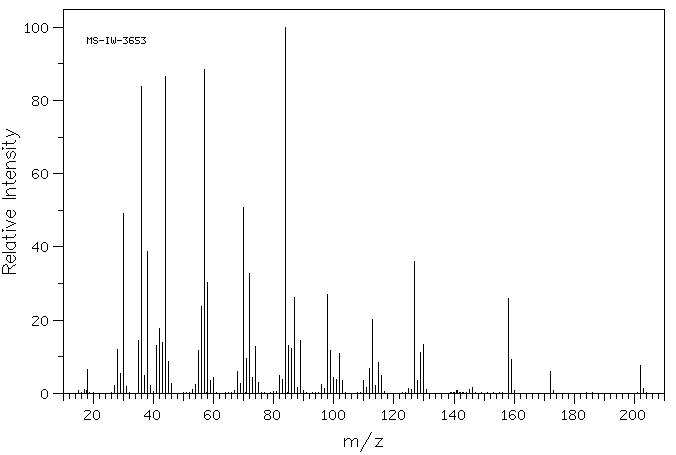

Mass

MS-IW-3653
N,N'-bis(3-aminopropyl)tetramethylenediamine tetrahydrochloride
C10H26N4 4HCl       (Mass of molecular ion:    202)

   Source Temperature: 160 °C
   Sample Temperature: 180 °C
   Direct, 75 eV

      17.0       1.0
      18.0       6.4
      27.0       2.1
      28.0      12.0
      29.0       5.3
      30.0      49.2
      31.0       1.9
      35.0      14.5
      36.0      83.9
      37.0       5.0
      38.0      38.7
      39.0       2.2
      41.0      13.0
      42.0      17.7
      43.0      14.0
      44.0      86.5
      45.0       8.7
      46.0       2.6
      53.0       1.0
      54.0       2.3
      55.0      11.8
      56.0      23.7
      57.0      88.4
      58.0      30.4
      59.0       3.5
      60.0       4.4
      68.0       6.0
      69.0       2.7
      70.0      50.9
      71.0       9.6
      72.0      32.7
      73.0       4.4
      74.0      12.9
      75.0       2.9
      82.0       4.9
      83.0       3.7
      84.0     100.0
      85.0      13.2
      86.0      12.3
      87.0      26.2
      88.0       1.6
      89.0      14.4
      96.0       2.5
      97.0       1.2
      98.0      27.0
      99.0      11.7
     100.0       4.2
     101.0       3.7
     102.0      11.0
     103.0       3.5
     110.0       3.4
     111.0       1.5
     112.0       6.9
     113.0      20.1
     114.0       2.1
     115.0       8.4
     116.0       4.9
     125.0       1.3
     126.0       1.0
     127.0      36.1
     128.0       3.6
     129.0      11.1
     130.0      13.3
     131.0       1.1
     145.0       1.1
     146.0       1.5
     158.0      25.8
     159.0       9.3
     172.0       5.9
     202.0       7.5
     203.0       1.2

400 MHz in D2O

SPERMINE TETRAHYDROCHLORIDE(306-67-2) <sup>13</sup>C NMR

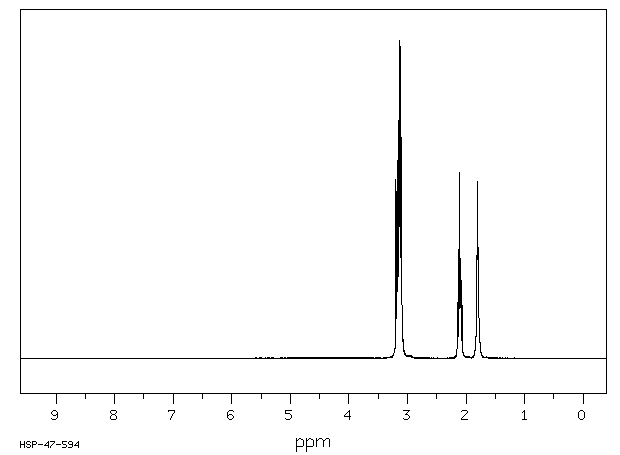

¹H NMR	399.65 MHz
C₁₀ H₂₆ N₄	0.045 g : 0.5 ml D₂O
N,N'-bis(3-aminopropyl)tetramethylenediamine tetrahydrochloride

    Assign.     Shift(ppm)

      A             3.18
      B             3.12
      C             2.108
      D             1.800

     Hz     ppm     Int.

   1277.59   3.197    563
   1269.65   3.177    625
   1261.60   3.157    750
   1254.27   3.139   1000
   1246.46   3.119    982
   1238.65   3.100    696
    858.03   2.147    175
    852.29   2.133    214
    850.10   2.128    342
    848.39   2.123    242
    845.21   2.115    232
    842.29   2.108    585
    839.23   2.100    234
    836.55   2.094    227
    834.23   2.088    315
    832.64   2.084    228
    826.54   2.069    166
    727.42   1.821    246
    723.75   1.811    336
    719.97   1.802    557
    716.19   1.793    349
    712.65   1.784    259

in D2O
