3218-36-8

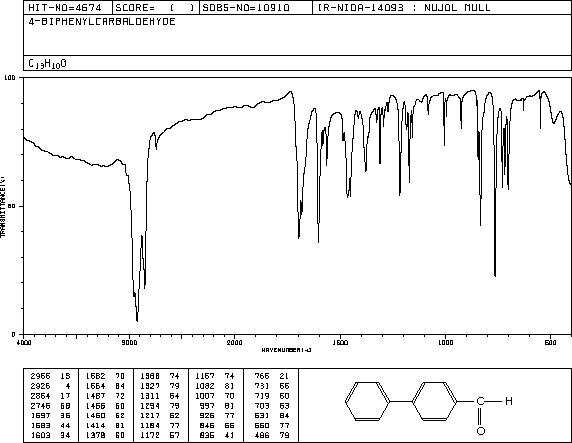

4-Biphenylcarboxaldehyde(3218-36-8) IR3

Product Name4-Biphenylcarboxaldehyde

CAS 3218-36-8

Molecular FormulaC13H10O

Molecular Weight182.22

InChIInChI=1S/C13H10O/c14-10-11-6-8-13(9-7-11)12-4-2-1-3-5-12/h1-10H

InChIKey ISDBWOPVZKNQDW-UHFFFAOYSA-N

SmilesC1(C2=CC=CC=C2)=CC=C(C=O)C=C1

Request For Quotation

4-Biphenylcarboxaldehyde(3218-36-8) IR3

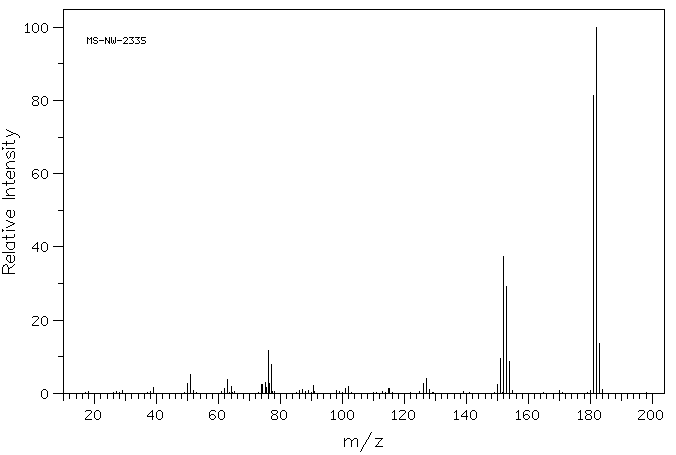

Mass

MS-NW-2335
4-biphenylcarbaldehyde
C13H10O             (Mass of molecular ion:    182)

   Source Temperature: 140 °C
   Sample Temperature: 110 °C
   Direct, 75 eV

      39.0       1.6
      50.0       2.6
      51.0       5.1
      62.0       1.3
      63.0       3.7
      64.0       1.8
      74.0       2.4
      75.0       3.1
      75.5       1.6
      76.0      11.6
      76.5       2.6
      77.0       7.8
      87.0       1.0
      90.5       2.2
     101.0       1.2
     102.0       1.9
     115.0       1.3
     126.0       2.8
     127.0       4.1
     128.0       1.0
     150.0       2.5
     151.0       9.4
     152.0      37.5
     153.0      29.3
     154.0       8.7
     181.0      81.5
     182.0     100.0
     183.0      13.7
     184.0       1.1

90 MHz in CDCl3

4-Biphenylcarboxaldehyde(3218-36-8) IR3

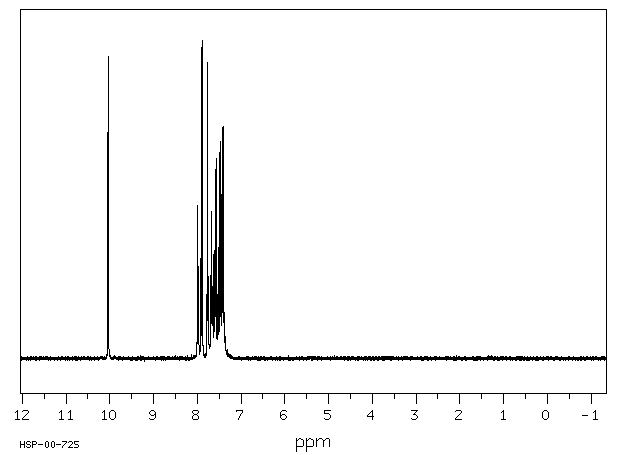

¹H NMR	89.56 MHz
C₁₃ H₁₀ O	0.045 g : 0.5 ml CDCl₃
4-biphenylcarbaldehyde

    Assign.     Shift(ppm)

      A            10.04
      B             7.92
      C             7.73
      D          7.71 to 7.34

     Hz     ppm     Int.

    898.83  10.037    952
    716.89   8.005     80
    715.36   7.988    482
    714.62   7.980    291
    713.38   7.966    198
    708.91   7.916    316
    706.79   7.892   1000
    705.40   7.877    238
    697.12   7.784    181
    696.75   7.780    202
    695.65   7.768    932
    693.60   7.745    257
    693.24   7.741    210
    688.40   7.687    262
    687.89   7.681    269
    687.16   7.673    462
    685.69   7.657    227
    684.38   7.642    217
    683.50   7.632    326
    681.96   7.615    127
    680.71   7.601    340
    679.98   7.593    517
    678.44   7.576    595
    678.00   7.571    630
    675.37   7.541    149
    674.27   7.529    202
    673.32   7.519    350
    672.07   7.505    174
    671.19   7.495    195
    670.17   7.483    648
    669.43   7.475    683
    668.92   7.469    368
    667.68   7.456    518
    667.24   7.451    350
    666.14   7.438    167
    665.48   7.431    301
    664.38   7.419    728
    663.57   7.410    198
    662.33   7.396    729
    661.08   7.382    145
    660.28   7.373    106
    659.25   7.361     70
    658.59   7.354     70

in CDCl3
