N,N-Dimethylglycine ethyl ester(33229-89-9) 13C NMR
Product NameN,N-Dimethylglycine ethyl ester
CAS33229-89-9
Molecular FormulaC6H13NO2
Molecular Weight131.17
InChIInChI=1S/C6H13NO2/c1-4-9-6(8)5-7(2)3/h4-5H2,1-3H3
InChIKey BGCNBOFPABQGNG-UHFFFAOYSA-N
SmilesC(OCC)(=O)CN(C)C
-

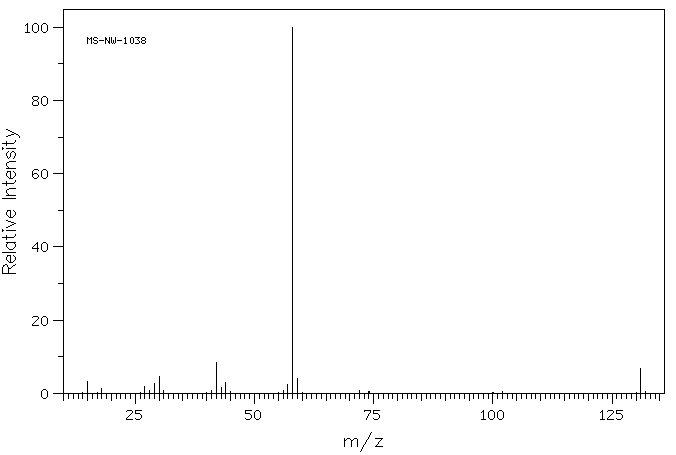

MassMS-NW-1038 ethyl (dimethylamino)acetate C6H13NO2 (Mass of molecular ion: 131)
Source Temperature: 250 °C Sample Temperature: 130 °C Reservoir, 75 eV
15.0 3.2 18.0 1.4 27.0 1.8 29.0 2.8 30.0 4.5 42.0 8.5 43.0 1.7 44.0 3.1 57.0 2.3 58.0 100.0 59.0 4.0 131.0 6.7
90 MHz in CDCl3
-
1H NMR 89.56 MHz C6 H13 N O2 0.04 ml : 0.5 ml CDCl3 ethyl (dimethylamino)acetate
Assign. Shift(ppm)
A 4.198 B 3.162 C 2.357 D 1.286
Hz ppm Int.387.00 4.322 38 379.75 4.241 127 372.63 4.161 133 365.56 4.082 44 283.19 3.163 234 211.06 2.357 1000 122.06 1.363 174 115.00 1.285 389 107.81 1.204 151
in CDCl3

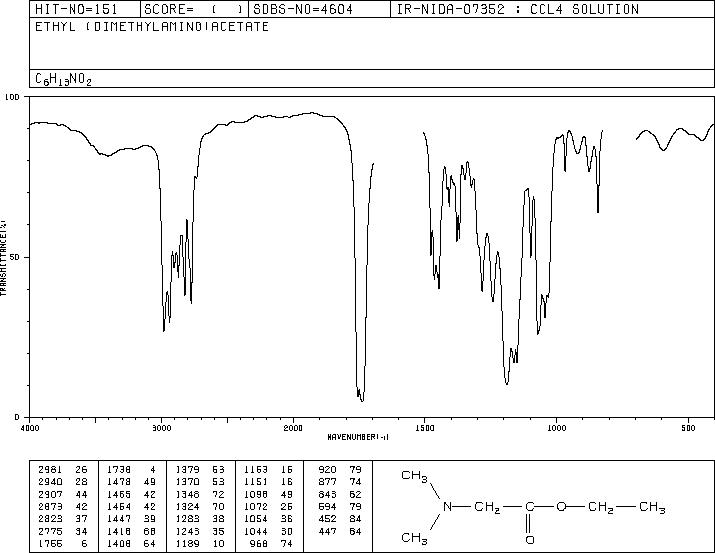

CCl4 solution
liquid film
