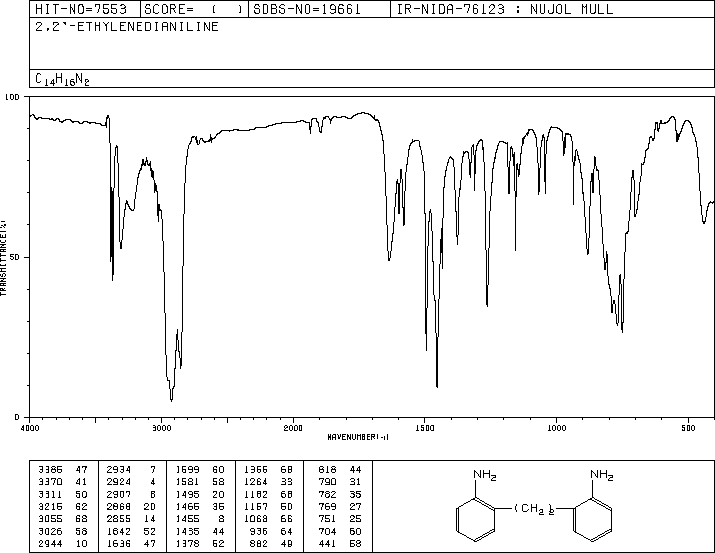

2,2'-ETHYLENEDIANILINE(34124-14-6) IR2
Product Name2,2'-ETHYLENEDIANILINE
CAS34124-14-6
Molecular FormulaC14H16N2
Molecular Weight212.29
InChIInChI=1S/C14H16N2/c15-13-7-3-1-5-11(13)9-10-12-6-2-4-8-14(12)16/h1-8H,9-10,15-16H2
InChIKey ZYHQGITXIJDDKC-UHFFFAOYSA-N
SmilesC(C1=CC=CC=C1N)CC1=CC=CC=C1N
-
MassMS-IW-8135 2,2'-ethylenedianiline C14H16N2 (Mass of molecular ion: 212)
Source Temperature: 130 °C Sample Temperature: 110 °C Direct, 75 eV
30.0 1.3 77.0 6.3 78.0 1.7 79.0 5.2 91.0 1.2 104.0 1.0 106.0 100.0 107.0 9.0 118.0 2.0 119.0 2.1 194.0 1.6 212.0 29.3 213.0 4.7
400 MHz in CDCl3
-
1H NMR 399.65 MHz C14 H16 N2 0.039 g : 0.5 ml CDCl3 2,2'-ethylenedianiline
Assign. Shift(ppm)
A 7.04 B 7.03 C 6.733 D 6.636 E 3.53 F 2.771
Hz ppm Int.2819.21 7.055 281 2817.50 7.050 80 2815.67 7.046 40 2811.52 7.035 382 2809.81 7.031 152 2803.96 7.017 148 2802.37 7.013 109 2698.73 6.753 127 2697.51 6.750 141 2691.41 6.735 208 2690.19 6.732 233 2683.96 6.716 107 2682.74 6.713 111 2656.62 6.648 187 2655.88 6.646 172 2655.27 6.644 152 2648.80 6.628 177 2647.71 6.626 146 1409.30 3.527 272 1107.42 2.771 1000
in CDCl3
KBr disc
nujol mull
