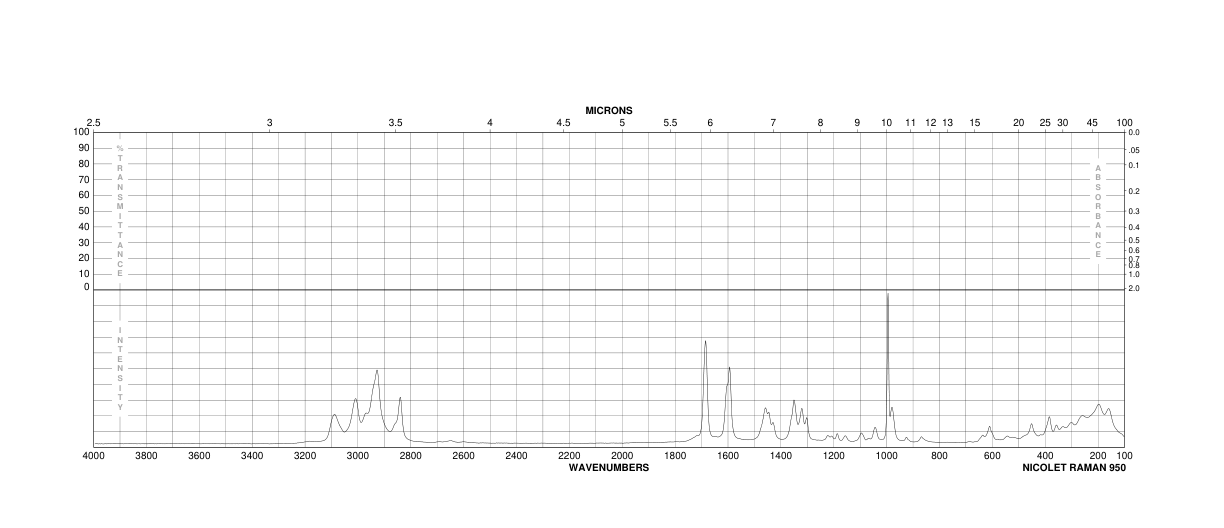

3',5'-Dimethoxyacetophenone(39151-19-4) Raman
Product Name3',5'-Dimethoxyacetophenone
CAS39151-19-4
Molecular FormulaC10H12O3
Molecular Weight180.2
InChIInChI=1S/C10H12O3/c1-7(11)8-4-9(12-2)6-10(5-8)13-3/h4-6H,1-3H3
InChIKey YJKHOUIVWKQRSL-UHFFFAOYSA-N
SmilesC(=O)(C1=CC(OC)=CC(OC)=C1)C
-

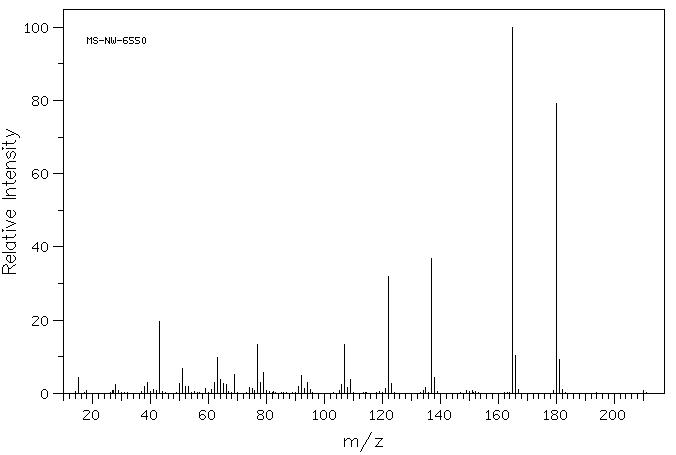

MassMS-NW-6550 3',5'-dimethoxyacetophenone C10H12O3 (Mass of molecular ion: 180)
Source Temperature: 260 °C Sample Temperature: 190 °C Reservoir, 75 eV
15.0 4.2 28.0 2.3 38.0 2.0 39.0 3.0 41.0 1.0 43.0 19.6 50.0 2.6 51.0 6.7 52.0 1.9 53.0 1.9 59.0 1.4 61.0 1.1 62.0 3.1 63.0 9.7 64.0 3.7 65.0 2.7 66.0 2.3 69.0 5.1 74.0 1.6 75.0 1.4 77.0 13.4 78.0 3.1 79.0 5.7 91.0 2.0 92.0 4.9 93.0 1.3 94.0 3.1 95.0 1.1 106.0 2.5 107.0 13.4 108.0 1.7 109.0 3.8 121.0 1.3 122.0 32.0 123.0 2.6 135.0 1.6 137.0 36.8 138.0 4.3 165.0 100.0 166.0 10.3 167.0 1.1 180.0 79.1 181.0 9.2 182.0 1.1
90 MHz in CDCl3
-
1H NMR 89.56 MHz C10 H12 O3 0.040 g : 0.5 ml CDCl3 3',5'-dimethoxyacetophenone
Assign. Shift(ppm)
A 7.084 B 6.646 C 3.829 D 2.565 J(A,B)=2.3HZ.
Hz ppm Int.635.63 7.098 176 633.31 7.072 194 597.38 6.671 45 595.06 6.645 76 592.75 6.619 36 342.94 3.830 1000 229.69 2.565 645
in CDCl3
liquid film
