2,2,2-Trifluoroethyl acrylate(407-47-6) MS
Product Name2,2,2-Trifluoroethyl acrylate
CAS407-47-6
Molecular FormulaC5H5F3O2
Molecular Weight154.09
InChIInChI=1S/C5H5F3O2/c1-2-4(9)10-3-5(6,7)8/h2H,1,3H2
InChIKey VBHXIMACZBQHPX-UHFFFAOYSA-N
SmilesC(OCC(F)(F)F)(=O)C=C
-

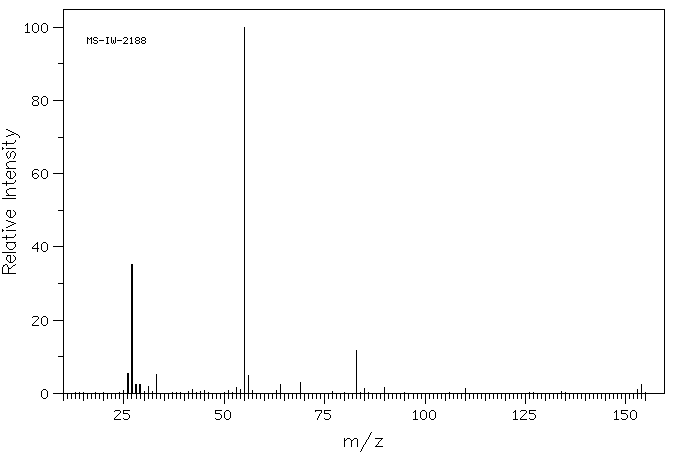

MassMS-IW-2188 2,2,2-trifluoroethyl acrylate C5H5F3O2 (Mass of molecular ion: 154)
Source Temperature: 220 °C Sample Temperature: 160 °C Reservoir, 75 eV
26.0 5.5 27.0 35.2 28.0 2.3 29.0 2.4 31.0 1.9 33.0 5.1 42.0 1.1 53.0 1.6 54.0 1.0 55.0 100.0 56.0 5.0 64.0 2.5 69.0 2.9 83.0 11.7 85.0 1.4 90.0 1.6 110.0 1.3 153.0 1.1 154.0 2.5

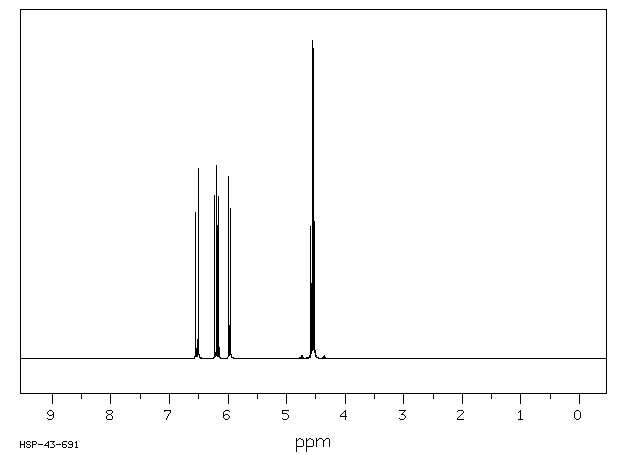

400 MHz in CDCl3
-
1H NMR 399.65 MHz C5 H5 F3 O2 0.05 ml : 0.5 ml CDCl3 2,2,2-trifluoroethyl acrylate
Assign. Shift(ppm)
A 6.526 B 6.191 C 5.973 D 4.552
Hz ppm Int.2618.65 6.553 459 2617.43 6.550 438 2601.32 6.509 597 2600.10 6.506 565 2488.04 6.226 512 2477.54 6.200 608 2470.70 6.183 417 2460.21 6.156 509 2392.70 5.987 574 2391.48 5.984 565 2384.03 5.966 25 2382.20 5.961 467 2380.98 5.958 471 1833.62 4.589 42 1831.91 4.584 414 1823.49 4.563 1000 1815.06 4.542 976 1806.52 4.521 430 1804.93 4.517 55
in CDCl3

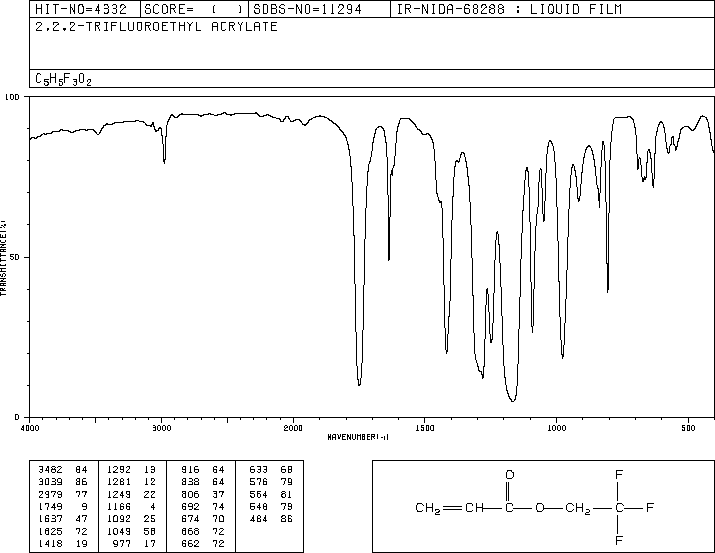

liquid film
