Mass

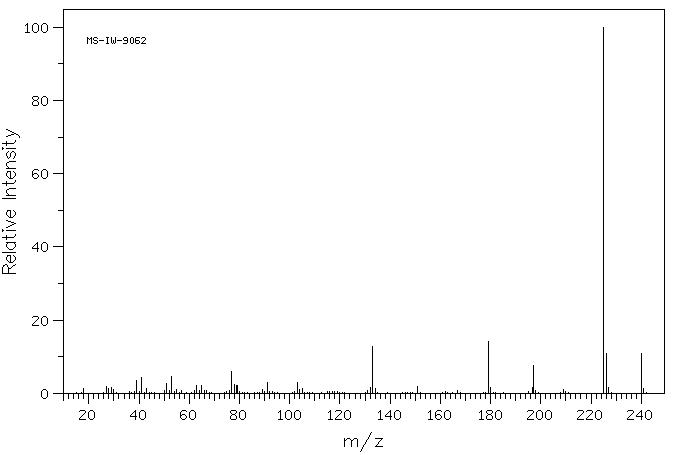

MS-IW-9062
4-tert-butyl-2,6-dinitrophenol
C10H12N2O5          (Mass of molecular ion:    240)

   Source Temperature: 160 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      18.0       1.3
      27.0       1.8
      28.0       1.2
      29.0       1.6
      30.0       1.0
      39.0       3.6
      41.0       4.2
      43.0       1.2
      51.0       2.6
      53.0       4.5
      55.0       1.1
      63.0       2.1
      65.0       2.2
      77.0       5.9
      78.0       2.3
      79.0       2.2
      89.0       1.1
      91.0       3.0
     103.0       3.0
     104.0       1.0
     105.0       1.4
     132.0       1.5
     133.0      12.7
     134.0       1.4
     151.0       1.8
     179.0      14.3
     180.0       1.6
     196.5       1.7
     197.0       7.5
     209.0       1.1
     225.0     100.0
     226.0      10.9
     227.0       1.6
     240.0      10.9
     241.0       1.3

Parameter ppm Hz D(A) 11.3 D(B) 8.337 D(C) 1.390

     Hz     ppm     Int.

   3390.00  11.300    111
   2501.11   8.337    222
    416.99   1.390   1000
