2,4-DINITROPHENYL ACETATE,95%(4232-27-3) IR2
Product Name2,4-DINITROPHENYL ACETATE,95%
CAS4232-27-3
Molecular FormulaC8H6N2O6
Molecular Weight226.14
-

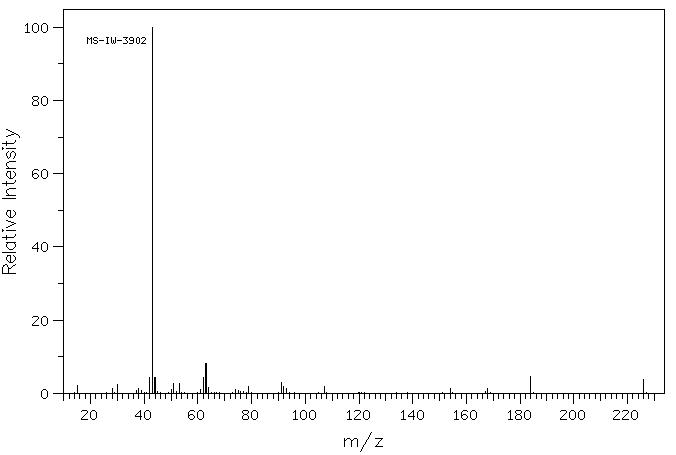

MassMS-IW-3902 2,4-dinitrophenyl acetate C8H6N2O6 (Mass of molecular ion: 226)
Source Temperature: 120 °C Sample Temperature: 110 °C Direct, 75 eV
15.0 2.2 28.0 1.4 30.0 2.4 38.0 1.3 42.0 4.2 43.0 100.0 44.0 4.2 50.0 1.1 51.0 2.6 53.0 2.8 61.0 1.1 62.0 4.3 63.0 8.1 64.0 1.6 74.0 1.1 79.0 2.0 91.0 3.0 92.0 2.0 93.0 1.2 107.0 1.9 154.0 1.4 168.0 1.4 184.0 4.6 226.0 3.8
400 MHz in CDCl3
-
1H NMR 399.65 MHz C8 H6 N2 O6 0.041 g : 0.5 ml CDCl3 2,4-dinitrophenyl acetate
Assign. Shift(ppm)
A 8.960 B 8.534 C 7.502 D 2.434 J(A,B)=2.7HZ J(A,C)=0.4HZ J(B,C)=8.9HZ
Hz ppm Int.3582.52 8.965 134 3579.83 8.958 142 3416.63 8.550 106 3413.94 8.543 105 3407.71 8.527 111 3405.03 8.521 111 3002.69 7.514 152 2993.77 7.491 147 973.02 2.435 1000 969.12 2.425 27
in CDCl3

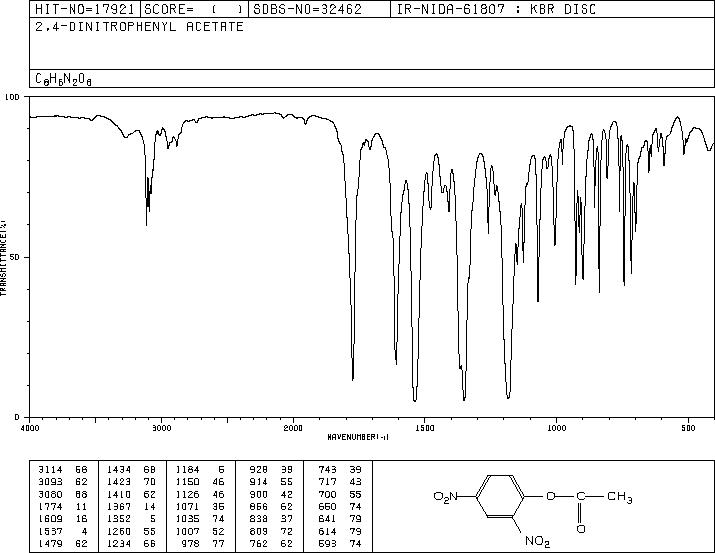

KBr disc

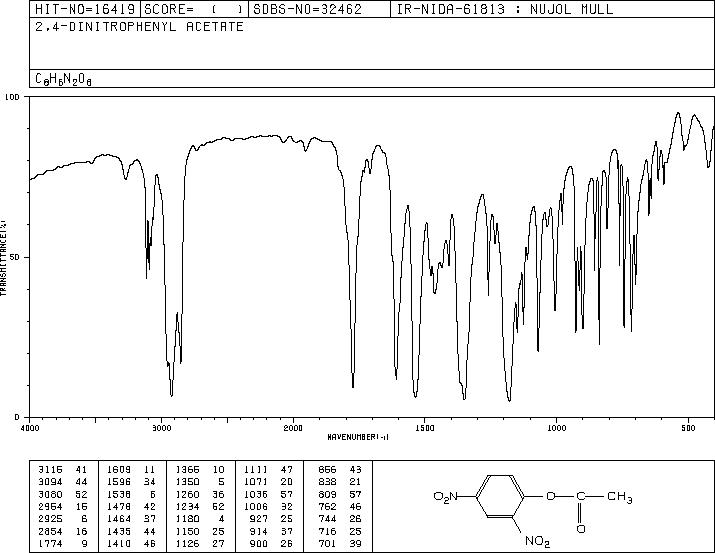

nujol mull
