BOC-Glycine(4530-20-5) IR1
Product NameBOC-Glycine
CAS4530-20-5
Molecular FormulaC7H13NO4
Molecular Weight175.18
InChIInChI=1S/C7H13NO4/c1-7(2,3)12-6(11)8-4-5(9)10/h4H2,1-3H3,(H,8,11)(H,9,10)
InChIKey VRPJIFMKZZEXLR-UHFFFAOYSA-N
SmilesC(O)(=O)CNC(OC(C)(C)C)=O
-

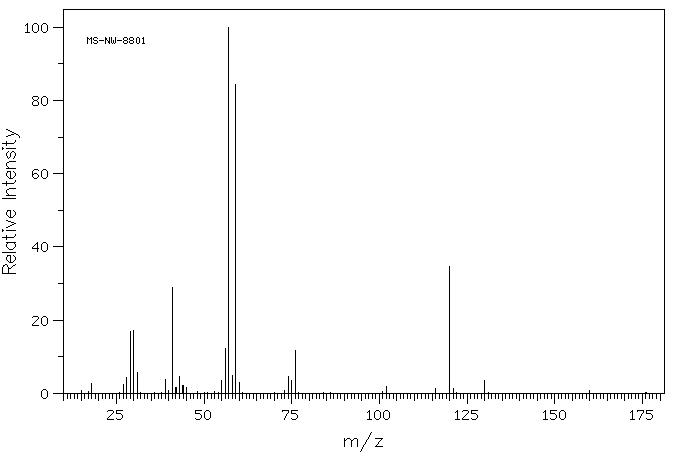

MassMS-NW-8801 N-(tert-butoxycarbonyl)glycine C7H13NO4 (Mass of molecular ion: 175)
Source Temperature: 160 °C Sample Temperature: 100 °C Direct, 75 eV
18.0 2.6 27.0 2.5 28.0 4.3 29.0 17.0 30.0 17.3 31.0 5.6 39.0 3.8 41.0 29.0 42.0 1.5 43.0 4.6 44.0 2.1 45.0 1.5 55.0 3.4 56.0 12.3 57.0 100.0 58.0 5.0 59.0 84.4 60.0 2.9 74.0 4.7 75.0 3.6 76.0 11.7 102.0 2.0 116.0 1.2 120.0 34.7 121.0 1.4 130.0 3.4

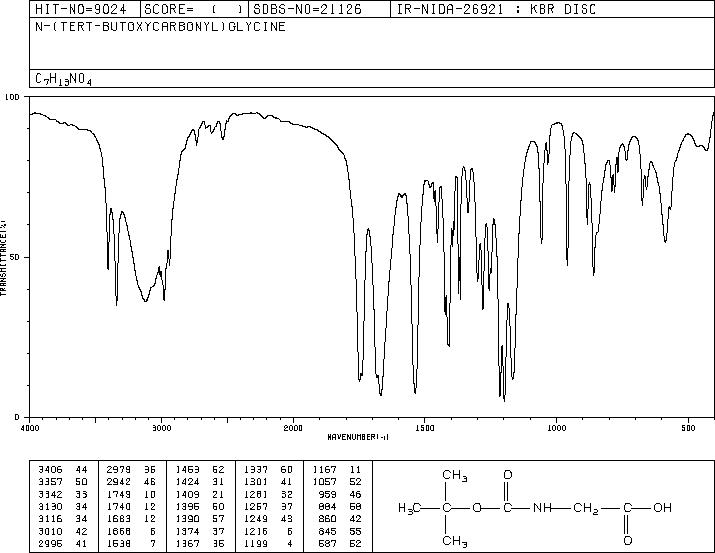

KBr disc

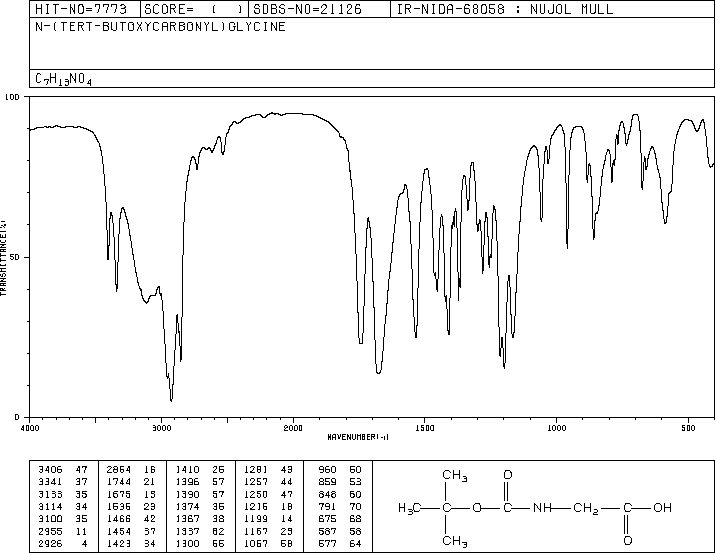

nujol mull
4880 A,200 M,powder
