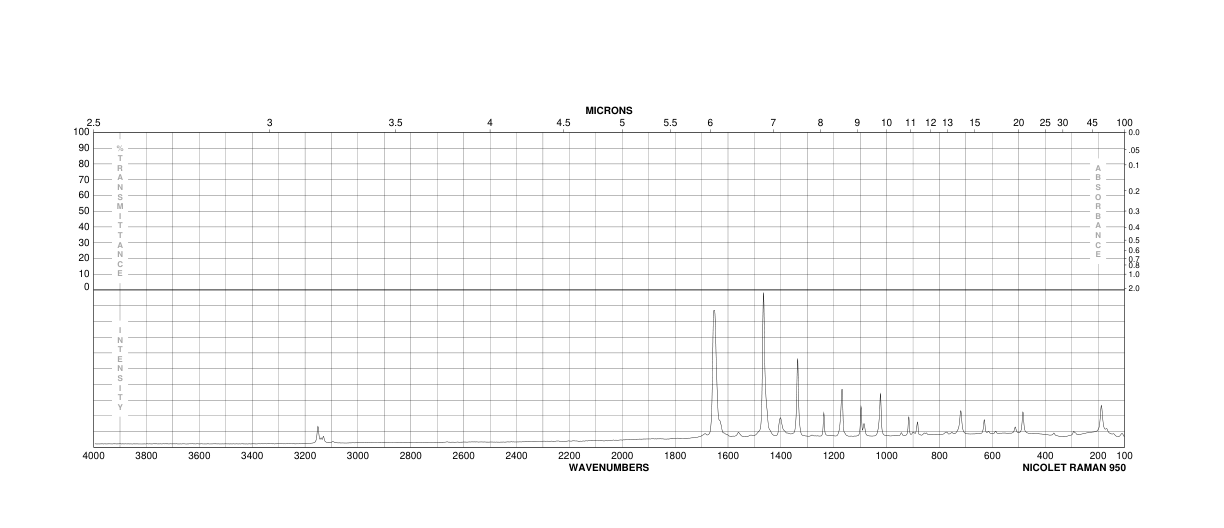

Furil(492-94-4) Raman
Molecular FormulaC10H6O4
Molecular Weight190.15
InChIInChI=1S/C10H6O4/c11-9(7-3-1-5-13-7)10(12)8-4-2-6-14-8/h1-6H
InChIKey SXPUVBFQXJHYNS-UHFFFAOYSA-N
SmilesC(C1=CC=CO1)(=O)C(C1=CC=CO1)=O
-

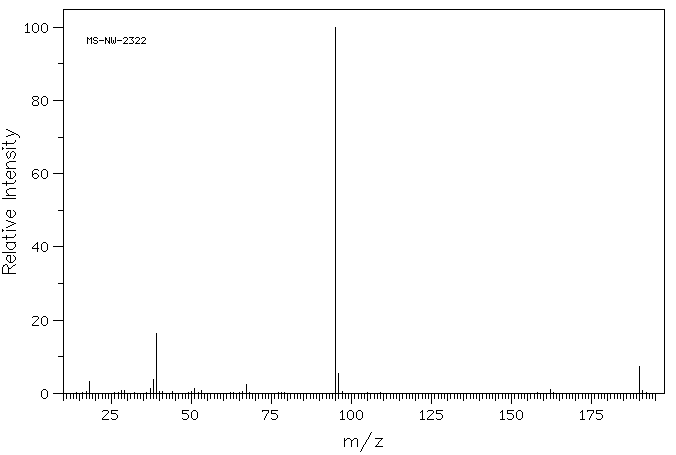

MassMS-NW-2322 2,2'-furil C10H6O4 (Mass of molecular ion: 190)
Source Temperature: 300 °C Sample Temperature: 170 °C Reservoir, 75 eV
18.0 3.3 37.0 1.4 38.0 3.7 39.0 16.4 51.0 1.3 67.0 2.4 95.0 100.0 96.0 5.5 162.0 1.1 190.0 7.3
90 MHz in CDCl3
-
1H NMR 89.56 MHz C10 H6 O4 0.038 g : 0.5 ml CDCl3 2,2'-furil
Assign. Shift(ppm)
A 7.793 B 7.639 C 6.646
Hz ppm Int.699.25 7.808 792 698.50 7.800 906 697.56 7.789 864 696.75 7.780 908 695.50 7.766 57 693.88 7.748 29 686.44 7.665 886 685.69 7.657 817 684.44 7.643 58 682.75 7.624 1000 682.00 7.616 894 597.81 6.675 922 596.13 6.657 898 594.13 6.634 852 592.44 6.616 850
in CDCl3

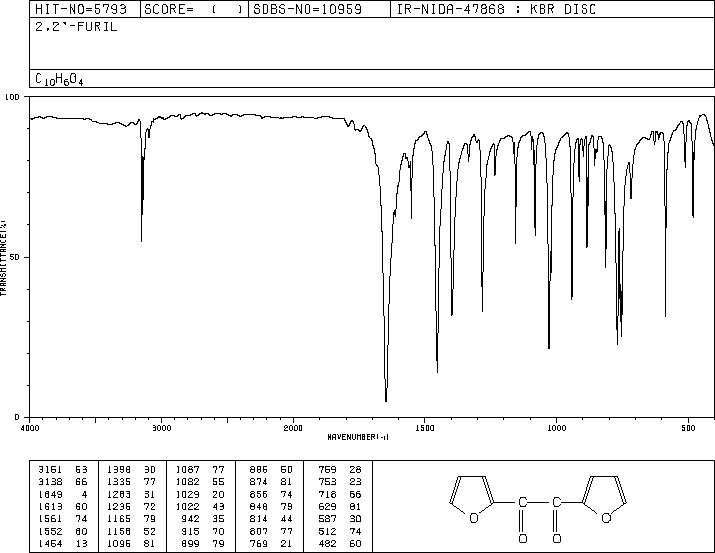

KBr disc

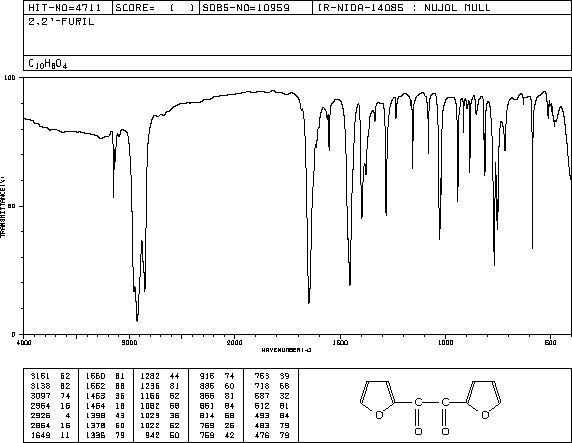

nujol mull
