Ethyl 2-chloropropionate(535-13-7) Raman
Product NameEthyl 2-chloropropionate
CAS535-13-7
Molecular FormulaC5H9ClO2
Molecular Weight136.58
InChIInChI=1S/C5H9ClO2/c1-3-8-5(7)4(2)6/h4H,3H2,1-2H3
InChIKey JEAVBVKAYUCPAQ-UHFFFAOYSA-N
SmilesC(OCC)(=O)C(Cl)C
-

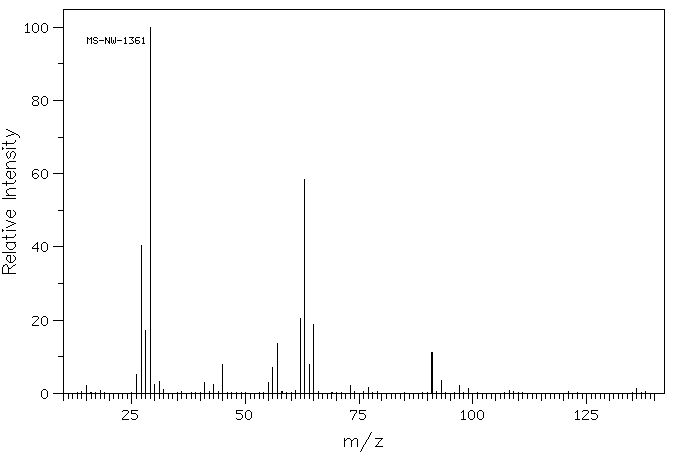

MassMS-NW-1361 ethyl 2-chloropropionate C5H9ClO2 (Mass of molecular ion: 136)
Source Temperature: 260 °C Sample Temperature: 180 °C Reservoir, 75 eV
15.0 2.2 26.0 5.2 27.0 40.4 28.0 17.1 29.0 100.0 30.0 2.3 31.0 3.3 32.0 1.1 41.0 2.9 43.0 2.5 45.0 7.8 55.0 3.1 56.0 7.1 57.0 13.5 62.0 20.4 63.0 58.3 64.0 7.8 65.0 18.7 73.0 2.2 77.0 1.5 91.0 11.1 93.0 3.6 97.0 2.2 99.0 1.3 136.0 1.3
90 MHz in CDCl3
-
1H NMR 89.56 MHz C5 H9 Cl O2 0.04 ml : 0.5 ml CDCl3 ethyl 2-chloropropionate
Assign. Shift(ppm)
A 4.368 B 4.242 C 1.692 D 1.312
Hz ppm Int.403.63 4.507 64 396.56 4.428 191 390.38 4.359 113 389.63 4.351 209 383.25 4.280 370 376.13 4.200 399 369.06 4.121 125 154.88 1.730 1000 152.56 1.704 30 147.94 1.652 935 124.31 1.389 406 122.56 1.369 44 117.31 1.310 923 110.06 1.229 355
CCl4 solution
liquid film

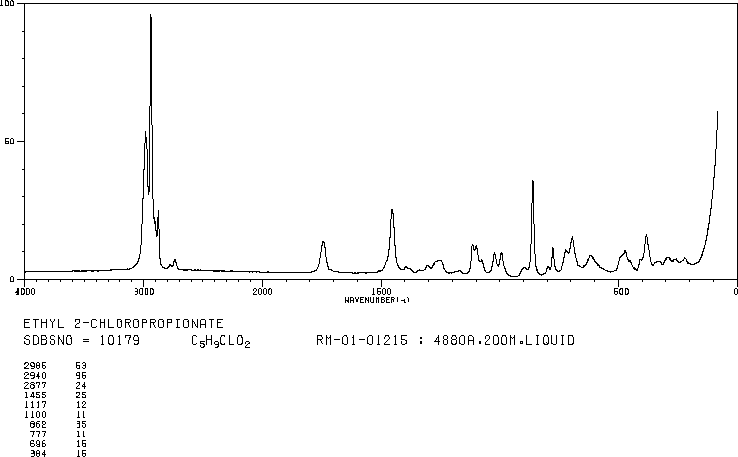

4880 A,200 M,liquid
