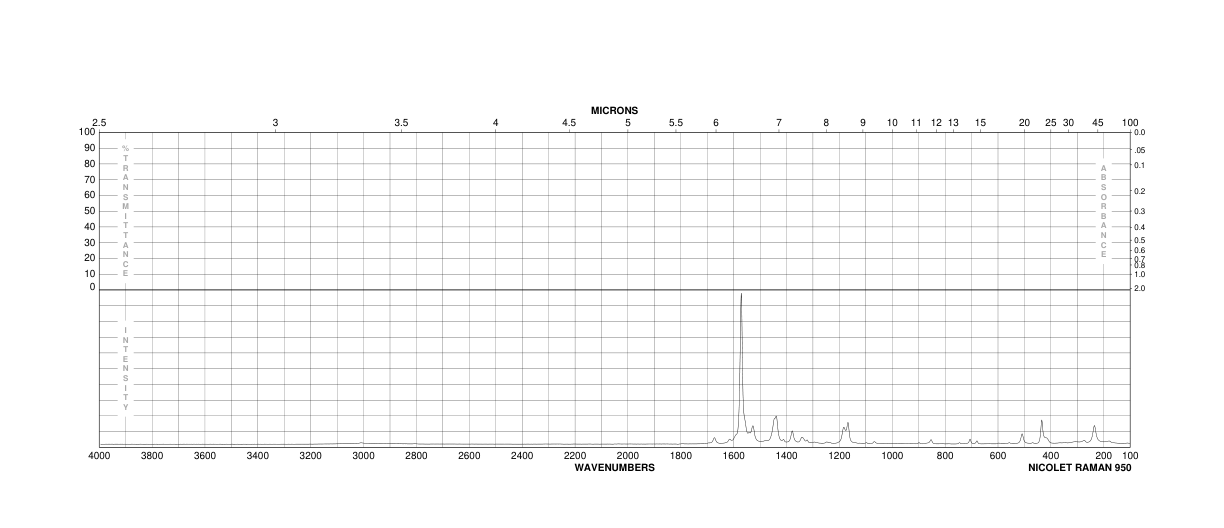

5-(4-DIMETHYLAMINOBENZYLIDENE)RHODANINE(536-17-4) Raman
Product Name5-(4-DIMETHYLAMINOBENZYLIDENE)RHODANINE
CAS536-17-4
Molecular FormulaC12H12N2OS2
Molecular Weight264.37
InChIInChI=1S/C12H12N2OS2/c1-14(2)9-5-3-8(4-6-9)7-10-11(15)13-12(16)17-10/h3-7H,1-2H3,(H,13,15,16)
InChIKey JJRVRELEASDUMY-UHFFFAOYSA-N
SmilesS1C(=CC2=CC=C(N(C)C)C=C2)C(=O)NC1=S
-

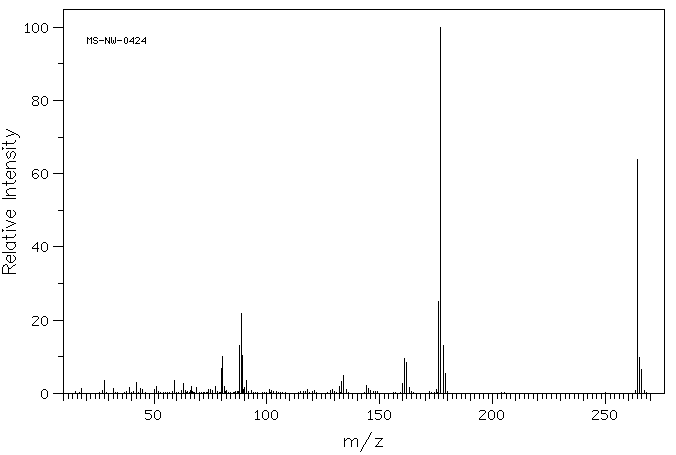

MassMS-NW-0424 5-(4-(dimethylamino)benzylidene)rhodanine C12H12N2OS2 (Mass of molecular ion: 264)
Source Temperature: 210 °C Sample Temperature: 160 °C Direct, 75 eV
18.0 1.2 28.0 3.4 32.0 1.4 39.0 1.6 42.0 2.9 44.0 1.2 45.0 1.0 50.0 1.1 51.0 1.8 59.0 3.4 63.0 2.7 66.5 2.0 69.0 1.5 74.0 1.0 75.0 1.1 77.0 1.8 80.0 6.9 80.5 10.1 81.0 1.8 88.0 13.0 88.5 21.9 89.0 10.4 89.5 1.1 90.0 1.6 91.0 3.4 101.0 1.0 118.0 1.1 129.0 1.1 132.0 1.9 133.0 3.3 134.0 4.8 135.0 1.1 144.0 2.1 145.0 1.2 160.0 2.8 161.0 9.6 162.0 8.5 163.0 1.6 175.0 1.0 176.0 25.2 177.0 100.0 178.0 13.2 179.0 5.3 264.0 64.0 265.0 9.7 266.0 6.4

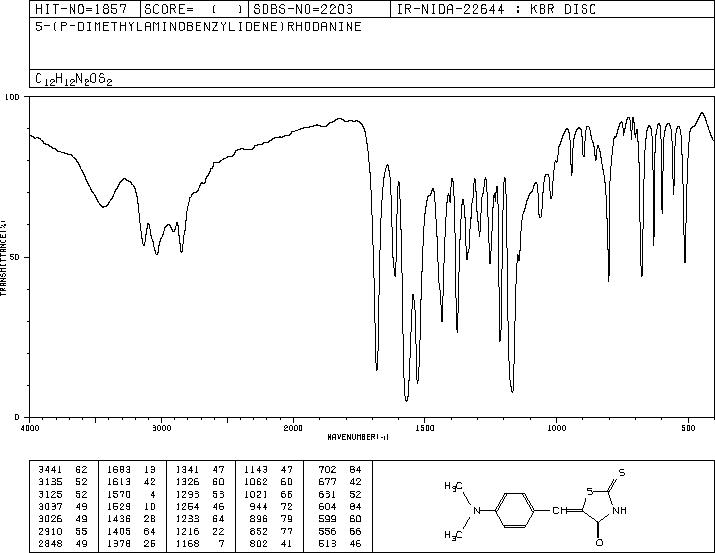

KBr disc

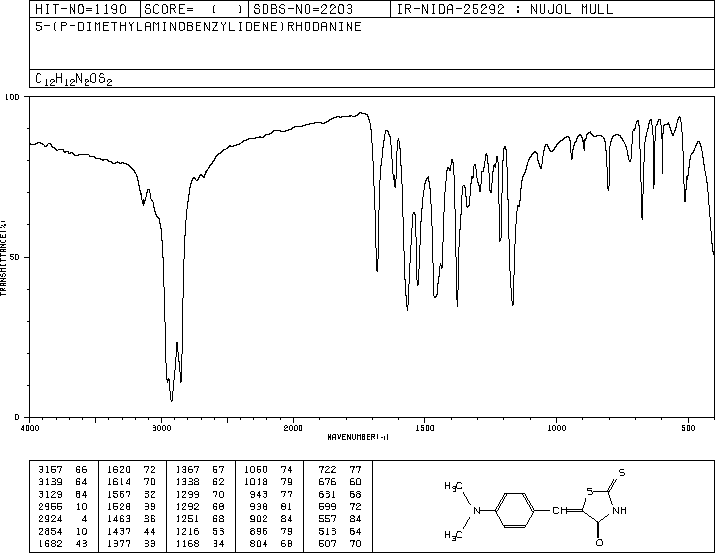

nujol mull
