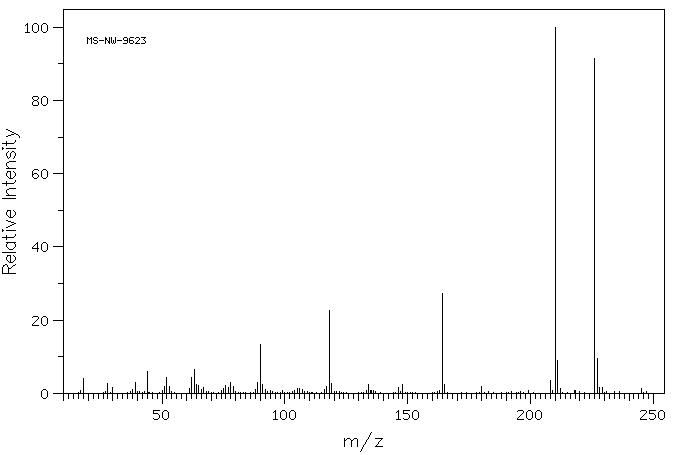

Mass

MS-NW-9623
4-amino-3,5-dinitrobenzamide
C7H6N4O5            (Mass of molecular ion:    226)

   Source Temperature: 230 °C
   Sample Temperature: 160 °C
   Direct, 75 eV

      18.0       4.0
      28.0       2.6
      30.0       1.6
      38.0       1.0
      39.0       3.1
      44.0       6.1
      51.0       2.0
      52.0       4.2
      53.0       1.9
      61.0       1.4
      62.0       4.4
      63.0       6.5
      64.0       2.4
      65.0       2.1
      66.0       1.1
      67.0       1.5
      75.0       1.3
      76.0       2.1
      77.0       1.6
      78.0       3.0
      79.0       1.9
      88.0       1.0
      89.0       2.9
      90.0      13.4
      91.0       2.4
      92.0       1.1
     105.0       1.2
     106.0       1.2
     107.0       1.0
     116.0       1.1
     117.0       2.0
     118.0      22.6
     119.0       2.7
     134.0       2.3
     146.0       1.6
     148.0       2.3
     164.0      27.3
     165.0       2.5
     180.0       1.8
     208.0       3.5
     210.0     100.0
     211.0       9.0
     212.0       1.4
     226.0      91.5
     227.0       9.6
     228.0       1.5
     229.0       1.7
     245.0       1.3
