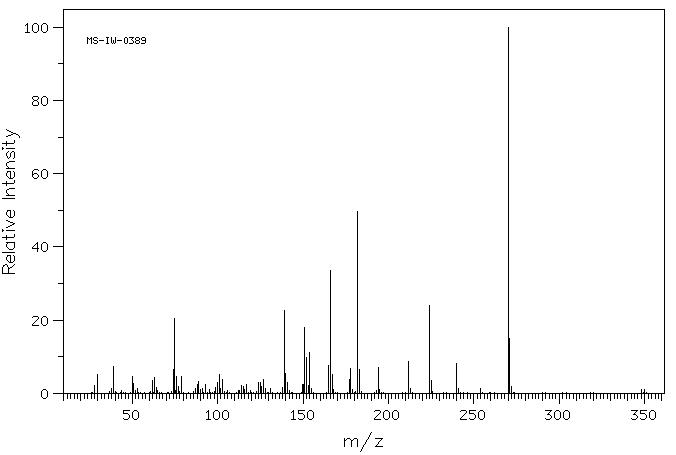

Mass

MS-IW-0389
1,9-dinitrophenazine
C12H6N4O4           (Mass of molecular ion:    270)

   Source Temperature: 190 °C
   Sample Temperature: 170 °C
   Direct, 75 eV

      28.0       2.1
      30.0       5.1
      38.0       1.4
      39.0       7.4
      50.0       4.7
      51.0       2.6
      53.0       1.3
      62.0       3.5
      63.0       4.4
      64.0       1.7
      74.0       6.5
      75.0      20.5
      76.0       4.6
      77.0       1.9
      79.0       4.7
      87.0       1.2
      88.0       2.5
      89.0       3.3
      90.0       1.0
      91.0       1.3
      93.0       2.3
      95.0       1.1
      99.0       1.6
     100.0       3.0
     101.0       5.1
     102.0       1.2
     103.0       3.8
     114.0       2.2
     115.0       1.8
     116.0       1.0
     117.0       2.3
     124.0       3.0
     125.0       2.9
     126.0       1.8
     127.0       3.8
     128.0       1.3
     131.0       1.3
     138.0       1.5
     139.0      22.6
     140.0       5.3
     141.0       3.1
     150.0       2.4
     151.0      18.1
     152.0       9.8
     153.0       2.2
     154.0      11.2
     155.0       1.4
     165.0       7.7
     166.0      33.6
     167.0       5.2
     168.0       1.0
     177.0       3.9
     178.0       6.8
     179.0       1.1
     182.0      49.8
     183.0       6.4
     194.0       7.0
     195.0       1.1
     212.0       8.6
     213.0       1.2
     224.0      24.1
     225.0       3.6
     240.0       8.2
     241.0       1.3
     254.0       1.2
     270.0     100.0
     271.0      14.9
     272.0       1.9
     348.0       1.0
     350.0       1.0
