613-12-7

2-METHYLANTHRACENE(613-12-7) MS

Product Name2-METHYLANTHRACENE

CAS 613-12-7

Molecular FormulaC15H12

Molecular Weight192.26

InChIInChI=1S/C15H12/c1-11-6-7-14-9-12-4-2-3-5-13(12)10-15(14)8-11/h2-10H,1H3

InChIKey GYMFBYTZOGMSQJ-UHFFFAOYSA-N

SmilesC1=C2C(C=C3C(=C2)C=CC=C3)=CC=C1C

Request For Quotation

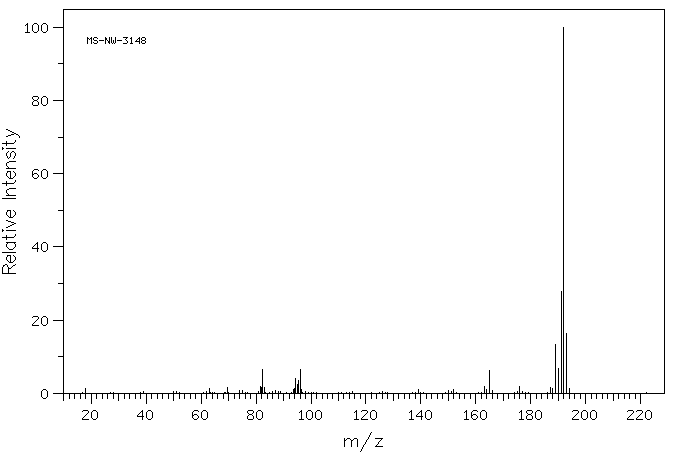

2-METHYLANTHRACENE(613-12-7) MS
Mass

MS-NW-3148
2-methylanthracene
C15H12              (Mass of molecular ion:    192)

   Source Temperature: 190 °C
   Sample Temperature: 120 °C
   Direct, 75 eV

      18.0       1.3
      63.0       1.2
      69.5       1.5
      81.5       1.9
      82.0       1.6
      82.5       6.6
      83.0       1.6
      93.5       1.1
      94.0       1.3
      94.5       4.1
      95.0       2.3
      95.5       3.5
      96.0       6.5
      96.5       1.1
     139.0       1.0
     152.0       1.0
     163.0       2.0
     164.0       1.1
     165.0       6.2
     176.0       1.8
     187.0       1.5
     188.0       1.3
     189.0      13.3
     190.0       6.7
     191.0      27.8
     192.0     100.0
     193.0      16.3
     194.0       1.3

400 MHz in CDCl3

2-METHYLANTHRACENE(613-12-7) MS

¹H NMR	399.65 MHz
C₁₅ H₁₂	11.3 mg : 0.5 ml CDCl₃
2-methylanthracene

    Assign.     Shift(ppm)

      A     *1      8.363
      B     *1      8.300
      C             7.97
      D             7.900
      E             7.737
      F     *2      7.43
      G     *2      7.42
      J             7.296
      K             2.535

     J(D,J)=8.6HZ. J(J,E)=1.6HZ.

     Hz     ppm     Int.

   3342.41   8.364    284
   3317.14   8.301    284
   3192.14   7.988     36
   3190.19   7.983    104
   3189.09   7.980    247
   3185.42   7.971    136
   3184.33   7.968    140
   3183.11   7.965    142
   3179.32   7.956    262
   3161.74   7.912    174
   3153.08   7.890    186
   3092.04   7.737    212
   3091.67   7.736    210
   3091.06   7.735    197
   2980.10   7.457     33
   2978.03   7.452     59
   2973.51   7.441    221
   2971.80   7.437    332
   2967.77   7.426    381
   2963.75   7.416    309
   2962.16   7.412    208
   2957.52   7.401     55
   2955.57   7.396     32
   2920.90   7.309    152
   2919.19   7.305    155
   2912.11   7.287    146
   2910.52   7.283    142
   1013.43   2.536   1000
   1012.57   2.534    998

in CDCl3
