N,N-Dibenzylhydroxylamine(621-07-8) Raman
Product NameN,N-Dibenzylhydroxylamine
CAS621-07-8
Molecular FormulaC14H15NO
Molecular Weight213.27
InChIInChI=1S/C14H15NO/c16-15(11-13-7-3-1-4-8-13)12-14-9-5-2-6-10-14/h1-10,16H,11-12H2
InChIKey GXELTROTKVKZBQ-UHFFFAOYSA-N
SmilesC1(CN(O)CC2=CC=CC=C2)=CC=CC=C1
-

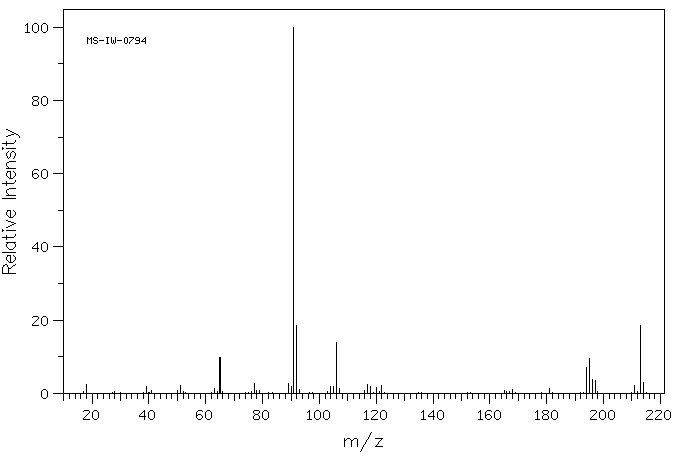

MassMS-IW-0794 N,N-dibenzylhydroxylamine C14H15NO (Mass of molecular ion: 213)
Source Temperature: 130 °C Sample Temperature: 110 °C Direct, 75 eV
18.0 2.3 39.0 2.0 51.0 2.1 63.0 1.4 65.0 9.7 77.0 2.8 89.0 2.6 90.0 1.8 91.0 100.0 92.0 18.6 93.0 1.1 104.0 1.9 105.0 1.8 106.0 13.8 107.0 1.2 117.0 2.3 118.0 2.0 120.0 1.6 122.0 2.2 168.0 1.0 181.0 1.2 194.0 7.2 195.0 9.5 196.0 3.8 197.0 3.4 211.0 2.1 213.0 18.5 214.0 3.0

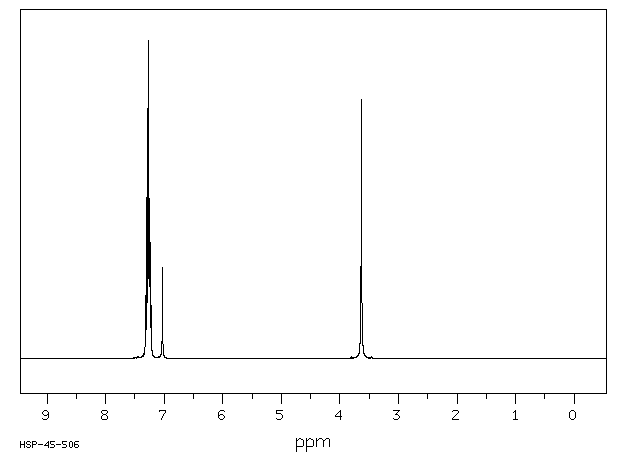

400 MHz in CDCl3
-
1H NMR 399.65 MHz C14 H15 N O 0.033 g : 0.5 ml CDCl3 N,N-dibenzylhydroxylamine
Assign. Shift(ppm)
A 7.30 to 7.25 B 7.03 C 3.631
Hz ppm Int.2925.17 7.320 139 2923.95 7.317 197 2922.36 7.313 118 2917.97 7.302 366 2916.87 7.299 505 2915.53 7.296 433 2912.35 7.288 290 2909.91 7.282 786 2903.32 7.265 1000 2900.02 7.257 478 2898.80 7.254 431 2896.61 7.248 505 2894.78 7.244 337 2891.72 7.236 365 2888.55 7.228 117 2886.72 7.224 167 2885.01 7.219 123 2883.30 7.215 72 2808.84 7.029 287 1451.29 3.632 814
in CDCl3

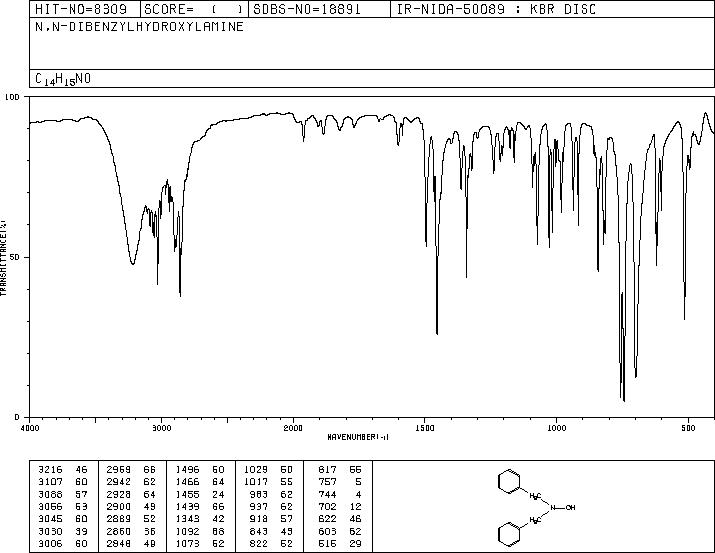

KBr disc

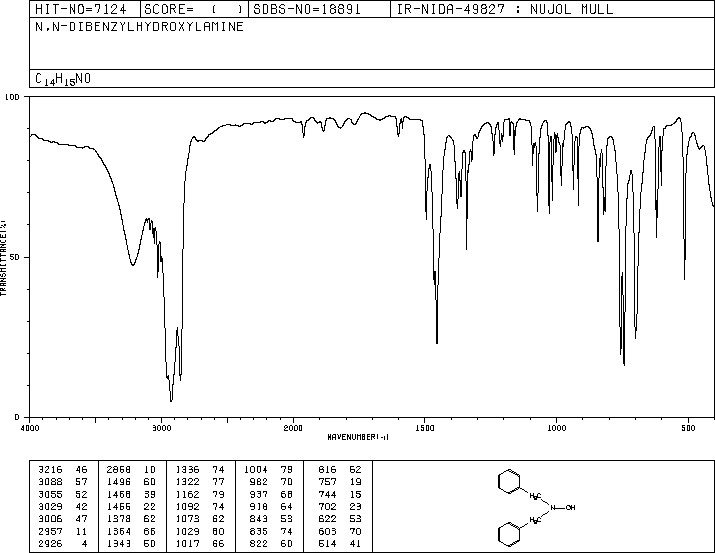

nujol mull

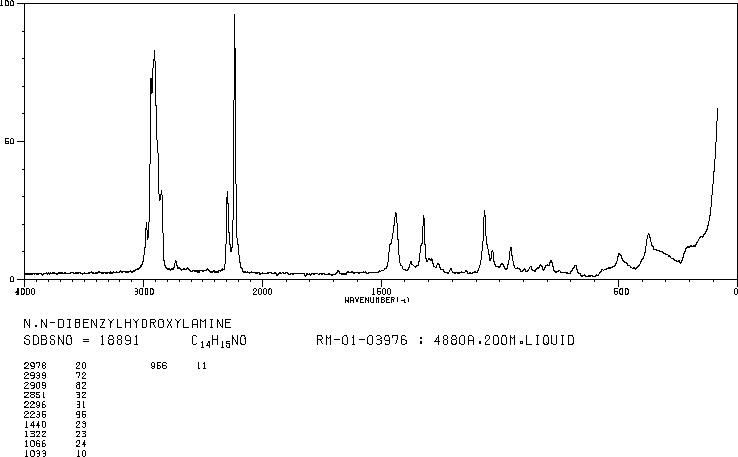

4880 A,200 M,liquid
