1,4-DIPHENYLSEMICARBAZIDE(621-12-5) 13C NMR
Product Name1,4-DIPHENYLSEMICARBAZIDE
CAS621-12-5
Molecular FormulaC13H13N3O
Molecular Weight227.26
InChIInChI=1S/C13H13N3O/c17-13(14-11-7-3-1-4-8-11)16-15-12-9-5-2-6-10-12/h1-10,15H,(H2,14,16,17)
InChIKey NGZZNUMYERKSQA-UHFFFAOYSA-N
SmilesN(C(NC1=CC=CC=C1)=O)NC1=CC=CC=C1
-

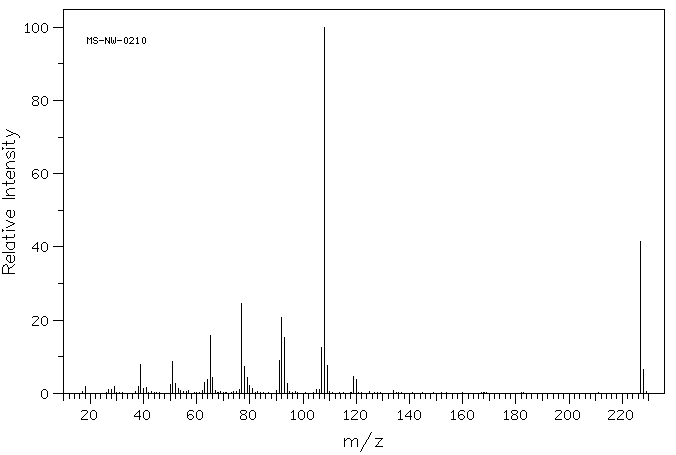

MassMS-NW-0210 1,4-diphenylsemicarbazide C13H13N3O (Mass of molecular ion: 227)
Source Temperature: 190 °C Sample Temperature: 0 °C Direct, 75 eV
18.0 2.0 27.0 1.1 28.0 1.1 29.0 1.9 38.0 1.9 39.0 7.8 40.0 1.2 41.0 1.7 50.0 2.3 51.0 8.7 52.0 2.6 53.0 1.2 63.0 3.1 64.0 3.9 65.0 15.8 66.0 4.2 76.0 1.0 77.0 24.5 78.0 7.3 79.0 4.2 80.0 2.1 81.0 1.2 91.0 9.0 92.0 20.6 93.0 15.3 94.0 2.8 105.0 1.0 106.0 1.1 107.0 12.5 108.0 100.0 109.0 7.6 119.0 4.5 120.0 3.7 227.0 41.4 228.0 6.6
in CDCl3
KBr disc

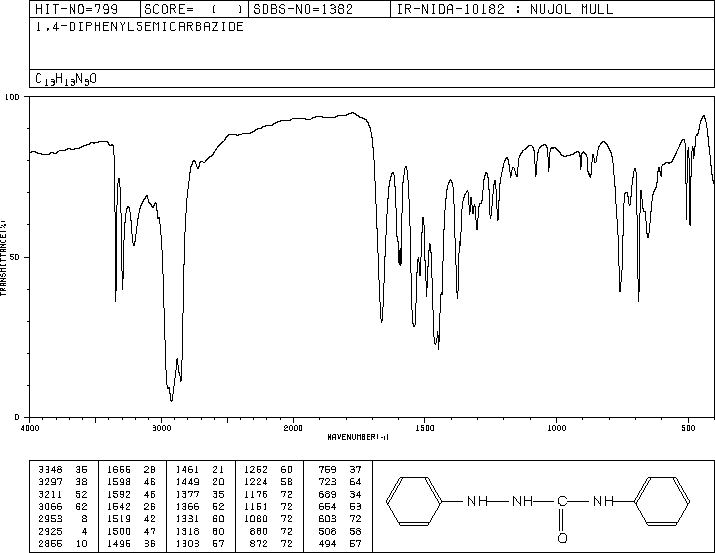

nujol mull
