Dimethyl maleate(624-48-6) 13C NMR
Product NameDimethyl maleate
CAS624-48-6
Molecular FormulaC6H8O4
Molecular Weight144.13
InChIInChI=1S/C6H8O4/c1-9-5(7)3-4-6(8)10-2/h3-4H,1-2H3/b4-3-
InChIKey LDCRTTXIJACKKU-ARJAWSKDSA-N
SmilesC(OC)(=O)/C=C\C(OC)=O
-
MassMS-NW-0060 dimethyl maleate C6H8O4 (Mass of molecular ion: 144)
Source Temperature: 230 °C Sample Temperature: 55 °C Reservoir, 75 eV
15.0 10.4 18.0 1.2 26.0 5.4 27.0 1.6 28.0 1.1 29.0 2.6 39.0 1.2 41.0 1.0 53.0 3.1 54.0 5.0 55.0 2.3 59.0 17.8 82.0 2.1 85.0 9.6 113.0 100.0 114.0 8.0 115.0 1.0
parameter in CDCl3
-
1H NMR 300 MHz C6 H8 O4 9.9 mol% in CDCl3 dimethyl maleate
Parameter ppm Hz
D(A) 3.725 D(B) 6.204
Hz ppm Int.1861.20 6.204 333 1117.49 3.725 1000
in CDCl3

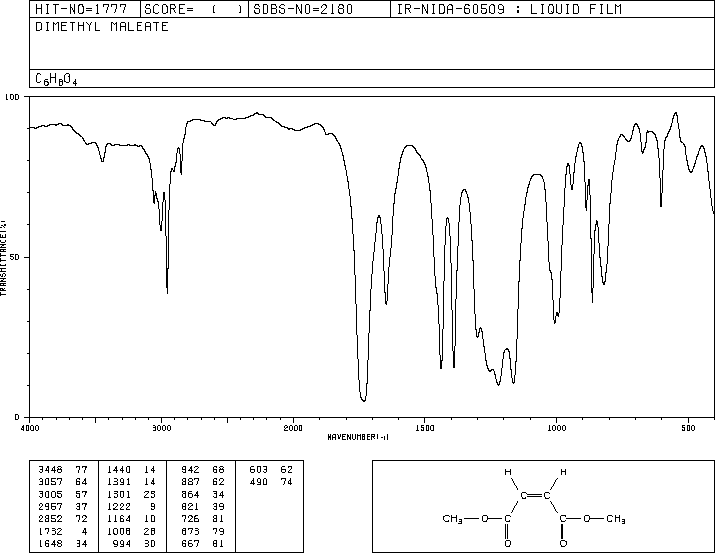

liquid film

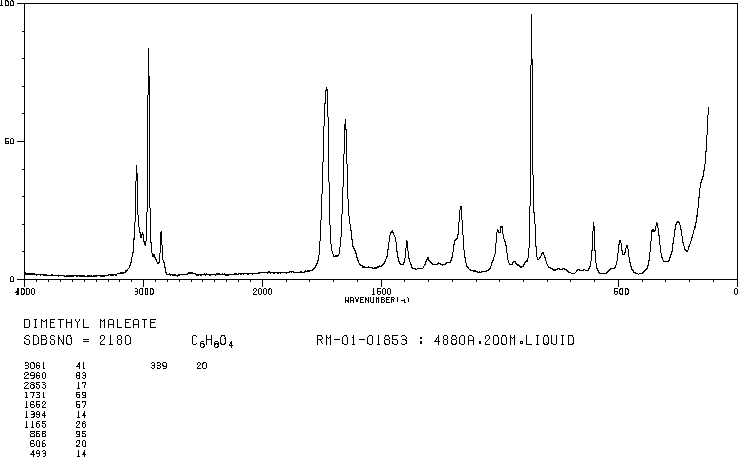

4880 A,200 M,liquid
