Tridecane(629-50-5) 1H NMR
Molecular FormulaC13H28
Molecular Weight184.36
InChIInChI=1S/C13H28/c1-3-5-7-9-11-13-12-10-8-6-4-2/h3-13H2,1-2H3
InChIKey IIYFAKIEWZDVMP-UHFFFAOYSA-N
SmilesCCCCCCCCCCCCC
-
MassMS-NW-5091 tridecane C13H28 (Mass of molecular ion: 184)
Source Temperature: 270 °C Sample Temperature: 190 °C Reservoir, 75 eV
27.0 8.0 28.0 1.1 29.0 16.8 39.0 4.1 41.0 25.2 42.0 8.8 43.0 82.3 44.0 2.9 53.0 1.2 54.0 1.1 55.0 11.8 56.0 13.0 57.0 100.0 58.0 4.7 69.0 5.5 70.0 10.5 71.0 54.8 72.0 3.2 83.0 2.7 84.0 6.0 85.0 31.8 86.0 2.4 97.0 1.4 98.0 4.2 99.0 5.8 112.0 2.5 113.0 3.7 126.0 1.6 127.0 3.1 141.0 2.0 155.0 1.1 184.0 2.2
90 MHz in CDCl3
-
1H NMR 89.56 MHz C13 H28 0.04 ml : 0.5 ml CDCl3 tridecane
Assign. Shift(ppm)
A 1.26 B 0.89
Hz ppm Int.112.88 1.261 1000 83.81 0.936 41 78.75 0.880 117 72.63 0.811 28
in CDCl3

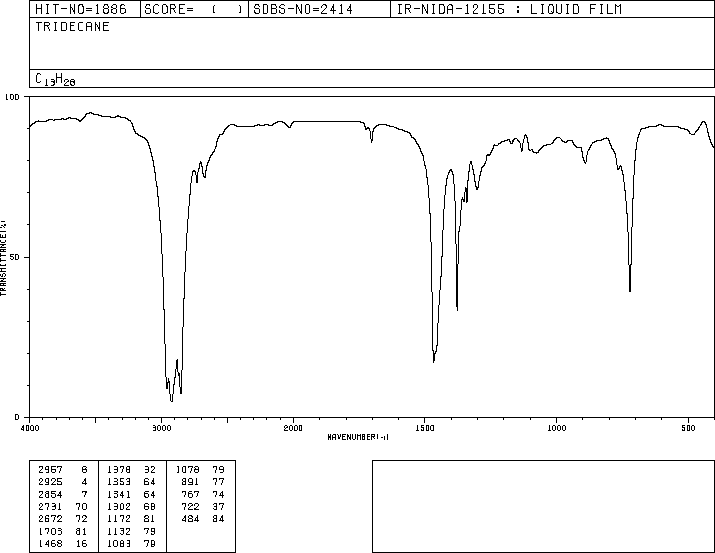

liquid film

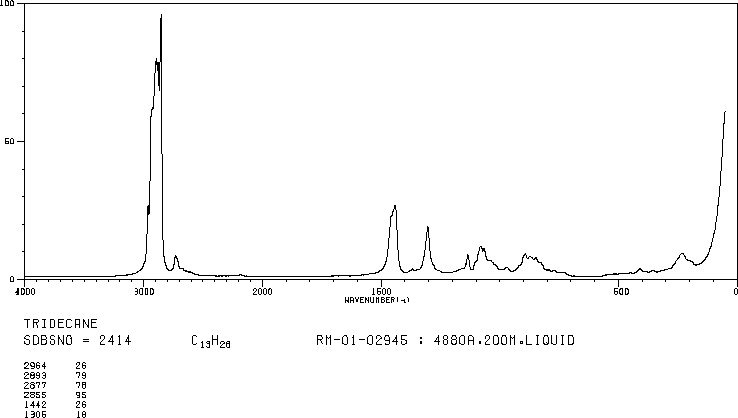

4880 A,200 M,liquid
