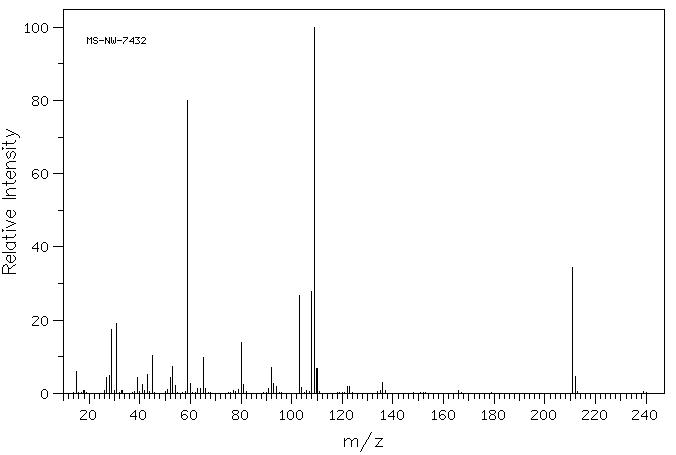

Mass

MS-NW-7432
p-(2-(2-methoxyethoxy)ethoxy)aniline
C11H17NO3           (Mass of molecular ion:    211)

   Source Temperature: 170 °C
   Sample Temperature: 120 °C
   Direct, 75 eV

      15.0       5.9
      27.0       4.3
      28.0       4.9
      29.0      17.4
      31.0      19.2
      39.0       4.2
      41.0       2.4
      43.0       5.1
      45.0      10.4
      51.0       1.1
      52.0       4.4
      53.0       7.3
      54.0       2.2
      59.0      80.0
      60.0       2.7
      63.0       1.3
      64.0       1.4
      65.0       9.7
      66.0       1.4
      79.0       1.1
      80.0      13.8
      81.0       2.4
      91.0       1.3
      92.0       7.0
      93.0       2.7
      94.0       1.9
     103.0      26.7
     104.0       1.5
     108.0      27.7
     109.0     100.0
     110.0       6.9
     122.0       1.9
     123.0       1.9
     136.0       2.9
     211.0      34.4
     212.0       4.6

Assign. Shift(ppm) A 6.71 B 6.58 C 4.020 D 3.78 E 3.67 F 3.54 G 3.41 J 3.357

     Hz     ppm     Int.

    607.94   6.789     68
    607.25   6.781     50
    605.13   6.757     39
    601.50   6.717     64
    598.81   6.687    253
    596.31   6.659     65
    594.31   6.636     76
    591.88   6.609    250
    589.13   6.579     61
    585.50   6.538     45
    583.38   6.514     60
    582.69   6.507     66
    366.31   4.091     49
    365.19   4.078     50
    361.81   4.040    105
    359.38   4.013     80
    356.44   3.980    110
    355.56   3.971    100
    343.13   3.832    113
    342.25   3.822    108
    339.25   3.788     88
    337.25   3.766    108
    336.81   3.761    105
    335.25   3.744     60
    333.38   3.723     98
    332.25   3.710     83
    330.63   3.692     90
    329.19   3.676     87
    327.50   3.657    131
    325.81   3.638    167
    325.06   3.630    166
    321.13   3.586    180
    320.44   3.578    160
    318.69   3.559    125
    317.06   3.541     94
    315.63   3.525     90
    314.31   3.510     66
    312.94   3.495     68
    310.94   3.472     66
    300.81   3.359   1000
