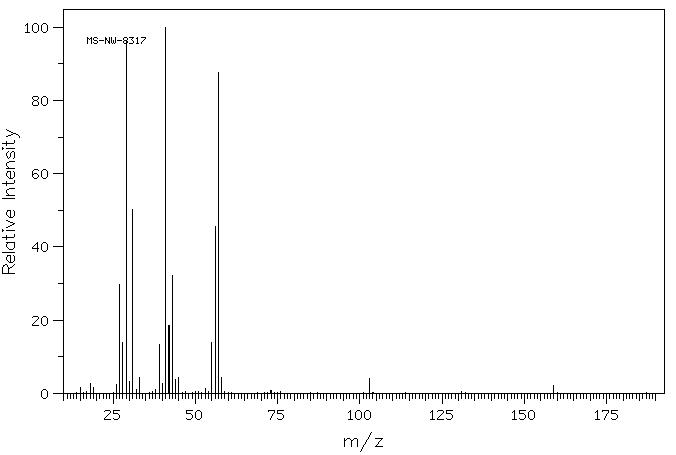

Mass

MS-NW-8317
butyl 2-butoxy-2-hydroxyacetate
C10H20O4            (Mass of molecular ion:    204)

   Source Temperature: 260 °C
   Sample Temperature: 130 °C
   Reservoir, 75 eV

      15.0       1.6
      18.0       2.6
      19.0       1.6
      26.0       2.4
      27.0      29.7
      28.0      14.0
      29.0      96.1
      30.0       3.3
      31.0      50.3
      32.0       1.1
      33.0       4.2
      38.0       1.0
      39.0      13.4
      40.0       2.8
      41.0     100.0
      42.0      18.6
      43.0      32.3
      44.0       3.8
      45.0       4.4
      53.0       1.2
      55.0      14.0
      56.0      45.7
      57.0      87.7
      58.0       4.4
     103.0       4.0
     159.0       2.1

Assign. Shift(ppm) A 4.930 B 4.223 C *1 3.782 D *1 3.583 E 1.677 F 1.598 G 1.396 K 0.944 L 0.922

     Hz     ppm     Int.

   1970.34   4.931    630
   1694.70   4.241    304
   1687.99   4.224    575
   1681.27   4.207    312
   1523.56   3.813     69
   1516.85   3.796    139
   1514.04   3.789     88
   1510.13   3.779     74
   1507.32   3.772    166
   1500.61   3.755     80
   1442.87   3.611     87
   1436.28   3.594    176
   1433.47   3.587     73
   1429.69   3.578     93
   1426.88   3.571    135
   1420.17   3.554     66
    579.35   1.450     53
    577.39   1.445     30
    573.61   1.436     62
    571.90   1.432    172
    566.16   1.417    134
    564.33   1.413    298
    558.72   1.399    173
    556.76   1.394    336
    551.39   1.380    126
    549.19   1.375    263
    543.95   1.362     48
    541.87   1.356    134
    534.55   1.338     34
    392.58   0.983     40
    389.40   0.975     52
    384.89   0.964    509
    377.56   0.945   1000
    375.85   0.941    561
    370.12   0.927    509
    368.41   0.922    929
    361.08   0.904    372
