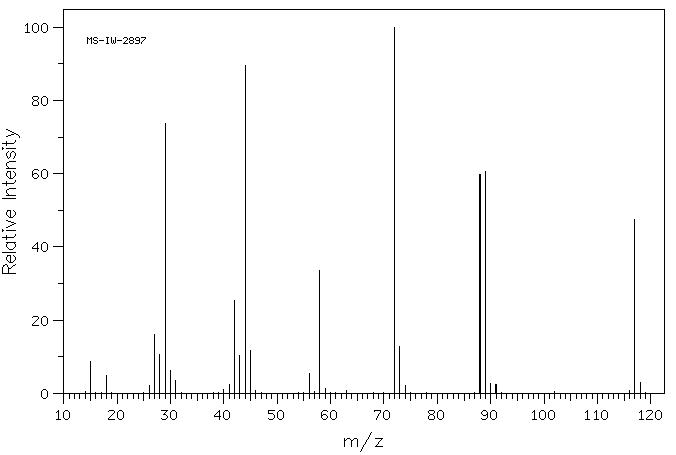

Mass

MS-IW-2897
ethyl dimethylcarbamate
C5H11NO2            (Mass of molecular ion:    117)

   Source Temperature: 220 °C
   Sample Temperature: 160 °C
   Reservoir, 75 eV

      15.0       8.6
      18.0       4.9
      26.0       2.2
      27.0      16.2
      28.0      10.5
      29.0      73.8
      30.0       6.2
      31.0       3.5
      40.0       1.0
      41.0       2.3
      42.0      25.5
      43.0      10.3
      44.0      89.7
      45.0      11.6
      56.0       5.4
      58.0      33.6
      59.0       1.4
      72.0     100.0
      73.0      12.7
      74.0       2.1
      88.0      59.8
      89.0      60.7
      90.0       2.8
      91.0       2.5
     117.0      47.4
     118.0       3.0
