ETHYLENE GLYCOL BIS(MONOCHLOROACETATE)(6941-69-1) IR1
Product NameETHYLENE GLYCOL BIS(MONOCHLOROACETATE)
CAS6941-69-1
Molecular FormulaC6H8Cl2O4
Molecular Weight215.03
InChIInChI=1S/C6H8Cl2O4/c7-3-5(9)11-1-2-12-6(10)4-8/h1-4H2
InChIKey HIIBHBNRMVLLKH-UHFFFAOYSA-N
SmilesC(OC(=O)CCl)COC(=O)CCl
-

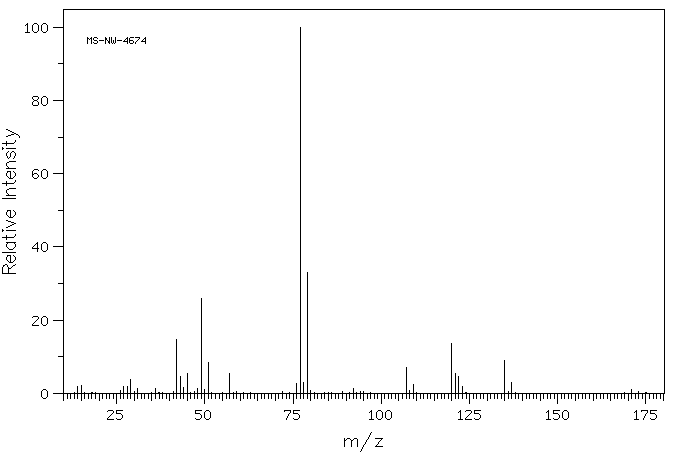

MassMS-NW-4674 ethylene glycol bis(chloroacetate) C6H8Cl2O4 (Mass of molecular ion: 214)
Source Temperature: 250 °C Sample Temperature: 180 °C Reservoir, 75 eV
14.0 1.9 15.0 2.1 27.0 2.0 28.0 1.9 29.0 3.8 31.0 1.4 36.0 1.2 42.0 14.6 43.0 4.5 44.0 1.5 45.0 5.3 48.0 1.3 49.0 25.9 50.0 1.0 51.0 8.5 57.0 5.4 76.0 2.8 77.0 100.0 78.0 3.1 79.0 32.9 92.0 1.2 107.0 7.1 109.0 2.4 120.0 13.5 121.0 5.4 122.0 4.7 123.0 1.8 135.0 9.0 137.0 2.9 171.0 1.0
parameter in CDCl3
90 MHz in CDCl3
-
1H NMR 300 MHz C6 H8 Cl2 O4 0.044 g : 0.5 ml CDCl3 ethylene glycol bis(chloroacetate)
Parameter ppm Hz
D(A) 4.440 D(B) 4.105
Hz ppm Int.1332.00 4.440 1000 1231.50 4.105 1000
-
1H NMR 89.56 MHz C6 H8 Cl2 O4 0.044 g : 0.5 ml CDCl3 ethylene glycol bis(chloroacetate) Assign. Shift(ppm)
A *1 4.440 B *1 4.105
Hz ppm Int.397.63 4.440 822 367.69 4.106 1000
in CDCl3
CCl4 solution

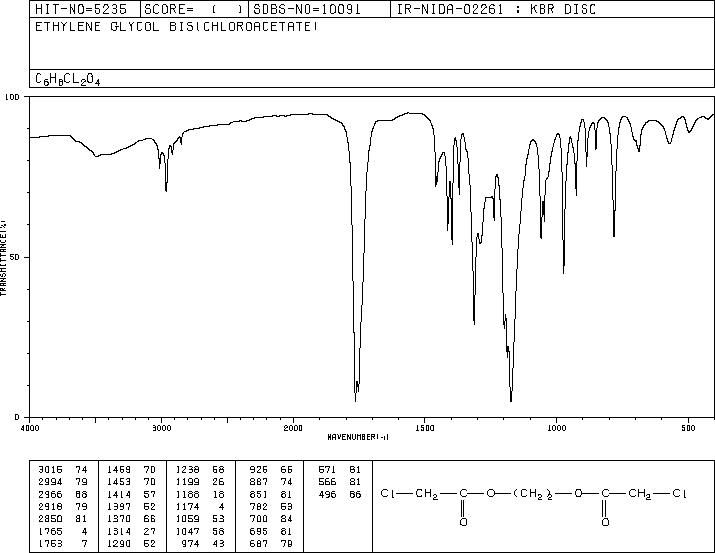

KBr disc
nujol mull
4880 A,200 M,powder
