N,N-DIMETHYLGLYCINE METHYL ESTER(7148-06-3) 1H NMR
Product NameN,N-DIMETHYLGLYCINE METHYL ESTER
CAS7148-06-3
Molecular FormulaC5H11NO2
Molecular Weight117.15
InChIInChI=1S/C5H11NO2/c1-6(2)4-5(7)8-3/h4H2,1-3H3
InChIKey LRZFEBJUJIQVDQ-UHFFFAOYSA-N
SmilesC(OC)(=O)CN(C)C
-

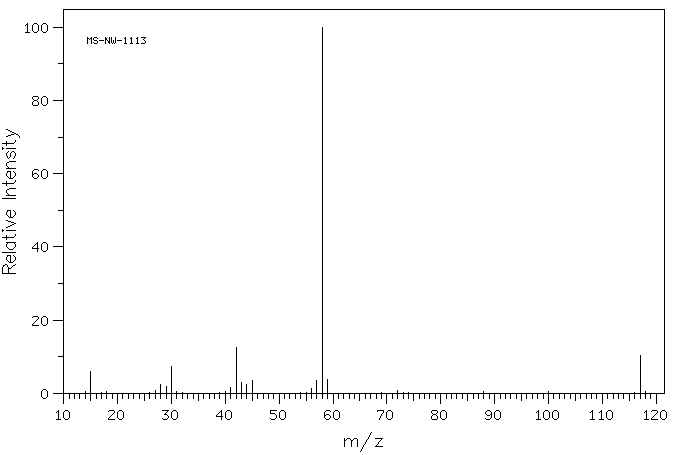

MassMS-NW-1113 N,N-dimethylglycine methyl ester C5H11NO2 (Mass of molecular ion: 117)
Source Temperature: 240 °C Sample Temperature: 170 °C Reservoir, 75 eV
15.0 5.9 28.0 2.4 29.0 2.0 30.0 7.3 41.0 1.7 42.0 12.4 43.0 2.9 44.0 2.3 45.0 3.4 56.0 1.3 57.0 3.5 58.0 100.0 59.0 3.7 117.0 10.3

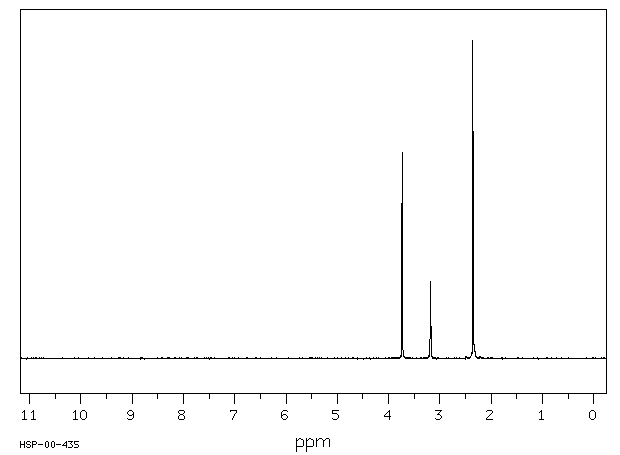

90 MHz in CDCl3
-
1H NMR 89.56 MHz C5 H11 N O2 0.04 ml : 0.5 ml CDCl3 N,N-dimethylglycine methyl ester
Assign. Shift(ppm)
A 3.734 B 3.179 C 2.354
Hz ppm Int.334.44 3.735 648 284.75 3.180 243 210.81 2.354 1000
in CDCl3

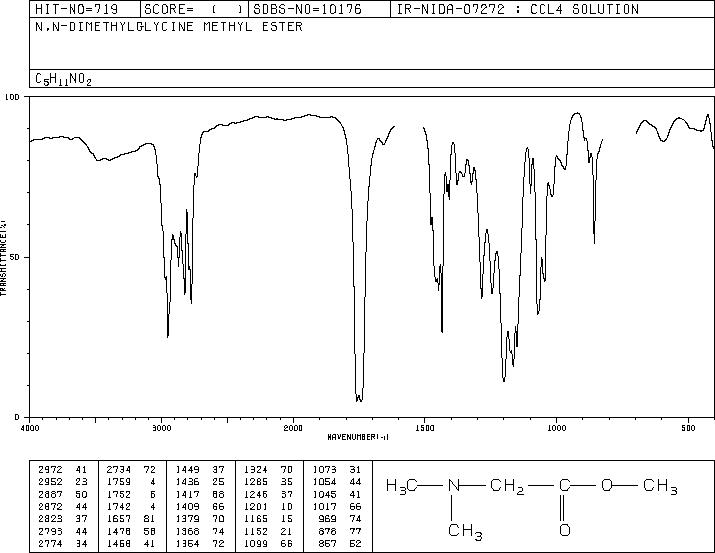

CCl4 solution

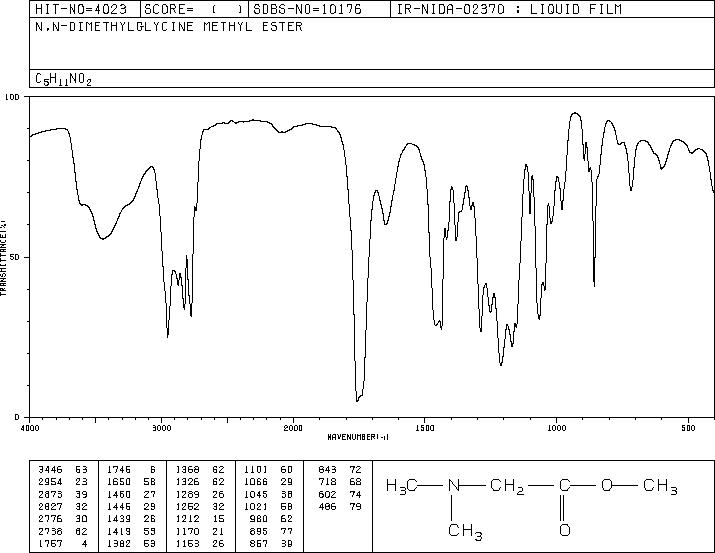

liquid film
