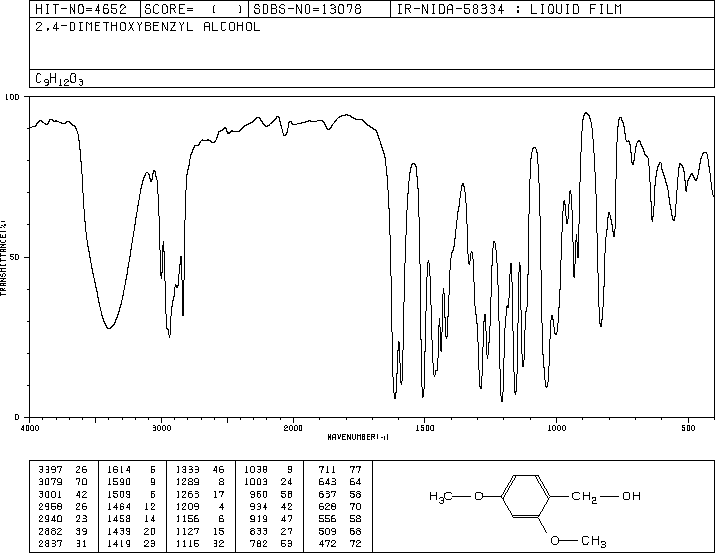

2,4-Dimethoxybenzyl alcohol(7314-44-5) IR1
Product Name2,4-Dimethoxybenzyl alcohol
CAS7314-44-5
Molecular FormulaC9H12O3
Molecular Weight168.19
InChIInChI=1S/C9H12O3/c1-11-8-4-3-7(6-10)9(5-8)12-2/h3-5,10H,6H2,1-2H3
InChIKey RNKOUSCCPHSCFE-UHFFFAOYSA-N
SmilesC1(CO)=CC=C(OC)C=C1OC
-
MassMS-NW-7380 2,4-dimethoxybenzyl alcohol C9H12O3 (Mass of molecular ion: 168)
Source Temperature: 100 °C Sample Temperature: 80 °C Direct, 75 eV
15.0 1.4 27.0 1.7 29.0 2.0 31.0 1.6 38.0 1.8 39.0 8.2 40.0 1.2 41.0 2.7 43.0 1.3 50.0 3.6 51.0 7.2 52.0 3.2 53.0 3.7 55.0 2.5 59.0 1.1 62.0 2.3 63.0 6.8 64.0 4.6 65.0 12.2 66.0 3.3 67.0 1.3 68.0 1.0 69.0 4.0 74.0 1.6 75.0 1.3 76.0 1.9 77.0 14.1 78.0 5.8 79.0 5.1 80.0 1.0 81.0 2.5 82.0 1.6 91.0 8.5 92.0 6.4 93.0 4.2 94.0 4.2 95.0 2.3 96.0 1.9 105.0 2.1 106.0 2.7 107.0 9.2 108.0 6.0 109.0 7.0 110.0 3.3 119.0 2.2 120.0 1.4 121.0 29.9 122.0 4.8 123.0 1.1 124.0 7.2 125.0 6.2 135.0 18.4 136.0 8.4 137.0 32.7 138.0 4.1 139.0 23.7 140.0 5.7 149.0 4.3 150.0 2.2 151.0 58.9 152.0 11.2 153.0 12.2 154.0 1.3 165.0 4.3 167.0 61.5 168.0 100.0 169.0 10.1 170.0 1.0
90 MHz in CDCl3
-
1H NMR 89.56 MHz C9 H12 O3 0.047 g : 0.5 ml CDCl3 2,4-dimethoxybenzyl alcohol
Assign. Shift(ppm)
A 7.152 B 6.46 C 6.44 D 4.592 E *1 3.813 F *1 3.788 G 2.28
Hz ppm Int.645.74 7.211 55 645.31 7.206 57 636.77 7.110 79 581.91 6.498 23 579.43 6.470 166 576.78 6.441 84 572.94 6.398 75 570.54 6.371 33 411.27 4.593 283 341.54 3.814 817 339.23 3.788 1000 204.57 2.285 44
in CDCl3
liquid film
