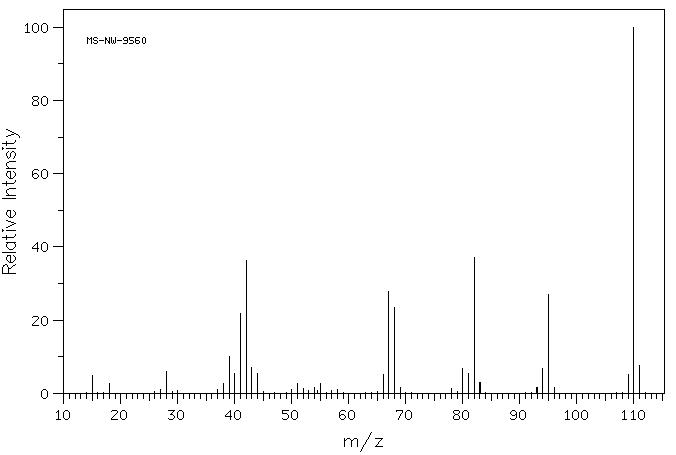

Mass

MS-NW-9560
1-(dimethylamino)pyrrole
C6H10N2             (Mass of molecular ion:    110)

   Source Temperature: 240 °C
   Sample Temperature: 150 °C
   Reservoir, 75 eV

      15.0       4.8
      18.0       2.6
      27.0       1.0
      28.0       6.1
      37.0       1.1
      38.0       2.8
      39.0      10.0
      40.0       5.3
      41.0      21.8
      42.0      36.4
      43.0       7.2
      44.0       5.5
      50.0       1.1
      51.0       2.8
      52.0       1.3
      54.0       1.7
      55.0       2.8
      58.0       1.0
      66.0       5.2
      67.0      27.9
      68.0      23.5
      69.0       1.7
      78.0       1.3
      80.0       6.9
      81.0       5.5
      82.0      37.0
      83.0       2.9
      93.0       1.7
      94.0       6.9
      95.0      27.0
      96.0       1.7
     109.0       5.2
     110.0     100.0
     111.0       7.6

Assign. Shift(ppm) A 6.825 B 6.035 C 2.796

     Hz     ppm     Int.

    613.63   6.852    116
    611.38   6.827    187
    609.00   6.800    115
    542.69   6.060    119
    540.44   6.035    172
    538.13   6.009     94
    250.44   2.797   1000
